05036OT3G324JP WEG AC Motors
Part#:05036OT3G324JP
Manufacturer:WEG
Alt. Part#:7890355919064
Product Lifecycle:Active
Get a quick Quote!

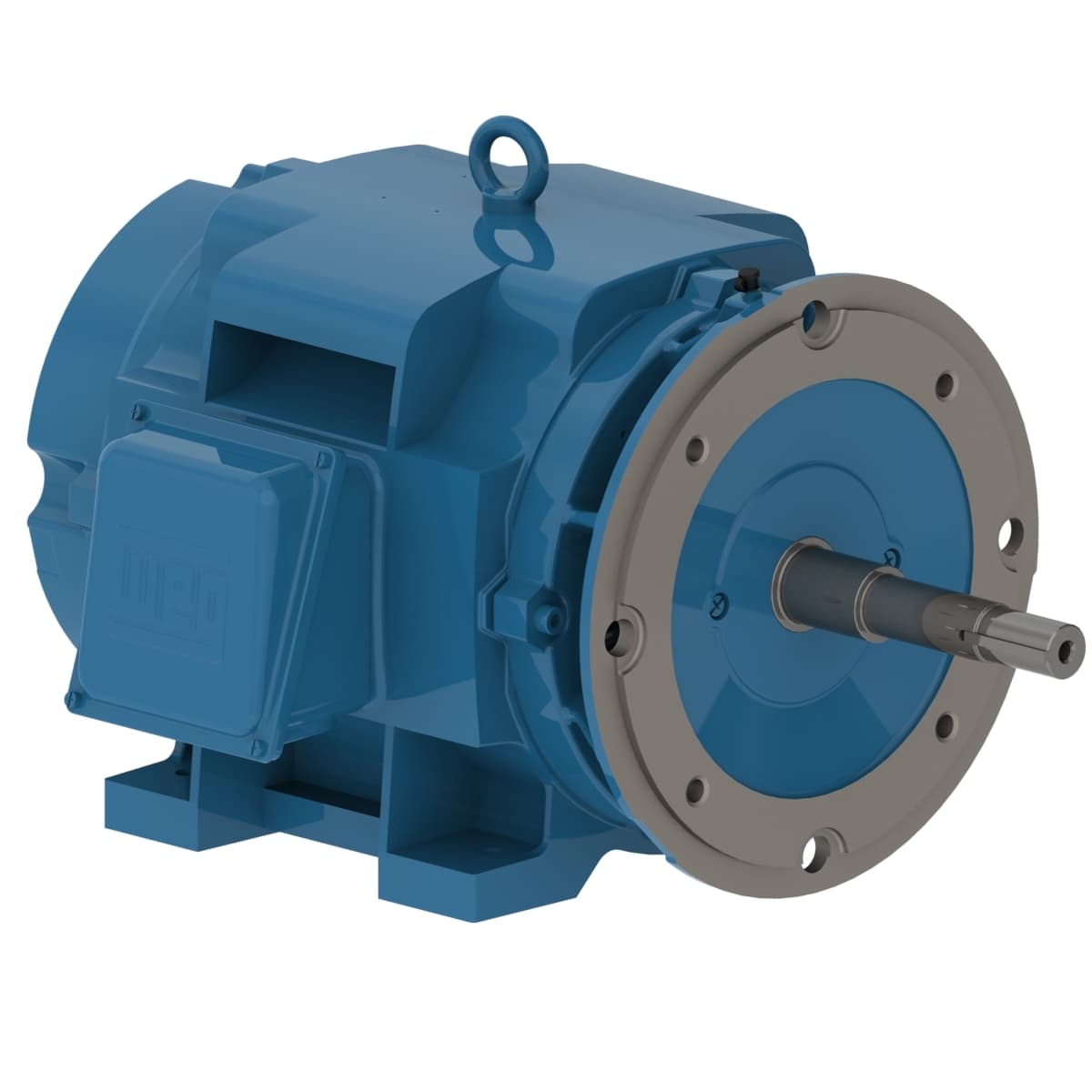

Close Coupled Pump NEMA Premium Efficiency 50 HP 2P 324JP 3Ph 460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 05036OT3G324JP WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating50 HP
- Rated Speed3565 rpm
- Number of Poles2 Pole
- Voltage460 V
- Flange TypeC
- Rated current 59.1 A
- Design B
- Altitude 1000 m.a.s.l.
- Flange C
- L. R. Amperes 378 A
- Locked rotor time 50s (cold) 28s (hot)
- Mounting F-1
- Terminal box¹ Left position
- Frequency 60 Hz
- No load current 20.5 A
- Enclosure IC01 - ODP
- Voltage 460 V
- Rated voltage 460 V
- Breakdown torque 240 %
- Degree of Protection IP23
- Number of poles 2
- LRC 6.4x(Code G)
- Moment of inertia (J) 3.83 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Output 50 HP (37 kW)
- Rated torque 73.7 ft.lb
- Starting Method Direct On Line
- Synchronous speed 3600 rpm
- Frame 324JP
- Number of Poles 2
- Locked rotor torque 229 %
- Insulation Class F
- Duty Cycle Cont.(S1)
- Ambient temperature -20°C to +40°C
- Noise level² 74.0 dB(A)
- Output rating 50 HP
- Rated speed 3565 rpm
- Service factor 1.15
- Standard NEMA MG-1
- Slip 0.97 %
- Temperature rise 80 K
- Approx. weight³ 491 lb
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 05036OT3G324JP Specs
1-year warranty
