05036OT3H324JMV-W40 WEG AC Motors
Part#:05036OT3H324JMV-W40
Manufacturer:WEG
Alt. Part#:7909522293040
Product Lifecycle:Active
Get a quick Quote!

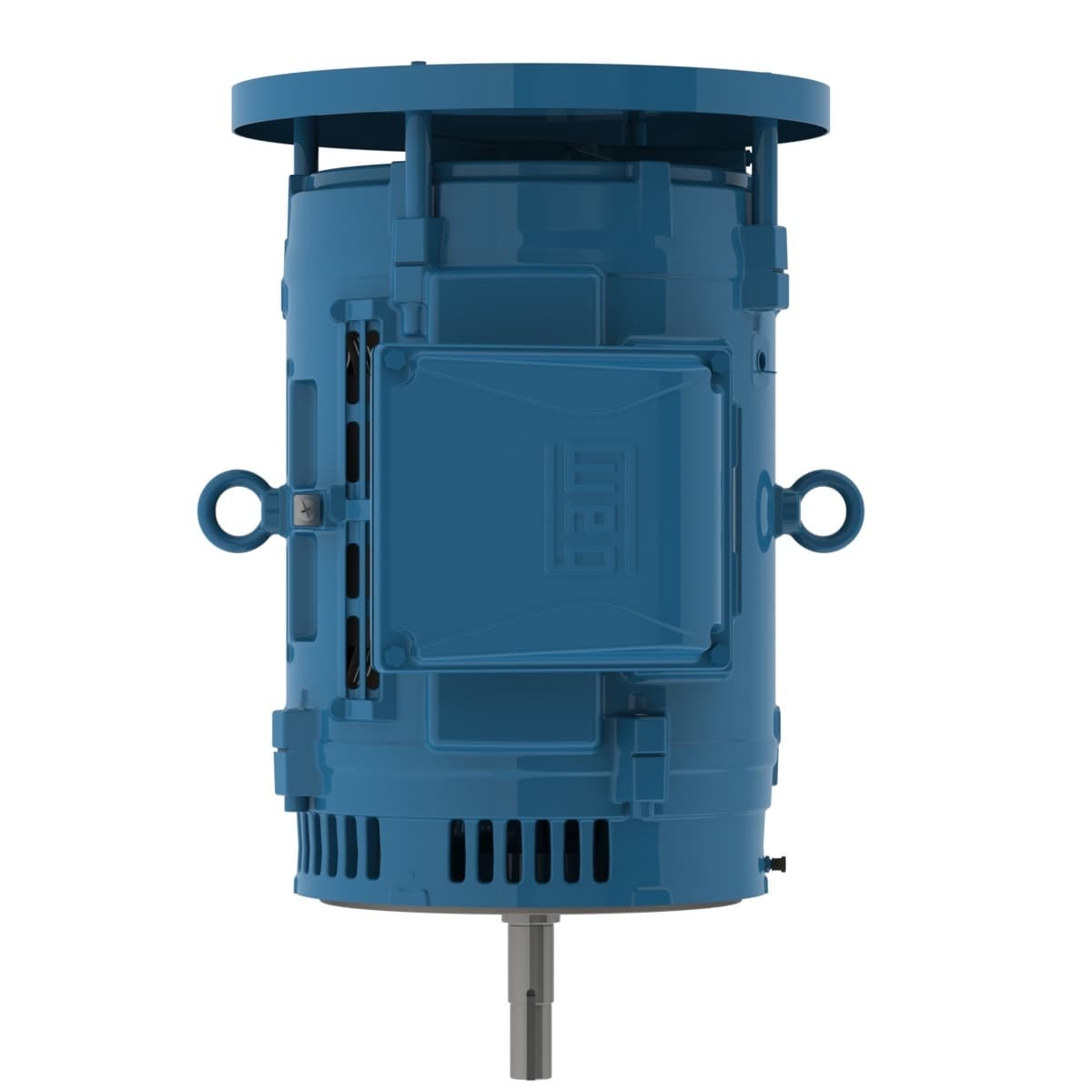

W40 JM Pump NEMA Premium Efficiency 50 HP 2P 324/6JM 3Ph 575 V 60 Hz IC01 - ODP - Footless
Check out the 05036OT3H324JMV-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating50 HP
- Rated Speed3555 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeC
- L. R. Amperes 300 A
- Breakdown torque 220 %
- Mounting W-6
- Number of poles 2
- Rated current 47.6 A
- Design B
- Noise level² 75.0 dB(A)
- Number of Poles 2
- Locked rotor torque 200 %
- Starting Method Direct On Line
- Voltage 575 V
- Output 50 HP (37 kW)
- No load current 15.6 A
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- LRC 6.3x(Code G)
- Approx. weight³ 440 lb
- Rotation¹ Both (CW and CCW)
- Frame 324/6JM
- Service factor 1.25
- Altitude 1000 m.a.s.l.
- Synchronous speed 3600 rpm
- Frequency 60 Hz
- Insulation Class F
- Duty Cycle Cont.(S1)
- Terminal box¹ Left position
- Slip 1.25 %
- Temperature rise 80 K
- Rated speed 3555 rpm
- Moment of inertia (J) 3.02 sq.ft.lb
- Enclosure IC01 - ODP
- Output rating 50 HP
- Rated voltage 575 V
- Rated torque 73.9 ft.lb
- Locked rotor time 25s (cold) 14s (hot)
- Degree of Protection IP23
- Flange C
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 05036OT3H324JMV-W40 Specs
1-year warranty
