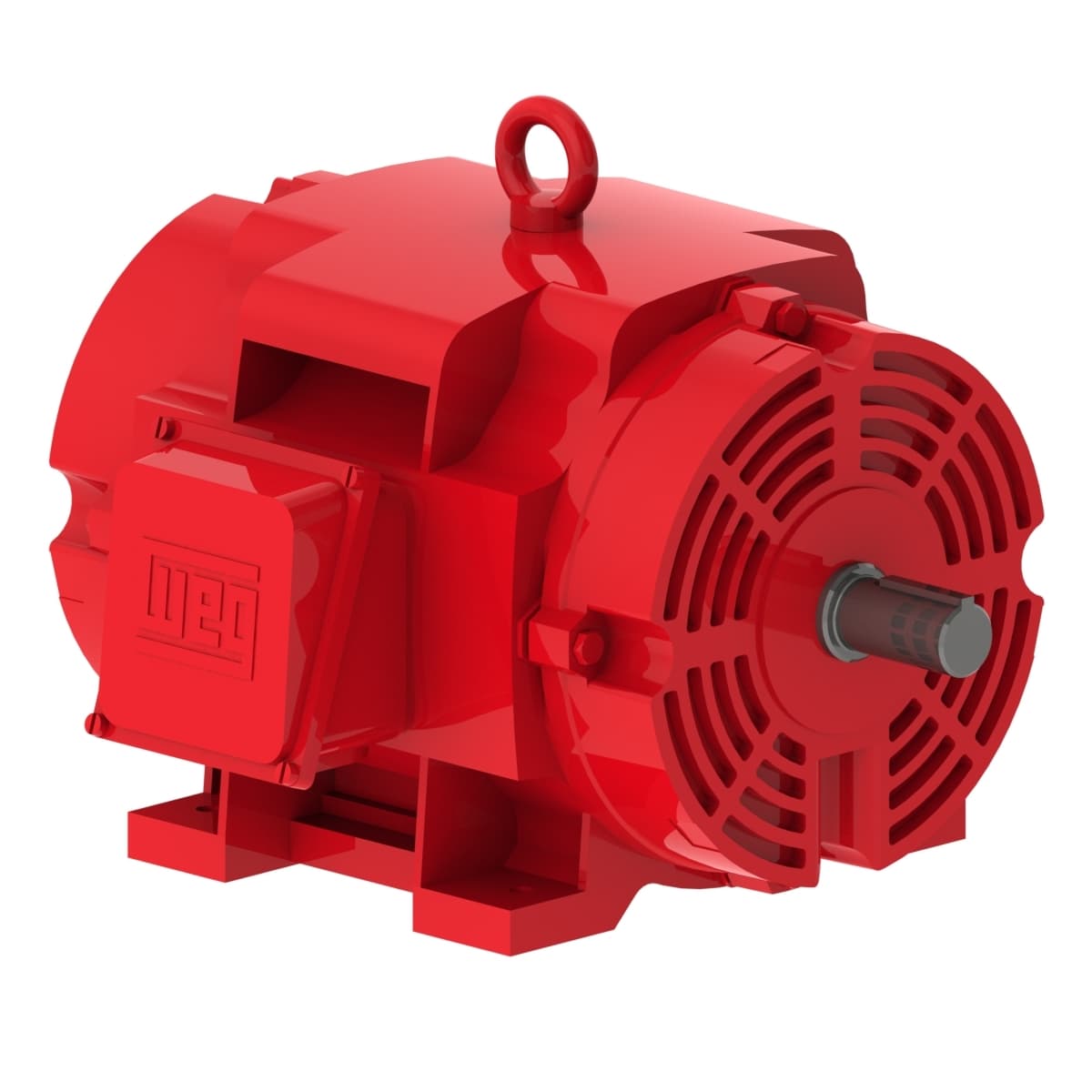

05036OP3VFP324TS WEG AC Motors
Part#:05036OP3VFP324TS
Manufacturer:WEG
Alt. Part#:7909018948720
Product Lifecycle:Active
Get a quick Quote!
ODP High Efficiency 50 HP 2P 324TS 3Ph 200/400 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 05036OP3VFP324TS WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating50 HP
- Rated Speed3560 rpm
- Number of Poles2 Pole
- Voltage200/400 V
- Flange TypeWithout
- Slip 1.11 %
- Moment of inertia (J) 3.30 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Approx. weight³ 452 lb
- Breakdown torque 220 %
- Noise level² 74.0 dB(A)
- Rated current 134/67.2 A
- LRC 6.2x(Code G)
- Insulation Class F
- Service factor 1.15
- Synchronous speed 3600 rpm
- Output 50 HP (37 kW)
- Rated torque 73.8 ft.lb
- Enclosure IC01 - ODP
- Number of poles 2
- Rated voltage 200/400 V
- Number of Poles 2
- Temperature rise 80 K
- Duty Cycle Cont.(S1)
- Flange Without
- Frame 324TS
- Mounting F-1
- Terminal box¹ Left position
- Frequency 60 Hz
- Design B
- Starting Method Direct On Line
- Voltage 200/400 V
- Rated speed 3560 rpm
- Locked rotor time 50s (cold) 28s (hot)
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- Locked rotor torque 240 %
- Rotation¹ Both (CW and CCW)
- Output rating 50 HP
- L. R. Amperes 833/416 A
- No load current 34.5/17.3 A
- Degree of Protection IP23
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 05036OP3VFP324TS Specs
