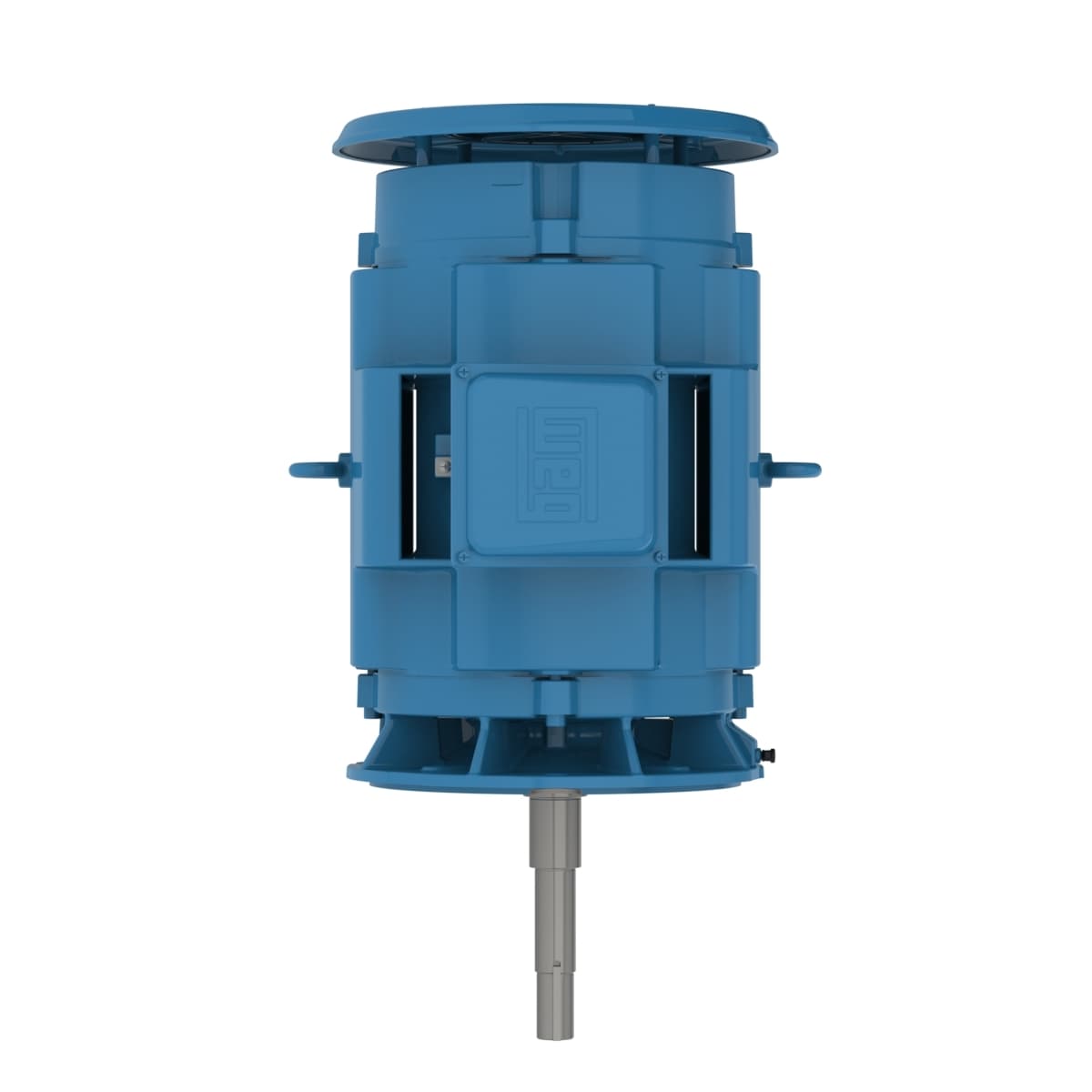

05036OT3H324JPV WEG AC Motors
Part#:05036OT3H324JPV
Manufacturer:WEG
Alt. Part#:7909322204918
Product Lifecycle:Active
Get a quick Quote!
Close Coupled Pump NEMA Premium Efficiency 50 HP 2P 324JP 3Ph 575 V 60 Hz IC01 - ODP - Footless
Check out the 05036OT3H324JPV WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating50 HP
- Rated Speed3565 rpm
- Number of Poles2 Pole
- Voltage575 V
- Flange TypeC
- Rated speed 3565 rpm
- Locked rotor time 50s (cold) 28s (hot)
- Degree of Protection IP23
- Number of poles 2
- Number of Poles 2
- Service factor 1.15
- Approx. weight³ 488 lb
- Output 50 HP (37 kW)
- LRC 6.4x(Code G)
- Enclosure IC01 - ODP
- Output rating 50 HP
- Frame 324JP
- Breakdown torque 240 %
- Mounting W-6
- Flange C
- Rated voltage 575 V
- Rated torque 73.7 ft.lb
- Starting Method Direct On Line
- Synchronous speed 3600 rpm
- L. R. Amperes 303 A
- Moment of inertia (J) 3.83 sq.ft.lb
- Noise level² 74.0 dB(A)
- Slip 0.97 %
- Design B
- Ambient temperature -20°C to +40°C
- Voltage 575 V
- Frequency 60 Hz
- Locked rotor torque 229 %
- Insulation Class F
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- Rated current 47.3 A
- Duty Cycle Cont.(S1)
- Altitude 1000 m.a.s.l.
- No load current 16.4 A
- Temperature rise 80 K
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 05036OT3H324JPV Specs
1-year warranty
