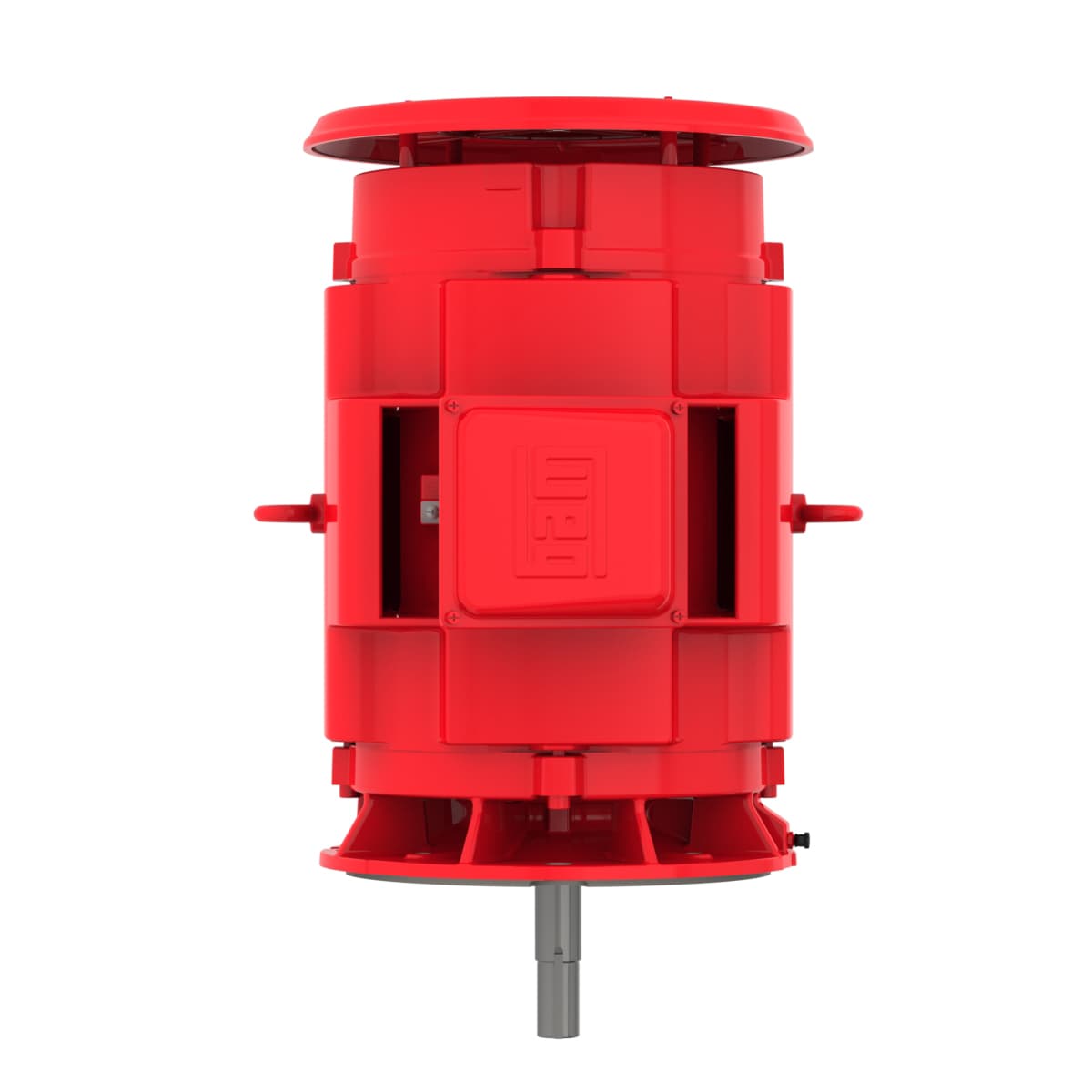

05036OP3VFP324JMV WEG AC Motors
Part#:05036OP3VFP324JMV
Manufacturer:WEG
Alt. Part#:7909322397412
Product Lifecycle:Active
Get a quick Quote!
Close Coupled Pump High Efficiency 50 HP 2P 324JM 3Ph 200/400 V 60 Hz IC01 - ODP - Footless
Check out the 05036OP3VFP324JMV WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating50 HP
- Rated Speed3560 rpm
- Number of Poles2 Pole
- Voltage200/400 V
- Flange TypeC
- Frequency 60 Hz
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Output 50 HP (37 kW)
- Breakdown torque 220 %
- Ambient temperature -20°C to +40°C
- Synchronous speed 3600 rpm
- L. R. Amperes 833/416 A
- Locked rotor torque 240 %
- Service factor 1.15
- Voltage 200/400 V
- Rated voltage 200/400 V
- Moment of inertia (J) 3.30 sq.ft.lb
- Enclosure IC01 - ODP
- Output rating 50 HP
- Terminal box¹ Left position
- Number of Poles 2
- Starting Method Direct On Line
- Number of poles 2
- Rated current 134/67.2 A
- Insulation Class F
- Mounting W-6
- LRC 6.2x(Code G)
- Design B
- Standard NEMA MG-1
- Rated speed 3560 rpm
- Rated torque 73.8 ft.lb
- Duty Cycle Cont.(S1)
- Approx. weight³ 459 lb
- Frame 324JM
- Locked rotor time 50s (cold) 28s (hot)
- Noise level² 74.0 dB(A)
- Slip 1.11 %
- No load current 34.5/17.3 A
- Altitude 1000 m.a.s.l.
- Degree of Protection IP23
- Flange C
