05030OP3OFP324TS-W40 WEG AC Motors
Part#:05030OP3OFP324TS-W40
Manufacturer:WEG
Alt. Part#:7909712324394
Product Lifecycle:Active
Get a quick Quote!

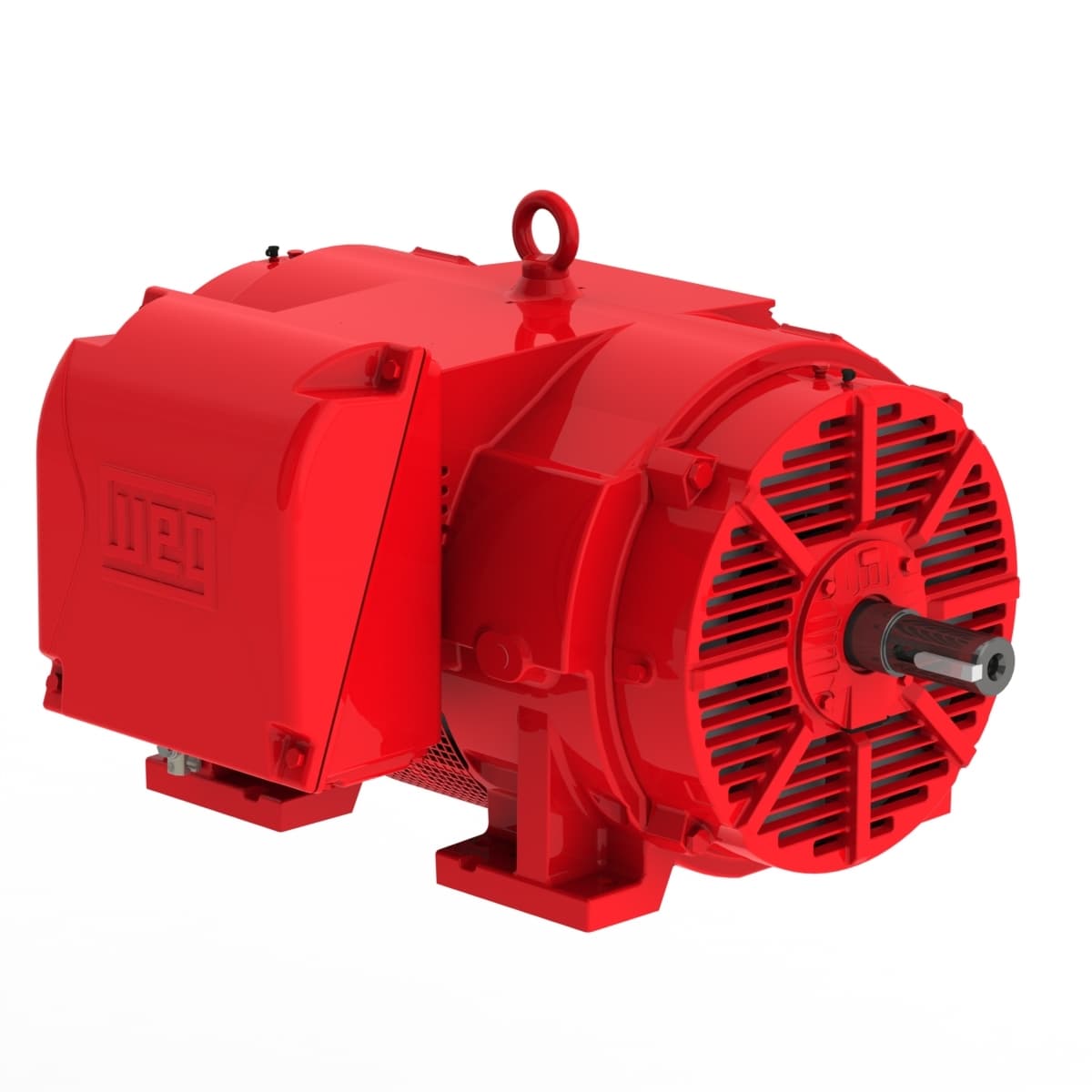

W40 High Efficiency 50 HP 2P 324/6TS 3Ph 380-400-415 V 50 Hz IC01 - ODP - Foot-mounted
Check out the 05030OP3OFP324TS-W40 WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating50 HP
- Rated Speed2955 rpm
- Number of Poles2 Pole
- Voltage380 V
- Flange TypeWithout
- Rated voltage 380 V
- No load current 20.0 A
- Altitude 1000 m.a.s.l.
- Flange Without
- Frame 324/6TS
- LRC 5.9x(Code F)
- Moment of inertia (J) 4.02 sq.ft.lb
- Enclosure IC01 - ODP
- Synchronous speed 3000 rpm
- Temperature rise 70 K
- Number of Poles 2
- L. R. Amperes 417 A
- Ambient temperature -20°C to +50°C
- Standard NEMA MG-1
- Rated speed 2955 rpm
- Locked rotor torque 250 %
- Design B
- Approx. weight³ 485 lb
- Duty Cycle Cont.(S1)
- Number of poles 2
- Rated current 70.7 A
- Breakdown torque 200 %
- Mounting F-1
- Terminal box¹ Left position
- Rated torque 88.9 ft.lb
- Insulation Class F
- Voltage 380-400-415 V
- Output 50 HP (37 kW)
- Slip 1.50 %
- Locked rotor time 32s (cold) 18s (hot)
- Starting Method Direct On Line
- Rotation¹ Both (CW and CCW)
- Output rating 50 HP
- Frequency 50 Hz
- Service factor 1.15
- Degree of Protection IP23
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
