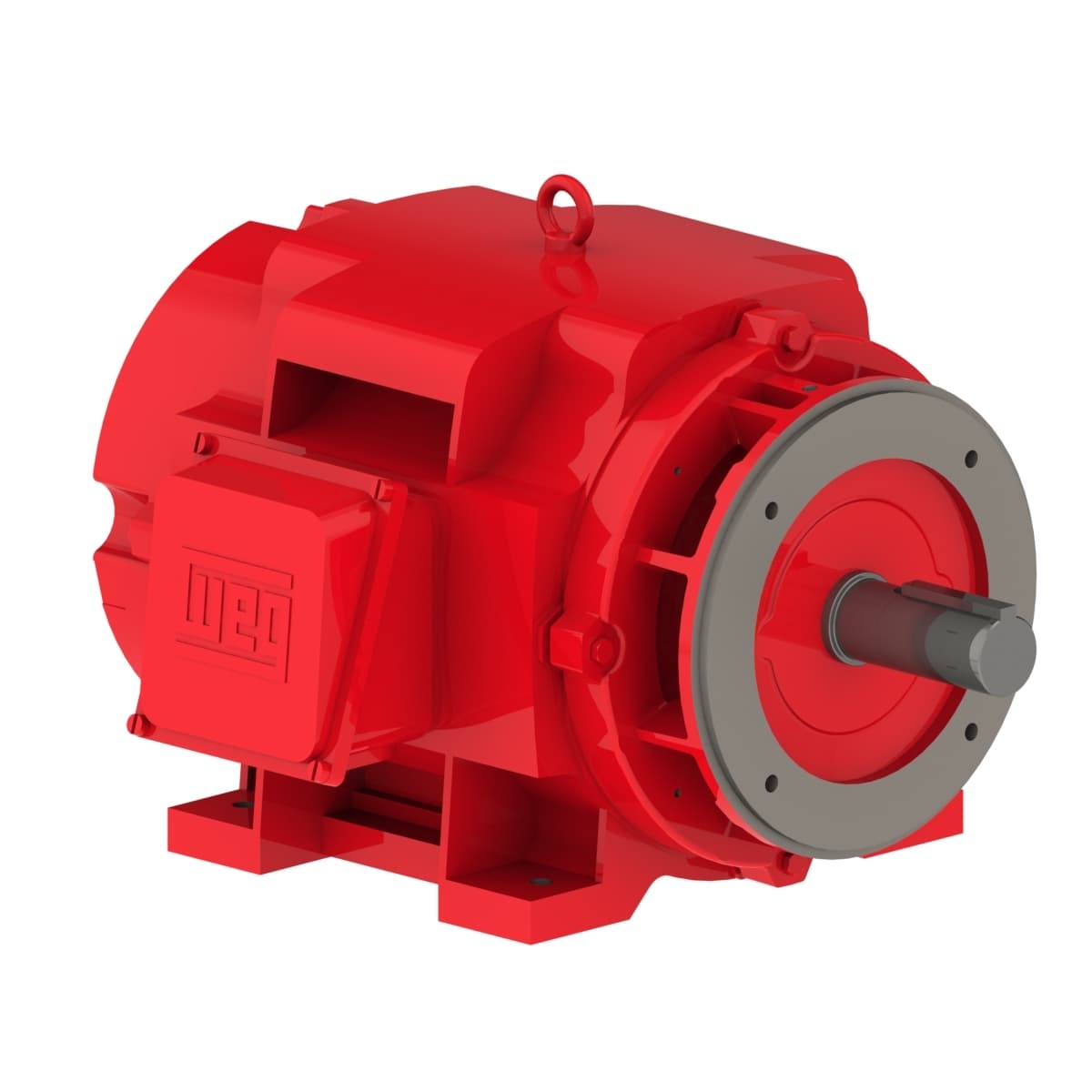

05036OP3EFP324TSC WEG AC Motors
Part#:05036OP3EFP324TSC
Manufacturer:WEG
Alt. Part#:7891327983885
Product Lifecycle:Active
Get a quick Quote!
ODP High Efficiency 50 HP 2P 324TSC 3Ph 230/460 V 60 Hz IC01 - ODP - Foot-mounted
Check out the 05036OP3EFP324TSC WEG price in the box on the right side or send a quick quote.
Product Details
- Output Rating50 HP
- Rated Speed3560 rpm
- Number of Poles2 Pole
- Voltage230/460 V
- Flange TypeC
- Frequency 60 Hz
- No load current 30.0/15.0 A
- Degree of Protection IP23
- Noise level² 74.0 dB(A)
- L. R. Amperes 724/362 A
- Output 50 HP (37 kW)
- LRC 6.2x(Code G)
- Starting Method Direct On Line
- Approx. weight³ 463 lb
- Terminal box¹ Left position
- Rated speed 3560 rpm
- Design B
- Output rating 50 HP
- Flange C
- Number of Poles 2
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Rated current 117/58.4 A
- Locked rotor torque 240 %
- Rated voltage 230/460 V
- Rated torque 73.8 ft.lb
- Enclosure IC01 - ODP
- Number of poles 2
- Frame 324TSC
- Breakdown torque 220 %
- Temperature rise 80 K
- Synchronous speed 3600 rpm
- Slip 1.11 %
- Locked rotor time 50s (cold) 28s (hot)
- Duty Cycle Cont.(S1)
- Mounting F-1
- Rotation¹ Both (CW and CCW)
- Moment of inertia (J) 3.30 sq.ft.lb
- Ambient temperature -20°C to +40°C
- Voltage 230/460 V
- Service factor 1.15
- Standard NEMA MG-1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 05036OP3EFP324TSC Specs
1-year warranty
