AES 1136 Schmersal Electronic Components
Part#:AES 1136
Manufacturer:Schmersal
Alt. Part#:101170038
Product Lifecycle:Active
Get a quick Quote!

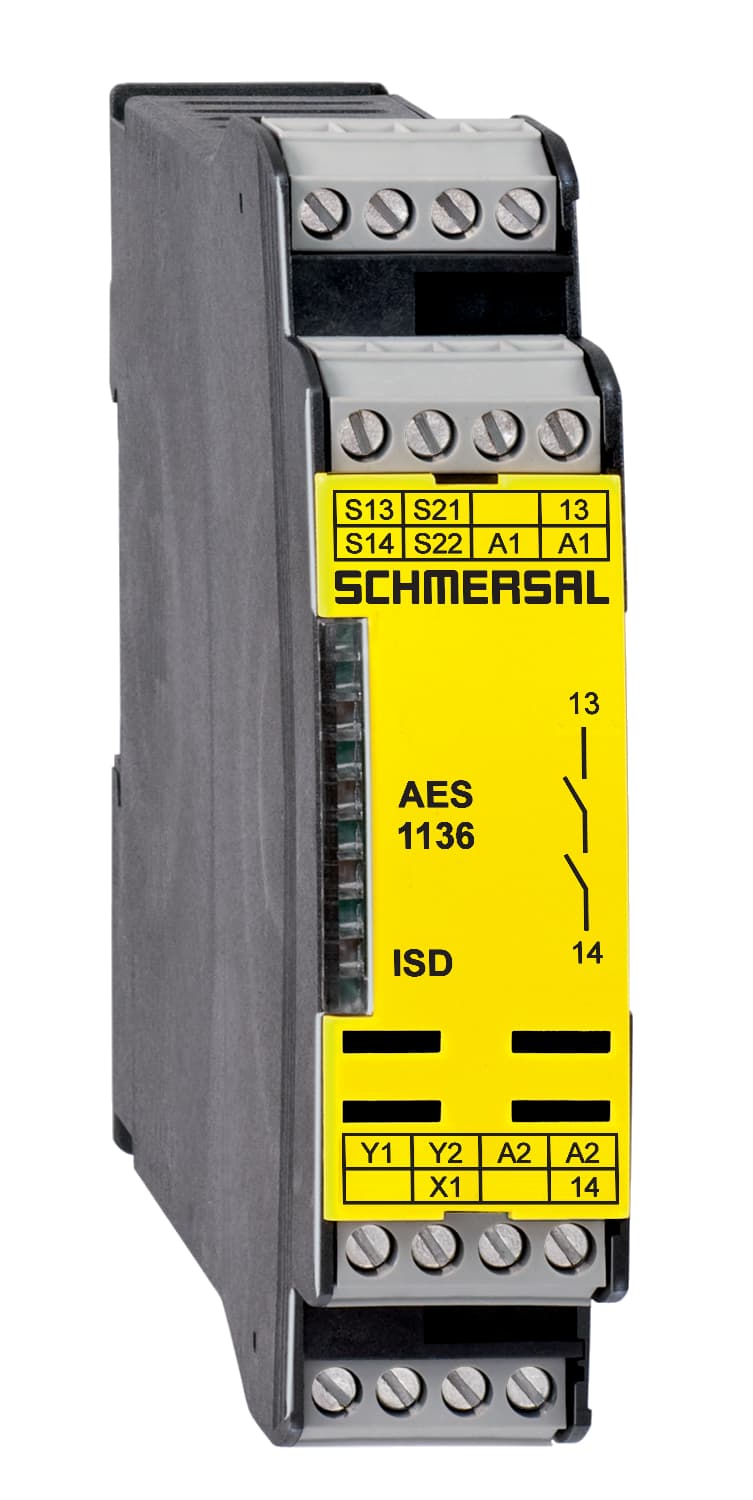

Safety-monitoring modules; Stop category 0; Monitoring of BNS range magnetic safety sensors; 1 safety contact, STOP 0; 2 Signalling outputs
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the AES 1136 Schmersal price in the box on the right side or send a quick quote.
Product Details
- Short-circuit recognition Yes
- Number of openers 2
- Number of signalling outputs 2
- Degree of protection of the mounting space IP54
- Overvoltage category III
- Rated control voltage at AC 60 Hz, maximum 26.4 VAC
- Contact resistance, maximum 0.1 Ω
- Current, Utilisation category AC-15 6 A
- Current, Utilisation category DC12 0.1 A
- Enclosure material Glass-fibre reinforced thermoplastic, ventilated
- Start-up test Yes
- Height 100 mm
- Ambient temperature, minimum +0 °C
- Degree of pollution to IEC/EN 60664-1 2
- Rated control voltage at DC, maximum 28.8 VDC
- Automatic reset function Yes
- Number of LEDs 1
- Mounting Snaps onto standard DIN rail to EN 60715
- Depth 121 mm
- Resistance to vibrations to EN 60068-2-6 10...55 Hz, Amplitude 0.35 mm, ± 15 %
- Frequency range 50 Hz, 60 Hz
- Electrical power consumption 5 W
- Current, Utilisation category DC13 6 A
- Voltage, Utilisation category DC12 24 VDC
- Climatic stress EN 60068-2-3, BG-GS-ET-14
- Number of undelayed semi-conductor outputs with signaling function 2
- Tightening torque of Clips 0.6 Nm
- Storage and transport temperature, minimum -25 °C
- Wire breakage detection Yes
- Standards IEC/EN 60204-1, IEC 60947-5-3, BG-GS-ET-14
- Stop-Category 0
- Material of the contacts, electrical Ag-Ni 10 and 0.2 µm gold-plated
- Integral System Diagnostics, status Yes
- Terminal designations IEC/EN 60947-1
- Cable section, maximum 2.5 mm²
- Rated operating voltage 24 VAC -15% / +10%, 24 VDC -10%/+20%, residual ripple max. 10%
- Drop-out delay in case of power failure, typically 80 ms
- Voltage, Utilisation category AC15 230 VAC
- Width 22.5 mm
- Storage and transport temperature, maximum +70 °C
- Rated AC voltage for controls, 50 Hz, minimum 20.4 VAC
- Switching capacity, minimum 10 VDC
- Earth connection detection Yes
- Mechanical life, minimum 20,000,000 Operations
- Rated AC voltage for controls at DC minimum 20.4 VDC
- Pull-in delay at automatic start, maximum, typically 100 ms
- Gross weight 155 g
- Degree of protection of the enclosure IP40
- Rated AC voltage for controls, 60 Hz, minimum 20.4 VAC
- Voltage, Utilisation category DC13 24 VDC
- EMC rating EMC-Directive
- Number of safety contacts 1
- Ambient temperature, maximum +55 °C
- Thermal test current 6 A
- Terminal Connector Screw connection, rigid or flexible
- Degree of protection of clips or terminals IP20
- Restistance to shock 30 g / 11 ms
- Rated control voltage at AC 50 Hz, maximum 26.4 VAC
- Note (Contact resistance) in new state
- Pull-in delay at RESET, typically 20 ms
- Input signal, LOW Signal 0 0 … 2 VDC
- Number of shutters 1
- Cable section, minimum 0.25 mm²
- Rated impulse withstand voltage Uimp 4 kV
- Drop-out delay in case of emergency, typically 20 ms
- Input signal, HIGH Signal 1 10 … 30 VDC
- Switching capacity, maximum 2 A
- Conduction resistance, maximum 40 Ω
