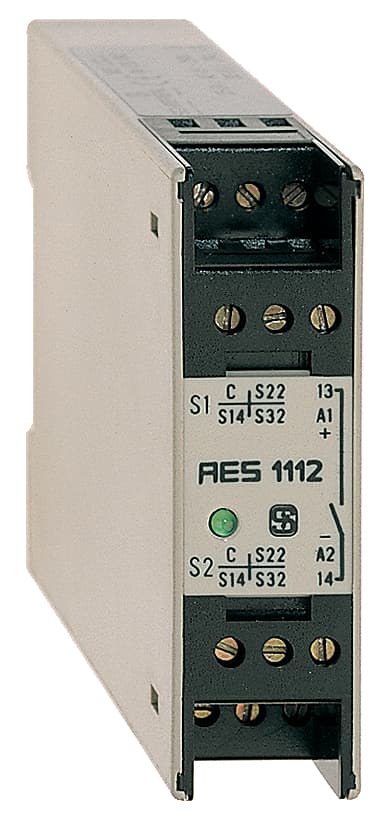

AES 1112 24 VDC Schmersal Electronic Components
Part#:AES 1112 24 VDC
Manufacturer:Schmersal
Alt. Part#:101128982
Product Lifecycle:Active
Get a quick Quote!
Safety-monitoring modules; Stop category 0; Monitoring of BNS range magnetic safety sensors; 1 safety contact, STOP 0
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the AES 1112 24 VDC Schmersal price in the box on the right side or send a quick quote.
Product Details
- Enclosure material Glass-fibre reinforced thermoplastic, ventilated
- Number of safety contacts 1
- Number of openers 2
- Restistance to shock 30 g / 11 ms
- Rated AC voltage for controls at DC minimum 20.4 VDC
- Current, Utilisation category AC-15 3 A
- Voltage, Utilisation category DC12 24 VDC
- Wire breakage detection Yes
- Integral System Diagnostics, status Yes
- Degree of protection of the enclosure IP40
- Storage and transport temperature, maximum +70 °C
- Degree of pollution to IEC/EN 60664-1 2
- Stop-Category 0
- Cable section, maximum 2.5 mm²
- Terminal Connector Screw connection, rigid or flexible
- Ambient temperature, minimum +0 °C
- Overvoltage category III
- Gross weight 122 g
- Climatic stress EN 60068-2-3, BG-GS-ET-14
- Number of LEDs 1
- Terminal designations IEC/EN 60947-1
- Depth 110 mm
- Width 22.5 mm
- Storage and transport temperature, minimum -25 °C
- Standards IEC/EN 60204-1, IEC 60947-5-3, BG-GS-ET-14
- Mechanical life, minimum 10,000,000 Operations
- Material of the contacts, electrical AgCdO
- Degree of protection of clips or terminals IP20
- Frequency range 50 Hz, 60 Hz
- Drop-out delay in case of power failure, typically 80 ms
- Automatic reset function Yes
- Mounting Snaps onto standard DIN rail to EN 60715
- Tightening torque of Clips 0.6 Nm
- Degree of protection of the mounting space IP54
- Resistance to vibrations to EN 60068-2-6 10...55 Hz, Amplitude 0.35 mm, ± 15 %
- Rated control voltage at DC, maximum 27.6 VDC
- Voltage, Utilisation category AC15 230 VAC
- Ambient temperature, maximum +55 °C
- Drop-out delay in case of emergency, typically 20 ms
- Reset after disconnection of supply voltage Yes
- Number of shutters 1
- Height 75 mm
- Rated impulse withstand voltage Uimp 4 kV
- Contact resistance, maximum 0.1 Ω
- Switching capacity, minimum 10 VDC
- Electrical power consumption 2.4 W
- EMC rating EMC-Directive
- Rated operating voltage 24 VDC ± 15 %
- Pull-in delay at RESET, typically 20 ms
- Current, Utilisation category DC13 2 A
- Current, Utilisation category DC12 0.1 A
- Note (Contact resistance) in new state
- Conduction resistance, maximum 40 Ω
- Pull-in delay at automatic start, maximum, typically 100 ms
- Switching capacity, maximum 2 A
- Thermal test current 4 A
- Voltage, Utilisation category DC13 24 VDC
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents AES 1112 24 VDC Specs
