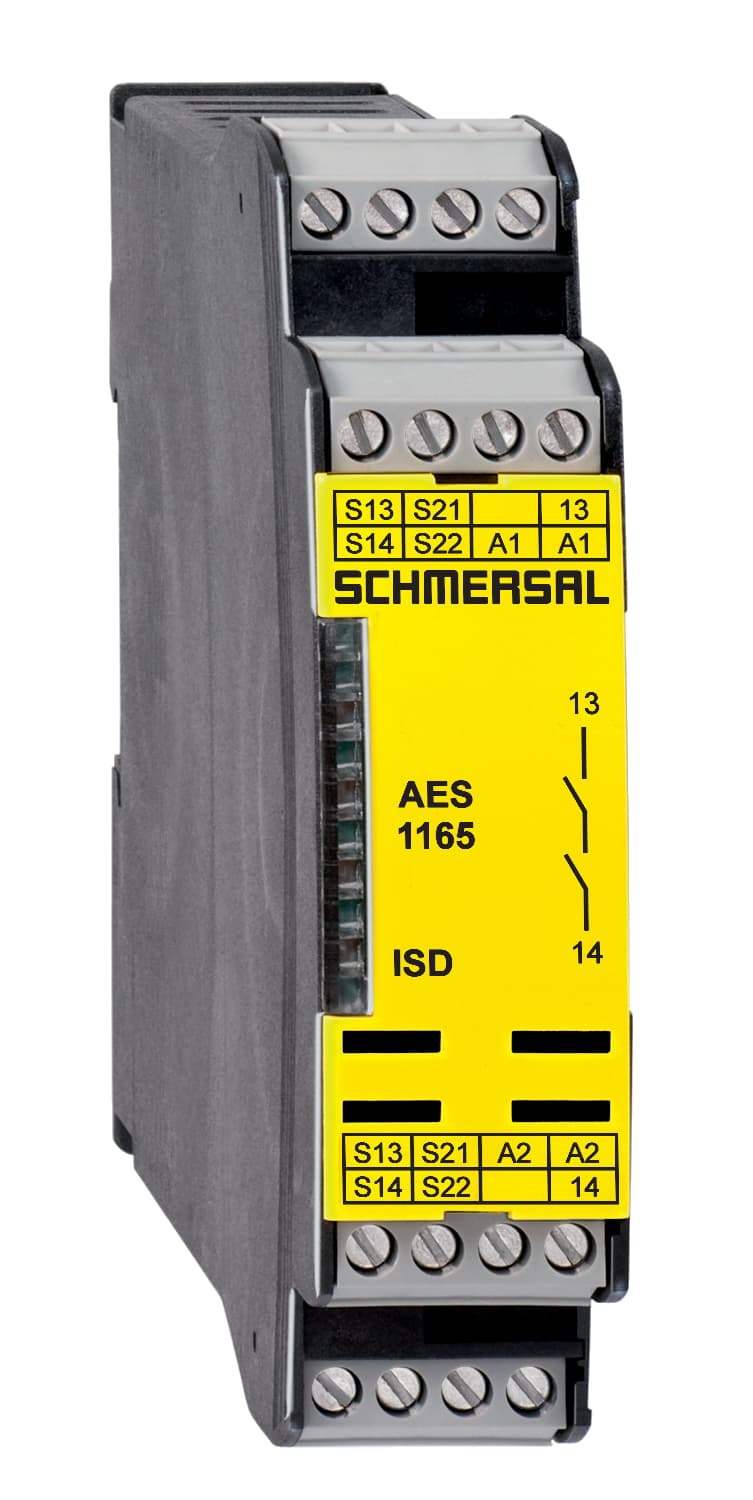

AES 1165 Schmersal Electronic Components
Part#:AES 1165
Manufacturer:Schmersal
Alt. Part#:101170045
Product Lifecycle:Active
Get a quick Quote!
Safety-monitoring modules; Stop category 0; Monitoring of BNS range magnetic safety sensors; 1 safety contact, STOP 0
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the AES 1165 Schmersal price in the box on the right side or send a quick quote.
Product Details
- Gross weight 155 g
- Number of LEDs 1
- Width 22.5 mm
- Degree of protection of clips or terminals IP20
- Degree of pollution to IEC/EN 60664-1 2
- Rated control voltage at DC, maximum 28.8 VDC
- Voltage, Utilisation category DC12 24 VDC
- Material of the contacts, electrical Ag-Ni 10 and 0.2 µm gold-plated
- Number of inputs for NC 2
- Terminal Connector Screw connection, rigid or flexible
- Ambient temperature, maximum +55 °C
- Rated control voltage at AC 50 Hz, maximum 26.4 VAC
- Pull-in delay at automatic start, maximum, typically 100 ms
- Wire breakage detection Yes
- Earth connection detection Yes
- Mounting Snaps onto standard DIN rail to EN 60715
- Degree of protection of the enclosure IP40
- Resistance to vibrations to EN 60068-2-6 10...55 Hz, Amplitude 0.35 mm, ± 15 %
- Rated control voltage at AC 60 Hz, maximum 26.4 VAC
- Drop-out delay in case of power failure, typically 80 ms
- Stop-Category 0
- Integral System Diagnostics, status Yes
- Depth 121 mm
- Restistance to shock 30 g / 11 ms
- Rated operating voltage 24 VAC -15% / +10%, 24 VDC -10%/+20%, residual ripple max. 10%
- Pull-in delay at RESET, typically 20 ms
- Input signal, HIGH Signal 1 10 … 30 VDC
- Climatic stress BG-GS-ET-14, IEC 60947-5-3
- Standards IEC/EN 60204-1, IEC 60947-5-3, BG-GS-ET-14
- Reset after disconnection of supply voltage Yes
- Number of safety contacts 1
- Cable section, maximum 2.5 mm²
- Cable section, minimum 0.25 mm²
- Degree of protection of the mounting space IP54
- Storage and transport temperature, maximum +70 °C
- Overvoltage category III
- Thermal test current 6 A
- Rated AC voltage for controls at DC minimum 20.4 VDC
- Electrical power consumption 5 W
- Voltage, Utilisation category AC15 230 VAC
- Short-circuit recognition Yes
- Number of inputs for NO 2
- Tightening torque of Clips 0.6 Nm
- Storage and transport temperature, minimum -25 °C
- Rated AC voltage for controls, 50 Hz, minimum 20.4 VAC
- Contact resistance, maximum 0.1 Ω
- Current, Utilisation category DC13 6 A
- Automatic reset function Yes
- Enclosure material Glass-fibre reinforced thermoplastic, ventilated
- Mechanical life, minimum 20,000,000 Operations
- Terminal designations IEC/EN 60947-1
- Ambient temperature, minimum +0 °C
- Height 100 mm
- Rated impulse withstand voltage Uimp 4 kV
- Frequency range 50 Hz, 60 Hz
- Rated AC voltage for controls, 60 Hz, minimum 20.4 VAC
- Note (Contact resistance) in new state
- Drop-out delay in case of emergency, typically 20 ms
- Switching capacity, minimum 10 VDC
- Current, Utilisation category DC12 0.1 A
- Current, Utilisation category AC-15 6 A
- Voltage, Utilisation category DC13 24 VDC
- Conduction resistance, maximum 40 Ω
- EMC rating EMC-Directive
- Switching capacity, maximum 24 VDC
- Input signal, LOW Signal 0 0 … 2 VDC
