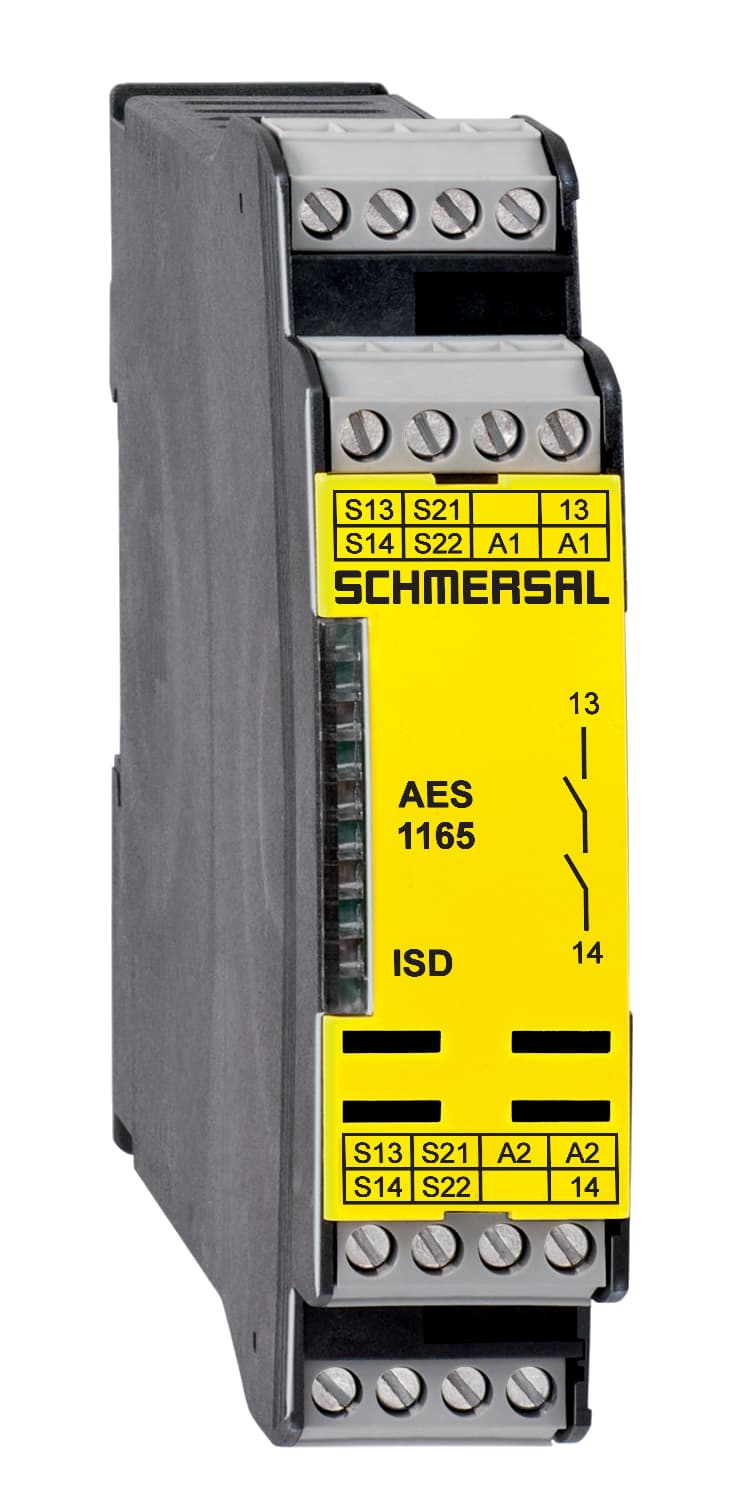

AES 1165.3-2214-1 24 VAC Schmersal Electronic Components
Part#:AES 1165.3-2214-1 24 VAC
Manufacturer:Schmersal
Alt. Part#:101131305
Product Lifecycle:Active
Get a quick Quote!
Safe signal processing; Monitoring of BNS range magnetic safety sensors; 1 safety contact, STOP 0
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the AES 1165.3-2214-1 24 VAC Schmersal price in the box on the right side or send a quick quote.
Product Details
- Stop-Category 0
- Earth connection detection Yes
- Cable section, maximum 2.5 mm²
- Resistance to vibrations to EN 60068-2-6 10...55 Hz, Amplitude 0.35 mm, ± 15 %
- Rated AC voltage for controls at DC minimum 20.4 VDC
- Current, Utilisation category AC-15 6 A
- EMC rating EMC-Directive
- Voltage, Utilisation category DC12 24 VDC
- Wire breakage detection Yes
- Number of safety contacts 1
- Width 22.5 mm
- Ambient temperature, maximum +55 °C
- Degree of pollution to IEC/EN 60664-1 2
- Note (Contact resistance) in new state
- Pull-in delay at RESET, typically 20 ms
- Input signal, HIGH Signal 1 10 … 30 VDC
- Short-circuit recognition Yes
- Integral System Diagnostics, status Yes
- Terminal designations IEC/EN 60947-1
- Ambient temperature, minimum +0 °C
- Thermal test current 6 A
- Drop-out delay in case of power failure, typically 80 ms
- Switching capacity, minimum 10 mA
- Input signal, LOW Signal 0 0 … 2 VDC
- Material of the contacts, electrical Ag-Ni 10 and 0.2 µm gold-plated
- Number of auxiliary contacts 2
- Mounting Snaps onto standard DIN rail to EN 60715
- Depth 121 mm
- Storage and transport temperature, maximum +70 °C
- Rated AC voltage for controls, 50 Hz, minimum 20.4 VAC
- Electrical power consumption 5 W
- Current, Utilisation category DC13 6 A
- Climatic stress BG-GS-ET-14, IEC 60947-5-3
- Number of inputs for NO 1
- Cable section, minimum 0.25 mm²
- Restistance to shock 30 g / 11 ms
- Rated control voltage at AC 50 Hz, maximum 26.4 VAC
- Contact resistance, maximum 0.1 Ω
- Conduction resistance, maximum 40 Ω
- Switching capacity, maximum 24 VDC
- Gross weight 164 g
- Number of inputs for NC 2
- Tightening torque of Clips 0.6 Nm
- Degree of protection of clips or terminals IP20
- Overvoltage category III
- Rated control voltage at AC 60 Hz, maximum 26.4 VAC
- Standards IEC/EN 60204-1, IEC 60947-5-3, BG-GS-ET-14
- Reset after disconnection of supply voltage Yes
- Mechanical life, minimum 20,000,000 Operations
- Height 100 mm
- Enclosure material Glass-fibre reinforced thermoplastic, ventilated
- Number of signalling outputs 2
- Degree of protection of the enclosure IP40
- Rated operating voltage 24 VAC -15% / +10%, 24 VDC -10%/+20%, residual ripple max. 10%
- Rated control voltage at DC, maximum 28.8 VDC
- Pull-in delay at automatic start, maximum, typically 100 ms
- Automatic reset function Yes
- Number of LEDs 1
- Terminal Connector Screw connection, rigid or flexible
- Degree of protection of the mounting space IP54
- Frequency range 50 Hz, 60 Hz
- Drop-out delay in case of emergency, typically 20 ms
- Voltage, Utilisation category DC13 24 VDC
- Storage and transport temperature, minimum -25 °C
- Voltage, Utilisation category AC15 230 VAC
- Rated AC voltage for controls, 60 Hz, minimum 20.4 VAC
- Current, Utilisation category DC12 0.1 A
- Rated impulse withstand voltage Uimp 4 kV
