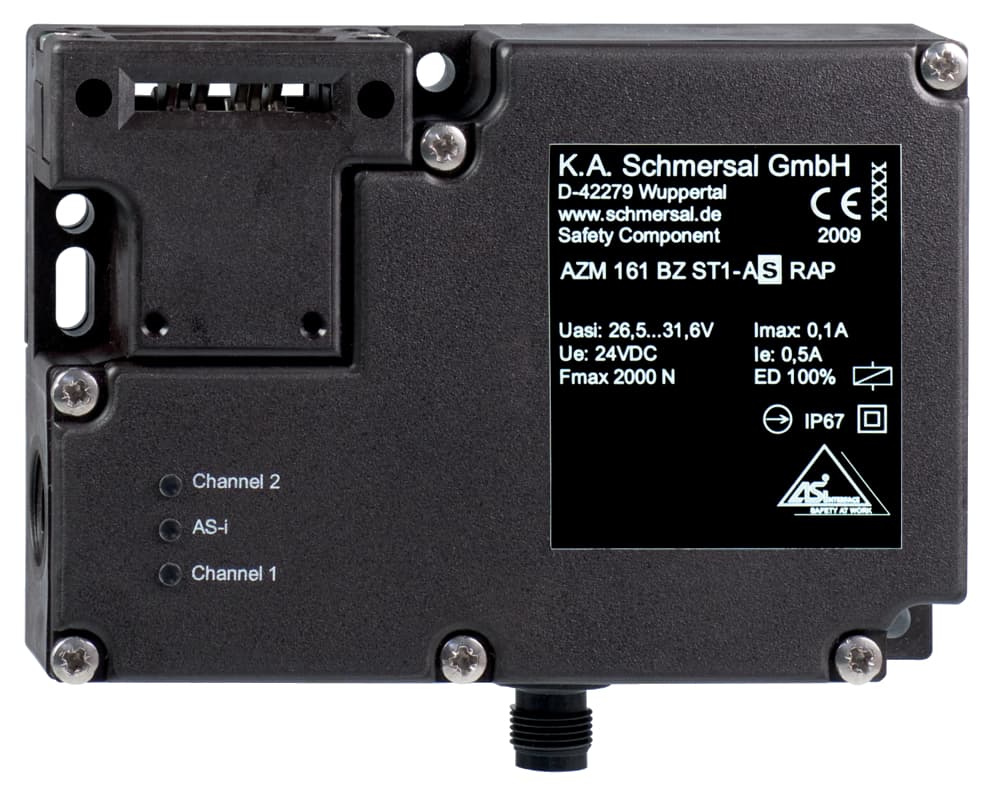

AZM 161 B ST1-AS A Schmersal Safety Switch Interlocks

Product Details

• Integral System Diagnostics, status
  Yes
• Gross weight
  450 g
• Actuating play in direction of actuation
  5.5 mm
• Ambient temperature, minimum
  -25 °C
• Rated insulation voltage Ui
  32 VDC
• AS-i Current consumption, maximum
  250 mA
• AS-i Outputs, DO 0
  Solenoid control
• AS-i Parameter bits, P0
  Actuator detected
• Standards
  IEC 61508, EN 60947-5-1, EN 62026-2
• Number of actuating directions
  3
• Length of sensor
  30 mm
• Storage and transport temperature, maximum
  +85 °C
• Overvoltage category
  III
• AS-i Version
  V 2.1
• AS-i, ID-Code2
  0xE
• AS-i Outputs, DO 1
  No Function
• Active principle
  electromechanical
• Actuating speed, maximum
  2 m/s
• Width of sensor
  130 mm
• Relative humidity, maximum
  95 %
Degree of pollution to VDE 0100
3
AS-i Profile
S-7.B.F.E
Note (AS-i Input module address)
Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
Actuator monitored
Yes
Latching force
5 N
Degree of protection
IP67 to EN 60529
Resistance to vibrations to EN 60068-2-6
10 Hz ... 150 Hz, amplitude 0.35 mm
Switching frequency
1,000 /h
AS-i, IO-Code
0x7
Note (AS-i Parameter bits)
Set the parameter outputs to "1111" (0xF), FID: periphery error
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Clamping force
2,000 N
Height of sensor
90 mm
Rated impulse withstand voltage Uimp
0.8 kV
AS-i Operating voltage, minimum
26.5 VDC
AS-i Input, Channel 2
Data bits DI 2 / DI 3 = dynamic code transmission
AS-i Outputs, DO 3
No Function
Power to lock
Yes
Terminal Connector
Connector plug M12, 4-pole, (A-coding)
Storage and transport temperature, minimum
-25 °C
Note (Relative humidity)
non-condensing, non-icing
AS-i Operating voltage AS-i maximum
31.6 VDC
AS-i, ID-Code1
0xF
AS-i Input module address
0
Manual release
Yes
Connector position
Right
Relative humidity, minimum
30 %
Restistance to shock
30 g / 11 ms
AS-i Specification
Safety-Slave
AS-i Outputs, DO 2
No Function
AS-i Parameter bits, P2
Magnet voltage in tolerance range
Reaction time, maximum
100 ms
Mechanical life, minimum
1,000,000 Operations
Ambient temperature, maximum
+60 °C
Protection rating
II
Note (AS-i Operating voltage)
Protection against polarity reversal
AS-i Input, Channel 1
Data bits DI 0 / DI 1 = dynamic code transmission
AS-i Parameter bits, P1
Solenoid interlock locked
AS-i, ID-Code
0xB
AS-i Parameter bits, P3
Error message - locking/unlocking of the solenoid interlock blocked
