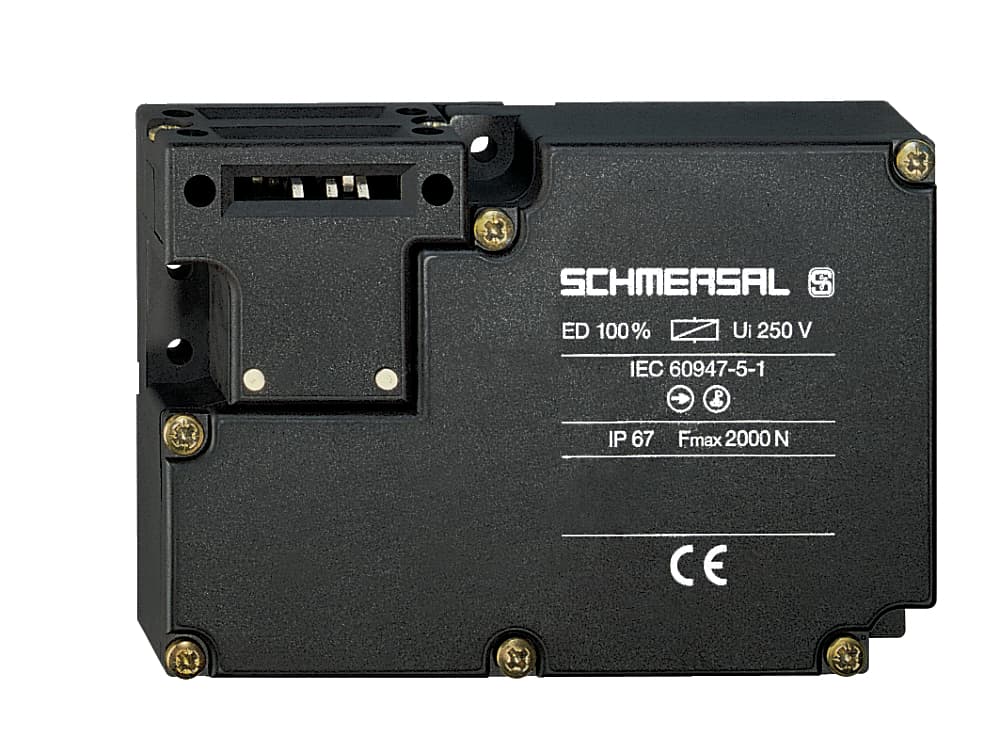

AZM 161SK-12/03RKA-024 Schmersal Safety Switches
Part#:AZM 161SK-12/03RKA-024
Manufacturer:Schmersal
Alt. Part#:101195892
Product Lifecycle:Active
Get a quick Quote!
Solenoid interlocks; Large wiring compartment; Manual release; cable entries 4 M 16 x 1.5; Thermoplastic enclosure; Double-insulated; Interlock with protection against incorrect locking.; 130 mm x 90 mm x 30 mm; 6 Contacts; Long life
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Switches that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the AZM 161SK-12/03RKA-024 Schmersal price in the box on the right side or send a quick quote.
Product Details
- Material of the contacts, electrical Silver
- Active principle electromechanical
- Number of actuating directions 3
- Coding level according to ISO 14119 Low
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Mechanical life, minimum 1,000,000 Operations
- Clamping force in accordance with ISO14119 Fzh 2,000 N
- Power to lock Yes
- Manual release Yes
- Standards EN 60947-5-1, BG-GS-ET-19
- Gross weight 465 g
- Number of auxiliary contacts 1
- Number of safety contacts 5
- Latching force 30 N
- Positive break force, minimum 30 N
- Terminal Connector Screw terminals
- Width of sensor 130 mm
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Length of sensor 30 mm
- Rated impulse withstand voltage Uimp 4 kV
- Rated insulation voltage Ui 250 V
- Thermal test current 6 A
- Rated control voltage 24 VAC/DC
- Electrical power consumption, maximum 10 W
- Switching element NO contact, NC contact
- Current, Utilisation category AC-15 4 A
- Voltage, Utilisation category DC13 24 VDC
- Current, Utilisation category DC13 2.5 A
- Actuating speed, maximum 2 m/s
- Ambient temperature, maximum +60 °C
- Actuating play in direction of actuation 5.5 mm
- Cable section, maximum 1 x 1.5 mm²
- Switching principle Creep circuit element
- Switching frequency 1,000 /h
- positive break travel 10 mm
- Height of sensor 90 mm
- Ambient temperature, minimum -25 °C
- Required rated short-circuit current to EN 60947-5-1 1,000 A
- Cable section, minimum 1 x 0.25 mm²
- Voltage, Utilisation category AC15 230 VAC
- Degree of protection IP67 to EN 60529
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
