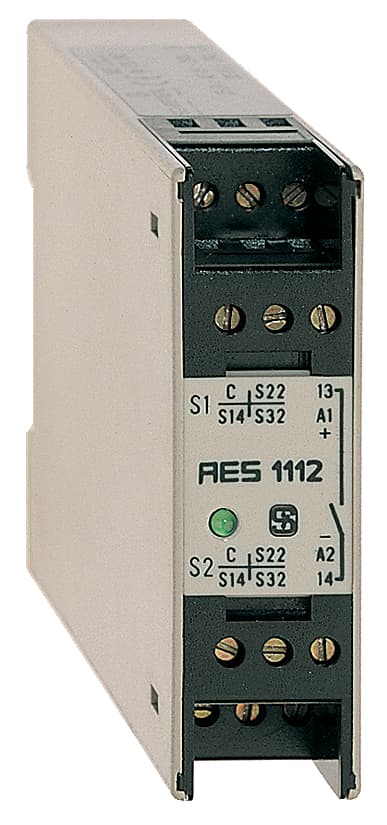

AES 1112.1 110 VAC Schmersal Electronic Components
Part#:AES 1112.1 110 VAC
Manufacturer:Schmersal
Alt. Part#:101128798
Product Lifecycle:Active
Get a quick Quote!
Safety-monitoring modules; Stop category 0; Monitoring of BNS range magnetic safety sensors; 1 safety contact, STOP 0
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the AES 1112.1 110 VAC Schmersal price in the box on the right side or send a quick quote.
Product Details
- Standards IEC/EN 60204-1, IEC 60947-5-3, BG-GS-ET-14
- Number of shutters 1
- Degree of protection of the enclosure IP40
- Overvoltage category III
- Storage and transport temperature, minimum -25 °C
- Drop-out delay in case of emergency, typically 20 ms
- Wire breakage detection Yes
- Gross weight 160 g
- Tightening torque of Clips 0.6 Nm
- Degree of protection of the mounting space IP54
- Frequency range 50 Hz, 60 Hz
- Note (Contact resistance) in new state
- Switching capacity, minimum 10 mA
- EMC rating EMC-Directive
- Enclosure material Glass-fibre reinforced thermoplastic, ventilated
- Number of openers 2
- Height 75 mm
- Rated impulse withstand voltage Uimp 4 kV
- Rated control voltage at AC 50 Hz, maximum 121 VAC
- Pull-in delay at automatic start, maximum, typically 100 ms
- Reset after disconnection of supply voltage Yes
- Terminal Connector Screw connection, rigid or flexible
- Depth 110 mm
- Storage and transport temperature, maximum +70 °C
- Rated AC voltage for controls, 50 Hz, minimum 93.5 VAC
- Drop-out delay in case of power failure, typically 80 ms
- Climatic stress EN 60068-2-3, BG-GS-ET-14
- Automatic reset function Yes
- Number of LEDs 1
- Cable section, maximum 2.5 mm²
- Ambient temperature, maximum +55 °C
- Rated AC voltage for controls, 60 Hz, minimum 93.5 VAC
- Current, Utilisation category AC-15 3 A
- Voltage, Utilisation category AC15 230 VAC
- Material of the contacts, electrical AgCdO
- Mounting Snaps onto standard DIN rail to EN 60715
- Terminal designations IEC/EN 60947-1
- Width 22.5 mm
- Restistance to shock 30 g / 11 ms
- Rated operating voltage 110 VAC
- Contact resistance, maximum 0.1 Ω
- Pull-in delay at RESET, typically 20 ms
- Stop-Category 0
- Integral System Diagnostics, status Yes
- Ambient temperature, minimum +0 °C
- Degree of protection of clips or terminals IP20
- Degree of pollution to IEC/EN 60664-1 2
- Rated control voltage at AC 60 Hz, maximum 121 VAC
- Voltage, Utilisation category DC13 24 VDC
- Number of safety contacts 1
- Mechanical life, minimum 10,000,000 Operations
- Resistance to vibrations to EN 60068-2-6 10...55 Hz, Amplitude 0.35 mm, ± 15 %
- Thermal test current 4 A
- Electrical power consumption 2.4 W
- Current, Utilisation category DC13 2 A
- Conduction resistance, maximum 40 Ω
- Switching capacity, maximum 2 A
- Current, Utilisation category DC12 0.1 A
- Voltage, Utilisation category DC12 24 VDC
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents AES 1112.1 110 VAC Specs
