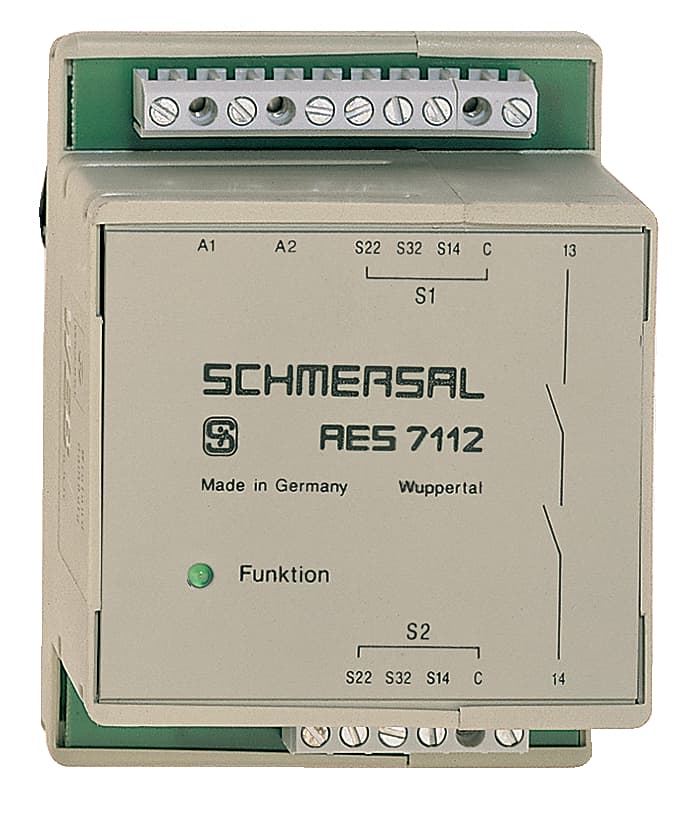

AES 7112.2 230 VAC Schmersal Electronic Components
Part#:AES 7112.2 230 VAC
Manufacturer:Schmersal
Alt. Part#:101115498
Product Lifecycle:Active
Get a quick Quote!
Safety-monitoring modules; Stop category 0; Monitoring of BNS range magnetic safety sensors; 1 safety contact, STOP 0
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the AES 7112.2 230 VAC Schmersal price in the box on the right side or send a quick quote.
Product Details
- Gross weight 284 g
- Mechanical life, minimum 3,000,000 Operations
- Storage and transport temperature, maximum +70 °C
- Rated control voltage at AC 60 Hz, maximum 253 VAC
- Integral System Diagnostics, status Yes
- Automatic reset function Yes
- Storage and transport temperature, minimum -25 °C
- Thermal test current 5 A
- Voltage, Utilisation category DC13 24 VDC
- Number of LEDs 1
- Number of shutters 4
- Terminal Connector Screw connection, rigid or flexible
- Degree of protection of the enclosure IP40
- Ambient temperature, minimum +0 °C
- Note (Contact resistance) in new state
- Rated control voltage at AC 50 Hz, maximum 253 VAC
- Enclosure material Glass-fibre reinforced thermoplastic, ventilated
- Number of safety contacts 1
- Width 105 mm
- Degree of protection of clips or terminals IP20
- Degree of pollution to IEC/EN 60664-1 2
- Standards IEC/EN 60204-1, IEC 60947-5-3, BG-GS-ET-14
- Short-circuit recognition Yes
- Restistance to shock 30 g / 11 ms
- Rated AC voltage for controls, 60 Hz, minimum 195.5 VAC
- Current, Utilisation category AC-15 2 A
- Current, Utilisation category DC12 0.1 A
- Material of the contacts, electrical AgSn0
- Mounting Snaps onto standard DIN rail to EN 60715
- Height 96 mm
- Rated impulse withstand voltage Uimp 4 kV
- Rated operating voltage 230 VAC
- Electrical power consumption 1.5 W
- Voltage, Utilisation category AC15 250 VAC
- EMC rating EMC-Directive
- Stop-Category 0
- Wire breakage detection Yes
- Degree of protection of the mounting space IP54
- Rated AC voltage for controls, 50 Hz, minimum 195.5 VAC
- Drop-out delay in case of power failure, typically 80 ms
- Reset after disconnection of supply voltage Yes
- Cable section, maximum 1.5 mm²
- Ambient temperature, maximum +55 °C
- Frequency range 50 Hz, 60 Hz
- Pull-in delay at RESET, typically 20 ms
- Current, Utilisation category DC13 2 A
- Number of openers 2
- Depth 58 mm
- Resistance to vibrations to EN 60068-2-6 10...55 Hz, Amplitude 0.35 mm, ± 15 %
- Overvoltage category III
- Drop-out delay in case of emergency, typically 20 ms
- Conduction resistance, maximum 40 Ω
- Contact resistance, maximum 0.1 Ω
- Voltage, Utilisation category DC12 24 VDC
- Pull-in delay at automatic start, maximum, typically 100 ms
- Switching capacity, maximum 24 VDC
- Switching capacity, minimum 10 mA
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents AES 7112.2 230 VAC Specs
