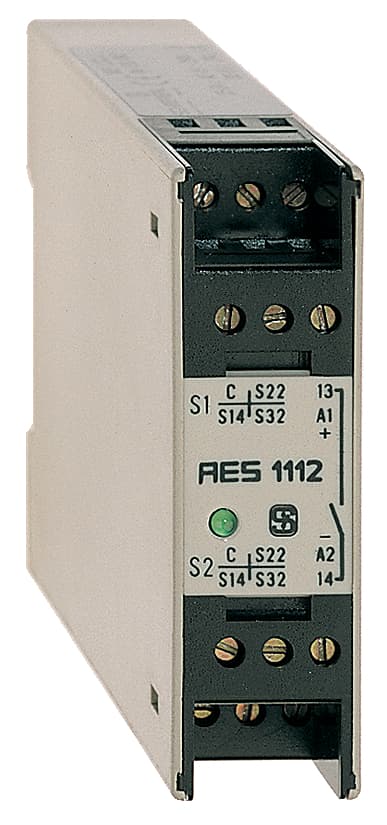

AES 1112.3 24 VAC Schmersal Electronic Components
Part#:AES 1112.3 24 VAC
Manufacturer:Schmersal
Alt. Part#:101128800
Product Lifecycle:Active
Get a quick Quote!
Safety-monitoring modules; Stop category 0; Monitoring of BNS range magnetic safety sensors; 1 safety contact, STOP 0
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the AES 1112.3 24 VAC Schmersal price in the box on the right side or send a quick quote.
Product Details
- Climatic stress EN 60068-2-3, BG-GS-ET-14
- Automatic reset function Yes
- Wire breakage detection Yes
- Reset after disconnection of supply voltage Yes
- Degree of pollution to IEC/EN 60664-1 2
- Number of LEDs 1
- Depth 110 mm
- Stop-Category 0
- Mounting Snaps onto standard DIN rail to EN 60715
- Width 22.5 mm
- Rated impulse withstand voltage Uimp 4 kV
- Rated control voltage at AC 50 Hz, maximum 26.4 VAC
- Pull-in delay at automatic start, maximum, typically 100 ms
- Voltage, Utilisation category DC12 24 VDC
- Enclosure material Glass-fibre reinforced thermoplastic, ventilated
- Terminal designations IEC/EN 60947-1
- Degree of protection of clips or terminals IP20
- Restistance to shock 30 g / 11 ms
- Rated operating voltage 24 VAC
- Switching capacity, minimum 10 mA
- Conduction resistance, maximum 40 Ω
- Material of the contacts, electrical AgCdO
- Mechanical life, minimum 10,000,000 Operations
- Tightening torque of Clips 0.6 Nm
- Frequency range 50 Hz, 60 Hz
- Rated control voltage at AC 60 Hz, maximum 26.4 VAC
- Current, Utilisation category AC-15 3 A
- Number of openers 2
- Ambient temperature, maximum +55 °C
- Storage and transport temperature, maximum +70 °C
- Rated AC voltage for controls, 60 Hz, minimum 20.4 VAC
- Voltage, Utilisation category DC13 24 VDC
- Switching capacity, maximum 2 A
- Integral System Diagnostics, status Yes
- Number of shutters 1
- Resistance to vibrations to EN 60068-2-6 10...55 Hz, Amplitude 0.35 mm, ± 15 %
- Contact resistance, maximum 0.1 Ω
- Voltage, Utilisation category AC15 230 VAC
- Cable section, maximum 2.5 mm²
- Height 75 mm
- Note (Contact resistance) in new state
- Pull-in delay at RESET, typically 20 ms
- EMC rating EMC-Directive
- Gross weight 120 g
- Standards IEC/EN 60204-1, IEC 60947-5-3, BG-GS-ET-14
- Number of safety contacts 1
- Ambient temperature, minimum +0 °C
- Electrical power consumption 2.4 W
- Terminal Connector Screw connection, rigid or flexible
- Degree of protection of the enclosure IP40
- Thermal test current 4 A
- Rated AC voltage for controls, 50 Hz, minimum 20.4 VAC
- Current, Utilisation category DC13 2 A
- Current, Utilisation category DC12 0.1 A
- Degree of protection of the mounting space IP54
- Storage and transport temperature, minimum -25 °C
- Overvoltage category III
- Drop-out delay in case of power failure, typically 80 ms
- Drop-out delay in case of emergency, typically 20 ms
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents AES 1112.3 24 VAC Specs
1-year warranty
