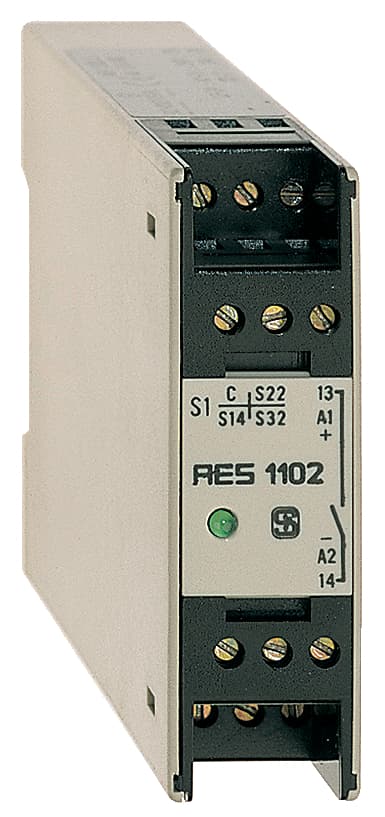

AES 1102.4 42 VAC Schmersal Electronic Components
Part#:AES 1102.4 42 VAC
Manufacturer:Schmersal
Alt. Part#:101126152
Product Lifecycle:Active
Get a quick Quote!
Safety-monitoring modules; Stop category 0; Monitoring of BNS range magnetic safety sensors; 1 safety contact, STOP 0
About the manufacturer: Schmersal is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the AES 1102.4 42 VAC Schmersal price in the box on the right side or send a quick quote.
Product Details
- Wire breakage detection Yes
- Reset after disconnection of supply voltage Yes
- Automatic reset function Yes
- Number of LEDs 1
- Depth 110 mm
- Note (Contact resistance) in new state
- Voltage, Utilisation category AC15 250 VAC
- EMC rating EMC-Directive
- Gross weight 160 g
- Number of safety contacts 1
- Width 22.5 mm
- Ambient temperature, minimum +0 °C
- Frequency range 50 Hz, 60 Hz
- Rated AC voltage for controls, 60 Hz, minimum 35.7 VAC
- Pull-in delay at RESET, typically 20 ms
- Pull-in delay at automatic start, maximum, typically 100 ms
- Stop-Category 0
- Terminal Connector Screw connection, rigid or flexible
- Degree of protection of the enclosure IP40
- Rated impulse withstand voltage Uimp 4 kV
- Material of the contacts, electrical AgCdO
- Enclosure material Glass-fibre reinforced thermoplastic, ventilated
- Mounting Snaps onto standard DIN rail to EN 60715
- Height 75 mm
- Storage and transport temperature, maximum +70 °C
- Degree of pollution to IEC/EN 60664-1 2
- Contact resistance, maximum 0.1 Ω
- Current, Utilisation category AC-15 1.5 A
- Number of openers 4
- Tightening torque of Clips 0.6 Nm
- Degree of protection of clips or terminals IP20
- Overvoltage category III
- Thermal test current 4 A
- Drop-out delay in case of emergency, typically 20 ms
- Current, Utilisation category DC13 1 A
- Climatic stress EN 60068-2-3, BG-GS-ET-14
- Integral System Diagnostics, status Yes
- Terminal designations IEC/EN 60947-1
- Degree of protection of the mounting space IP54
- Resistance to vibrations to EN 60068-2-6 10...55 Hz, Amplitude 0.35 mm, ± 15 %
- Rated operating voltage 42 V
- Number of shutters 2
- Cable section, maximum 2.5 mm²
- Ambient temperature, maximum +55 °C
- Restistance to shock 30 g / 11 ms
- Electrical power consumption 2.4 W
- Drop-out delay in case of power failure, typically 80 ms
- Standards IEC/EN 60204-1, IEC 60947-5-3, BG-GS-ET-14
- Mechanical life, minimum 3,000,000 Operations
- Storage and transport temperature, minimum -25 °C
- Rated AC voltage for controls, 50 Hz, minimum 35.7 VAC
- Switching capacity, maximum 24 VDC
- Voltage, Utilisation category DC13 24 VDC
- Rated control voltage at AC 60 Hz, maximum 46.2 VAC
- Current, Utilisation category DC12 0.1 A
- Conduction resistance, maximum 40 Ω
- Switching capacity, minimum 10 mA
- Rated control voltage at AC 50 Hz, maximum 46.2 VAC
- Voltage, Utilisation category DC12 24 VDC
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents AES 1102.4 42 VAC Specs
