WLB32ZCY850PBQMC Banner Light Bars
Part#:WLB32ZCY850PBQMC
Manufacturer:Banner
Alt. Part#:94914
Product Lifecycle:Active
In-stock parts: 6
Jun 19, 2025
WLB32 Work Light Bar; Switched Hi/Low/Off; Length: 850 mm; Voltage: 90-264 V ac; Environmental Rating: IP50; Color: Yellow; Cascadable; QD - Flying Leads Power Cable; Diffuse Window
About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLB32ZCY850PBQMC Banner price in the box on the right side or send a quick quote.
Product Details
- Weight1088.6208 g
- Country Of OriginMX
- Illumination Yes
- Animation Option 1 Solid On
- Max Op. Temperature (°C) 45
- Wireless No
- Primary Housing Material Aluminum
- Connection Integral QD
- Min Op. Temperature (°C) -25
- Feature: Chemical Resistant No
- Cable Length (m) 0.15
- Housing Style Linear Strip
- Number of Input Pins/Conductors 3
- Illumination Switch Function I=Low; O=OFF; II=High
- Supply Voltage 90-264 V ac
- Feature: Hazardous Area No
- Power AC
- Product Size (mm) 32
- Illuminated Length (LxWxH mm) 850.0
- Feature: Audible No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Option 1 Yellow
- Storage Temp (°C) -40 to 70
- Modbus RTU No
- Number of Colors / Segments 1
- Dimming Option High-Low-Off
- Primary Window Material Polycarbonate Diffused
- IO Link No
- Mounting Thread No Thread
- Color 1 - Wavelength/Color Temp/Coordinates 590 nm
- Physical Dimensions (LxWxH or DxH mm) 862.0 x 32.0 x 46.0
- Feature: Cascade Yes
- Power Source AC
- Color Technology Standard LED
- Environmental Rating IP50
- Feature: Quick Disconnect Yes
- Pro-Editor Compatible (Discrete) No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLB32ZCY850PBQMC Description

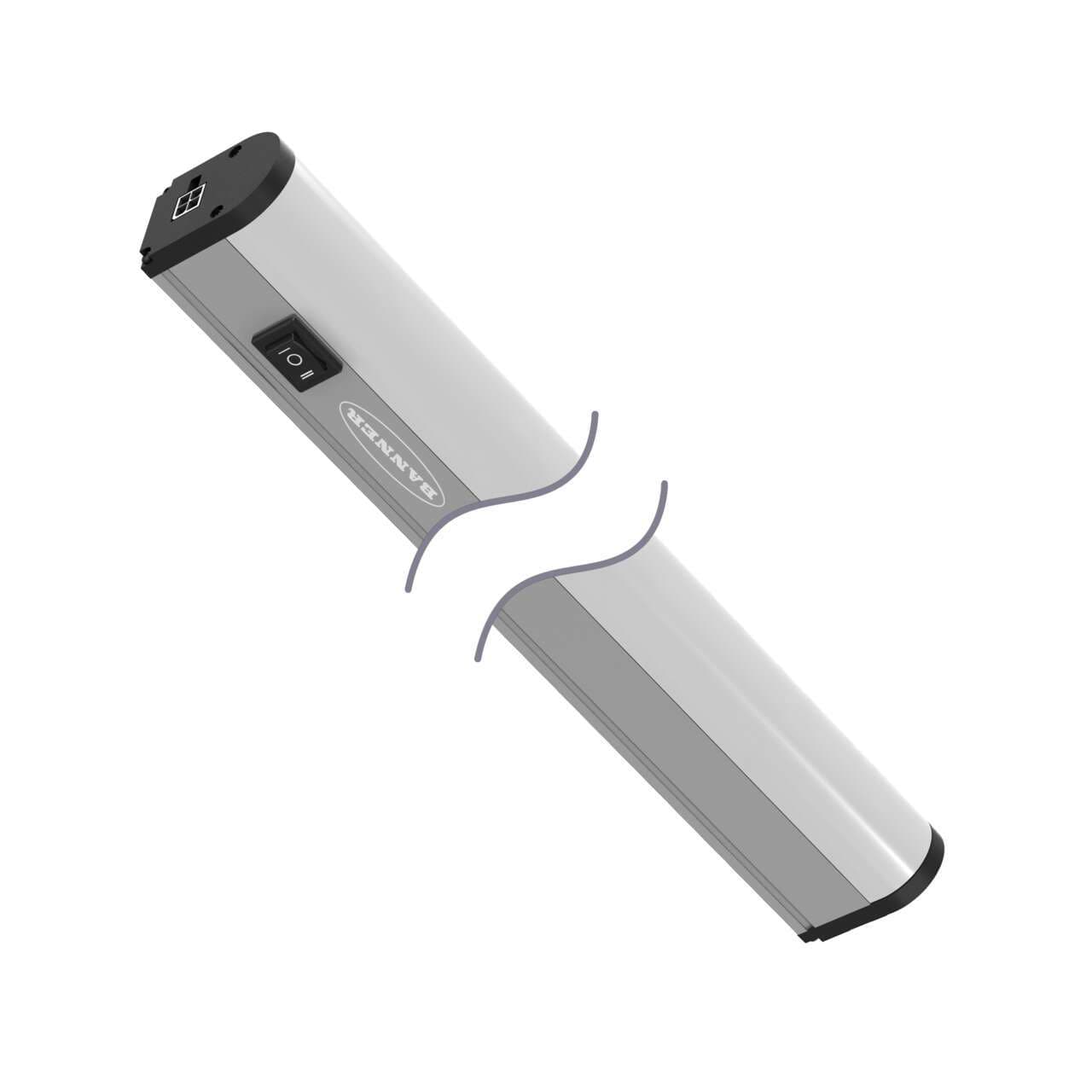

Banner Engineering WLB32ZCY850PBQMC is a cascadable industrial LED workstation task light bar designed for a variety of applications requiring linear lighting. It features a high/low/off switch, power cord, and provides 1-color yellow LED illumination. This task light operates on a supply voltage range of 90Vac-264Vac, accommodating 120Vac, 220Vac, 230Vac, and 240Vac inputs. The dimensions of this product are 850mm in length and 32mm in width, with a construction that includes a polycarbonate (PC) diffused window and an aluminium housing for durability. It comes pre-wired with a 1.8m / 5.9ft power cord terminated with bare end flying leads for easy installation. The WLB32ZCY850PBQMC offers a degree of protection rated at IP50, making it suitable for environments with limited dust ingress. It can operate within an ambient air temperature range of -25°C to +45°C. Additionally, it features 1 x digital input (100-240Vac) for color control, consumes 375mA of current, and delivers a luminous flux of 300 lumens.
Related documents WLB32ZCY850PBQMC Specs
1-year warranty
