WLB32ZC1130PBQMB Banner Light Bars
Part#:WLB32ZC1130PBQMB
Manufacturer:Banner
Alt. Part#:87496
Product Lifecycle:Active
In-stock parts: 8
Jun 19, 2025
WLB32 Work Light Bar; Switched Hi/Low/Off; Length: 1130 mm; Voltage: 90-264 V ac; Environmental Rating: IP50; Color: White; Cascadable; QD - Includes Type B Power cord; Diffuse window
About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLB32ZC1130PBQMB Banner price in the box on the right side or send a quick quote.
Product Details
- Weight1088.6208 g
- Country Of OriginMX
- Illumination Yes
- Lumens Color 1 3000
- Storage Temp (°C) -40 to 70
- Modbus RTU No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Dimming Option High-Low-Off
- Power Source AC
- Connection Integral QD
- Illuminated Length (LxWxH mm) 1130.0
- Mounting Thread No Thread
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Supply Voltage 90-264 V ac
- Max Op. Temperature (°C) 45
- Wireless No
- Illumination Switch Function I=Low; O=OFF; II=High
- Pro-Editor Compatible (Discrete) No
- Environmental Rating IP50
- Feature: Cascade Yes
- Feature: Hazardous Area No
- Product Size (mm) 32
- Animation Option 1 Solid On
- Number of Colors / Segments 1
- Color Option 1 White
- Min Op. Temperature (°C) -25
- IO Link No
- Power AC
- Number of Input Pins/Conductors 3
- Primary Window Material Polycarbonate Diffused
- Color Technology Standard LED
- Feature: Chemical Resistant No
- Primary Housing Material Aluminum
- Housing Style Linear Strip
- Physical Dimensions (LxWxH or DxH mm) 1144.0 x 32.0 x 46.0
- Feature: Audible No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLB32ZC1130PBQMB Description

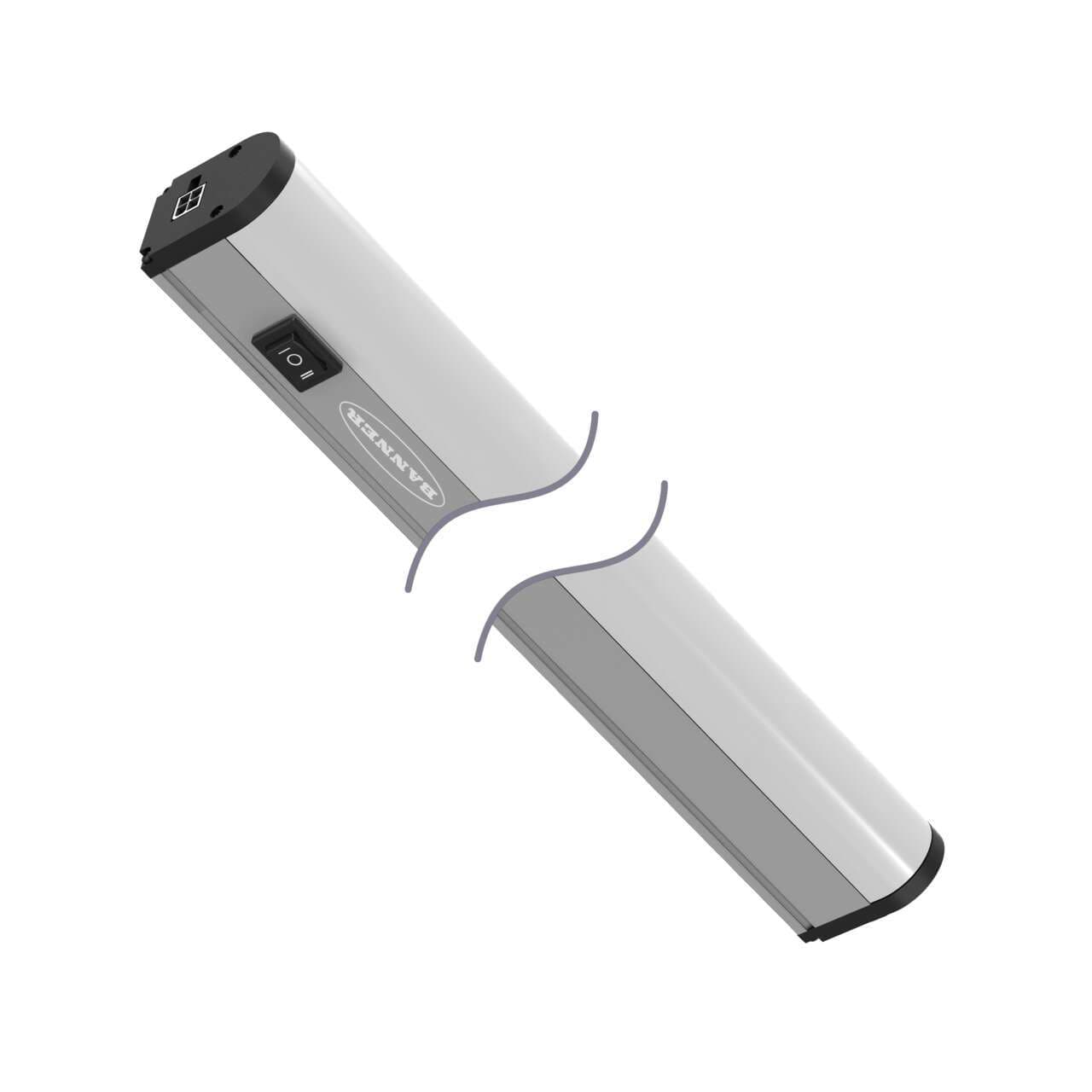

Banner Engineering WLB32ZC1130PBQMB is a cascadable industrial LED workstation task light bar designed for a variety of applications requiring clear, bright illumination. It features a high/low/off switch type B power cord and provides 1-color Daylight White (DW) LED illumination. This task light operates on a supply voltage range of 90Vac-264Vac, accommodating 120Vac, 220Vac, 230Vac, and 240Vac systems. The dimensions of this product are L1130mm x W32mm, and it is constructed with a polycarbonate (PC) diffused window and an aluminium housing for durability. It comes pre-wired with a 1.8m / 5.9ft power cord terminated with a plug compatible in North & Central America, Japan, and Taiwan. The linear shape of the light bar is designed for easy integration into workspaces, and it offers a degree of protection rated at IP50. It is suitable for operation in ambient air temperatures ranging from -25°C to +45°C. The WLB32ZC1130PBQMB includes 1 x digital input (100-240Vac) for color control and has a current consumption of 500mA. It delivers a luminous flux of 3000 lm (lumens), providing ample lighting for a variety of tasks.
