WLB32ZC285PBQMB Banner Light Bars
Part#:WLB32ZC285PBQMB
Manufacturer:Banner
Alt. Part#:87493
Product Lifecycle:Active
In-stock parts: 7
Jun 19, 2025
WLB32 Work Light Bar; Switched Hi/Low/Off; Length: 285 mm; Voltage: 90-264 V ac; Environmental Rating: IP50; Color: White; Cascadable; QD - Includes Type B Power cord; Diffuse window
About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLB32ZC285PBQMB Banner price in the box on the right side or send a quick quote.
Product Details
- Weight524.352352 g
- Country Of OriginMX
- Power Source AC
- Lumens Color 1 750
- Max Op. Temperature (°C) 45
- Feature: Hazardous Area No
- Primary Housing Material Aluminum
- Connection Integral QD
- Min Op. Temperature (°C) -25
- IO Link No
- Power AC
- Color Option 1 White
- Environmental Rating IP50
- Housing Style Linear Strip
- Animation Option 1 Solid On
- Storage Temp (°C) -40 to 70
- Modbus RTU No
- Number of Colors / Segments 1
- Illuminated Length (LxWxH mm) 285.0
- Feature: Chemical Resistant No
- Mounting Thread No Thread
- Number of Input Pins/Conductors 3
- Dimming Option High-Low-Off
- Pro-Editor Compatible (Discrete) No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Primary Window Material Polycarbonate Diffused
- Cable Length (m) 2
- Product Size (mm) 32
- Supply Voltage 90-264 V ac
- Illumination Switch Function I=Low; O=OFF; II=High
- Illumination Yes
- Color Technology Standard LED
- Physical Dimensions (LxWxH or DxH mm) 298.0 x 32.0 x 46.0
- Feature: Cascade Yes
- Feature: Audible No
- Wireless No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLB32ZC285PBQMB Description

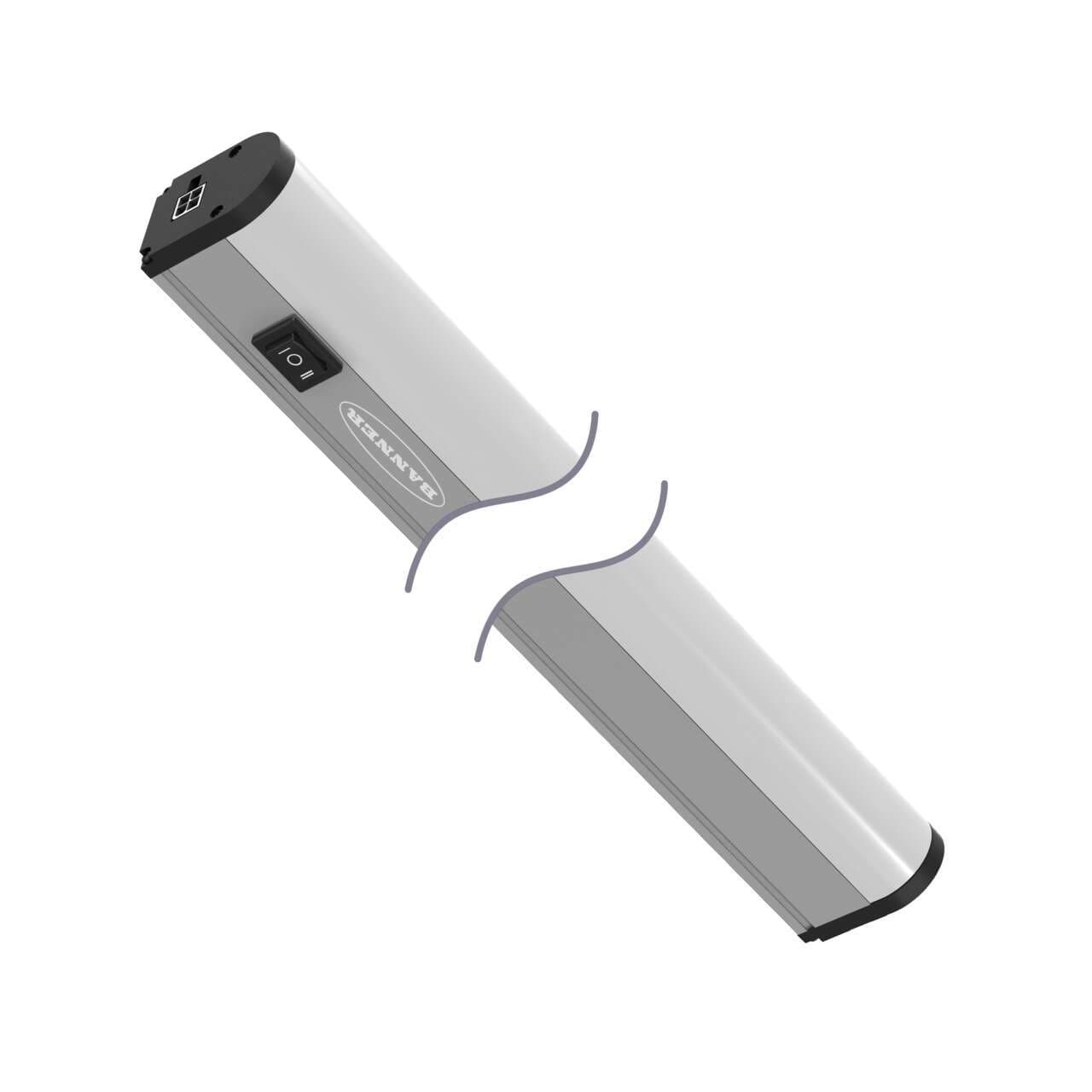

Banner Engineering WLB32ZC285PBQMB is a cascadable industrial LED workstation task light bar designed for a variety of applications requiring clear, bright illumination. It features a high/low/off switch type B power cord and provides 1-color Daylight White (DW) LED illumination. This task light operates on a supply voltage range of 90Vac-264Vac, accommodating 120Vac, 220Vac, 230Vac, and 240Vac systems. The dimensions of this product are L285mm x W32mm, with a construction that includes a polycarbonate (PC) diffused window and an aluminium housing for durability. It comes pre-wired with a 1.8m / 5.9ft power cord terminated with a plug compatible in North & Central America, Japan, and Taiwan. The linear lighting shape of this product is designed for easy integration into workspaces, and it offers a degree of protection rated at IP50. It is suitable for operation in ambient air temperatures ranging from -25°C to +45°C. The task light also features 1 x digital input (100-240Vac) for color control, consumes 125mA of current, and delivers a luminous flux of 750 lumens.
Related documents WLB32ZC285PBQMB Specs
This item can ship within 24h!
1-year warranty
$111.24
Stock:
7
Select Qty:
$111.24
$111.24 each
By purchasing this item, you agree to the Terms & Conditions
Quotebeam is NOT an authorized distributor of Banner
Shipping and Delivery Worldwide
calculate costs and time
Secure Payment Processing
with money back guarantee
1 year warranty
on all parts
Responsive Customer Support
we're here to help!
Need more details?
Feel free to chat with us or check our FAQ
Banner Disclaimer:
The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Banner Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Banner, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
