WLB32C285PBQ Banner Light Bars
Part#:WLB32C285PBQ
Manufacturer:Banner
Alt. Part#:87481
Product Lifecycle:Active
In-stock parts: 1
Jun 19, 2025
WLB32 Work Light Bar; Switched Hi/Low/Off; Length: 285 mm; Voltage: 12-30 V dc; Environmental Rating: IP50; Color: White; Cascadable; 4-pin M12 Integral QD; Diffuse Window
About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLB32C285PBQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight204.1164 g
- Country Of OriginMX
- Mounting Thread No Thread
- Number of Input Pins/Conductors 4
- Illumination Switch Function I=Low; O=OFF; II=High
- Illumination Yes
- Lumens Color 1 750
- Primary Window Material Polycarbonate Diffused
- Modbus RTU No
- Product Size (mm) 32
- Connection Integral QD
- Environmental Rating IP50
- Feature: Chemical Resistant No
- Number of Colors / Segments 1
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Storage Temp (°C) -40 to 70
- Wireless No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Animation Option 1 Solid On
- Physical Dimensions (LxWxH or DxH mm) 320.0 x 31.9 x 46.0
- Power DC
- Color Technology Standard LED
- Supply Voltage 12-30 V dc
- Feature: Audible No
- Power Source DC
- Color Option 1 White
- Illuminated Length (LxWxH mm) 285.0
- Feature: Cascade Yes
- Housing Style Linear Strip
- Quick Disconnect Type M12 (Euro)
- Max Op. Temperature (°C) 70
- IO Link No
- Primary Housing Material Aluminum
- Dimming Option High-Low-Off
- Min Op. Temperature (°C) -40
- Pro-Editor Compatible (Discrete) No
- Feature: Hazardous Area No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLB32C285PBQ Description

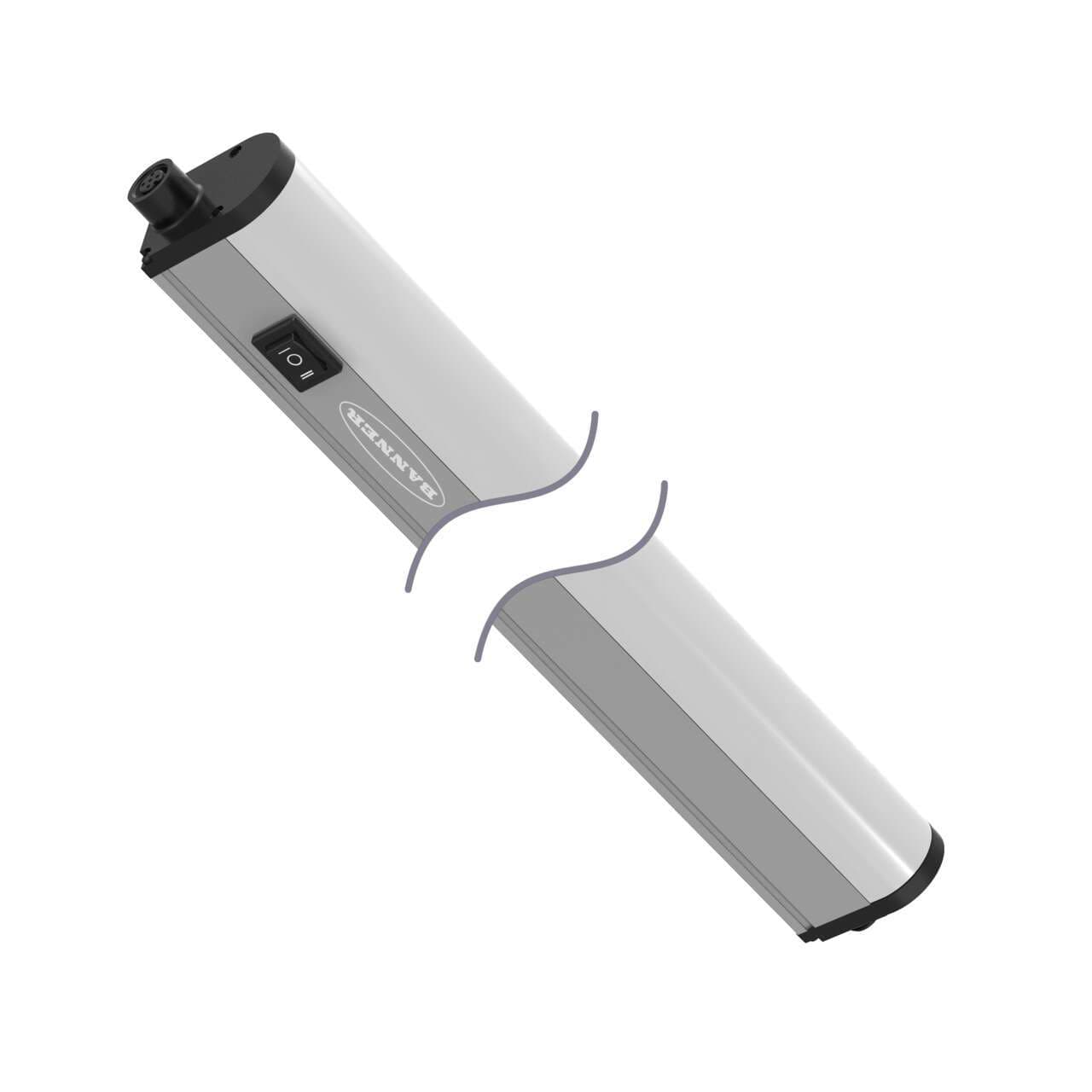

Banner Engineering WLB32C285PBQ is a cascadable industrial LED workstation task light bar designed for a variety of lighting needs. It features a high/low/off switch for 1-color Daylight White (DW) LED illumination, operating on a supply voltage range of 12Vdc to 30Vdc with a nominal 24Vdc. The dimensions of this linear lighting unit are L285mm x W32mm, constructed with a polycarbonate (PC) diffused window and an aluminium housing for durability. It comes pre-equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector for easy installation. The WLB32C285PBQ offers a degree of protection rated at IP50 and can operate in ambient air temperatures ranging from -40°C to +70°C. It includes 1 x digital input (12Vdc / 24Vdc) for color control and has a current consumption of 800mA. The luminous flux provided by this task light is 750 lumens.
