WLB32ZC1130EMQM Banner Light Bars
Part#:WLB32ZC1130EMQM
Manufacturer:Banner
Alt. Part#:97847
Product Lifecycle:Active
Get a quick Quote!
WLB32 Work Light Bar; Motion Sensor; Length: 1130 mm; Voltage: 90-264 V ac; Environmental Rating: IP50; Color: White; Cascadable; Eye Shield; QD - No Power cord; Diffuse window
About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLB32ZC1130EMQM Banner price in the box on the right side or send a quick quote.
Product Details
- Weight1315.4168 g
- Country Of OriginMX
- Primary Housing Material Aluminum
- Max Current Color (mA) 500
- Wireless No
- Feature: Audible No
- Power AC
- Animation Option 1 Solid On
- Storage Temp (°C) -40 to 70
- Pro-Editor Compatible (Discrete) No
- Product Size (mm) 32
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Min Op. Temperature (°C) -25
- Power Source AC
- Color Technology Standard LED
- Environmental Rating IP50
- Feature: Quick Disconnect Yes
- Illumination Yes
- Connection Integral QD
- Primary Window Material Polycarbonate Diffused
- IO Link No
- Housing Style Linear Strip
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Eye Shield Yes
- Illumination Switch Function Motion Activated
- Number of Input Pins/Conductors 3
- Feature: Chemical Resistant No
- Number of Colors / Segments 1
- Physical Dimensions (LxWxH or DxH mm) 1214.0 x 38.3 x 50.1
- Max Op. Temperature (°C) 45
- Modbus RTU No
- Mounting Thread No Thread
- Lumens Color 1 3000
- Illuminated Length (LxWxH mm) 1130.0
- Feature: Hazardous Area No
- Color Option 1 White
- Supply Voltage 90-264 V ac
- Feature: Cascade Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLB32ZC1130EMQM Description

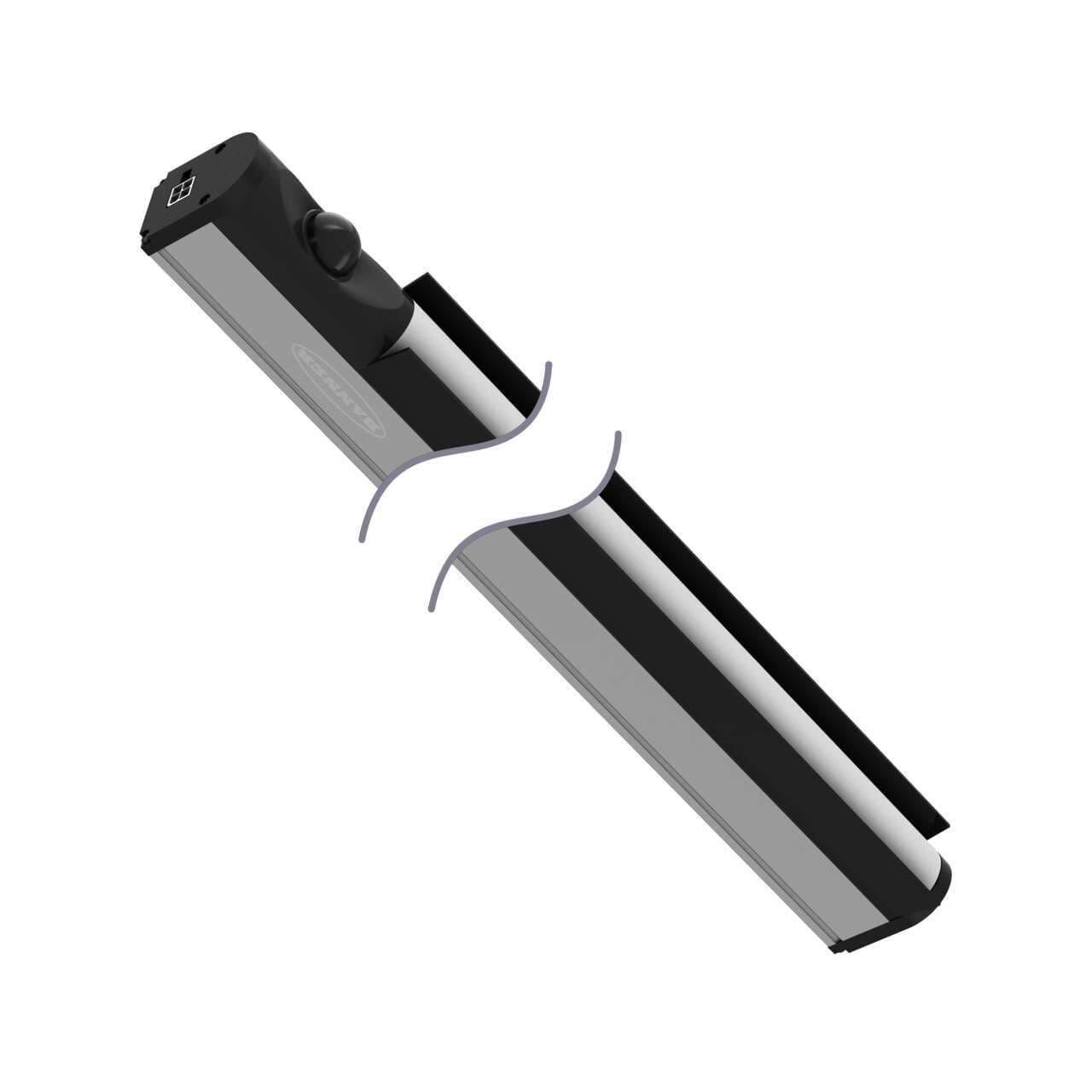

Banner Engineering WLB32ZC1130EMQM is a cascadable industrial LED workstation light bar designed with a motion sensing eye shield for 1-color Daylight White (DW) LED illumination. It operates on a supply voltage range of 90Vac-264Vac, accommodating 120Vac, 220Vac, 230Vac, and 240Vac inputs. This task light measures L1130mm x W32mm and is constructed with a polycarbonate (PC) diffused window and an aluminium housing, ensuring durability. It features a pre-equipped plug-in connector for easy installation and is designed in a linear lighting shape. With a degree of protection rated at IP50, it is suitable for environments with an ambient air temperature range of -25°C to +45°C. The WLB32ZC1130EMQM includes 1 x digital input (100-240Vac) for color control, consumes 500mA of current, and provides a luminous flux of 3000 lm (lumens).
