WLB32C850PBQ Banner Light Bars
Part#:WLB32C850PBQ
Manufacturer:Banner
Alt. Part#:87483
Product Lifecycle:Active
Get a quick Quote!
WLB32 Work Light Bar; Switched Hi/Low/Off; Length: 850 mm; Voltage: 12-30 V dc; Environmental Rating: IP50; Color: White; Cascadable; 4-pin M12 Integral QD; Diffuse Window
About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLB32C850PBQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight612.3492 g
- Country Of OriginMX
- Number of Colors / Segments 1
- Color Option 1 White
- Storage Temp (°C) -40 to 70
- Feature: Chemical Resistant No
- Power Source DC
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Number of Input Pins/Conductors 4
- Illumination Switch Function I=Low; O=OFF; II=High
- Power DC
- Animation Option 1 Solid On
- Supply Voltage 12-30 V dc
- Feature: Hazardous Area No
- Quick Disconnect Type M12 (Euro)
- Physical Dimensions (LxWxH or DxH mm) 884.0 x 31.9 x 46.0
- Feature: Audible No
- Primary Housing Material Aluminum
- Lumens Color 1 2250
- Primary Window Material Polycarbonate Diffused
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Product Size (mm) 32
- Illuminated Length (LxWxH mm) 850.0
- Mounting Thread No Thread
- Connection Integral QD
- Max Op. Temperature (°C) 70
- IO Link No
- Illumination Yes
- Color Technology Standard LED
- Environmental Rating IP50
- Wireless No
- Housing Style Linear Strip
- Dimming Option High-Low-Off
- Min Op. Temperature (°C) -40
- Feature: Cascade Yes
- Modbus RTU No
- Pro-Editor Compatible (Discrete) No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLB32C850PBQ Description

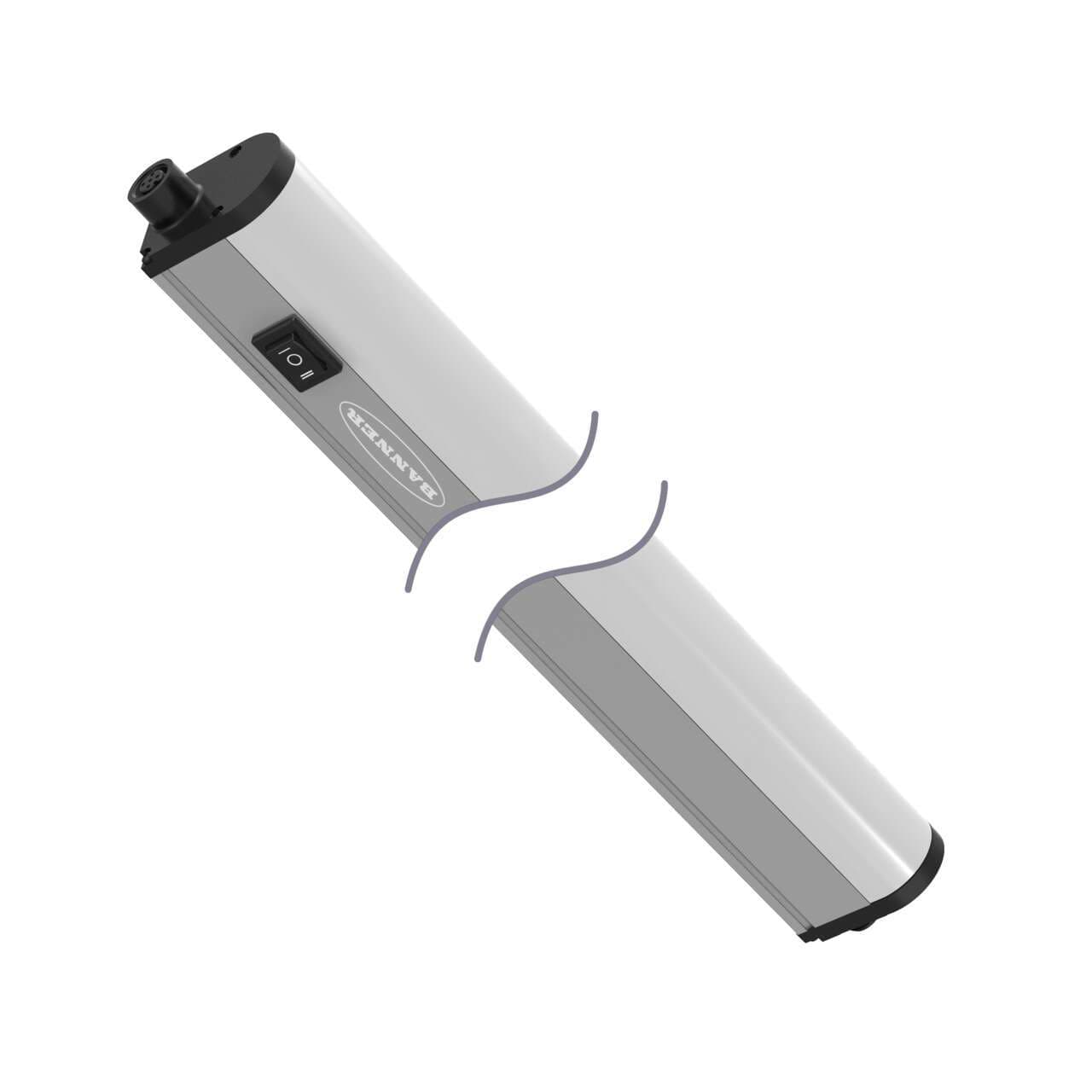

Banner Engineering WLB32C850PBQ is a cascadable industrial LED workstation task light bar designed for a variety of lighting needs. It features a high/low/off switch and provides 1-color Daylight White (DW) LED illumination. This task light operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. It measures 850mm in length and 32mm in width. The construction includes a polycarbonate diffused window and an aluminium housing, ensuring durability. It comes pre-equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector for easy installation. The linear lighting shape is designed to fit a wide range of applications. It offers a degree of protection rated at IP50 and can operate in ambient air temperatures ranging from -40°C to +70°C. The task light also features 1 x digital input (12Vdc / 24Vdc) for color control, consumes 2.4A of current, and delivers a luminous flux of 2250 lumens.
Related documents WLB32C850PBQ Specs
