WLB32ZC570PBQMB Banner Light Bars
Part#:WLB32ZC570PBQMB
Manufacturer:Banner
Alt. Part#:87494
Product Lifecycle:Active
In-stock parts: 70
Jun 19, 2025
WLB32 Work Light Bar; Switched Hi/Low/Off; Length: 570 mm; Voltage: 90-264 V ac; Environmental Rating: IP50; Color: White; Cascadable; QD - Includes Type B Power cord; Diffuse window
About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the WLB32ZC570PBQMB Banner price in the box on the right side or send a quick quote.
Product Details
- Weight748.4268 g
- Country Of OriginMX
- Power Source AC
- Connection Integral QD
- Environmental Rating IP50
- Modbus RTU No
- Number of Colors / Segments 1
- Illumination Yes
- Lumens Color 1 1500
- Max Op. Temperature (°C) 45
- Pro-Editor Compatible (Discrete) No
- Power AC
- Animation Option 1 Solid On
- Illuminated Length (LxWxH mm) 570.0
- Feature: Audible No
- Primary Housing Material Aluminum
- Supply Voltage 90-264 V ac
- Illumination Switch Function I=Low; O=OFF; II=High
- Mounting Thread No Thread
- Color Technology Standard LED
- Primary Window Material Polycarbonate Diffused
- Product Size (mm) 32
- Color 1 - Wavelength/Color Temp/Coordinates 5000K (Daylight)
- Storage Temp (°C) -40 to 70
- IO Link No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Dimming Option High-Low-Off
- Min Op. Temperature (°C) -25
- Wireless No
- Housing Style Linear Strip
- Color Option 1 White
- Feature: Cascade Yes
- Number of Input Pins/Conductors 3
- Feature: Hazardous Area No
- Physical Dimensions (LxWxH or DxH mm) 580.0 x 32.0 x 46.0
- Feature: Chemical Resistant No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
WLB32ZC570PBQMB Description

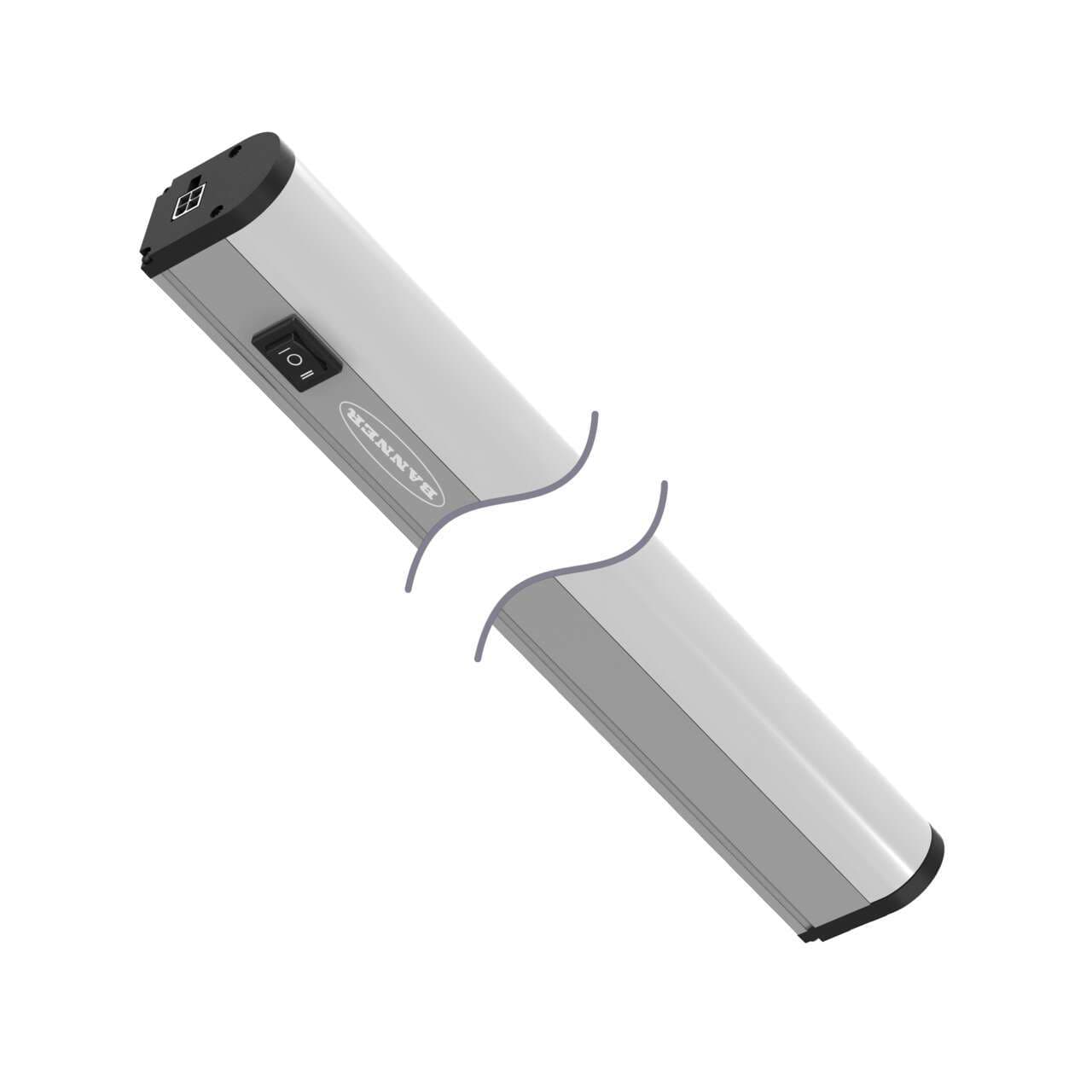

Banner Engineering WLB32ZC570PBQMB is a cascadable industrial LED workstation task light bar designed for a variety of lighting needs. It features a high/low/off switch type B power cord and provides 1-color Daylight White (DW) LED illumination. The supply voltage ranges from 90Vac to 264Vac, accommodating 120Vac, 220Vac, 230Vac, and 240Vac systems. This task light measures 570mm in length and 32mm in width, with a polycarbonate (PC) diffused window and an aluminium housing for durability. It comes pre-wired with a 1.8m / 5.9ft power cord terminated with a plug suitable for North & Central America, Japan, and Taiwan. The linear lighting shape is designed for easy integration into workspaces, and it has an IP50 degree of protection, making it resistant to dust. It operates within an ambient air temperature range of -25°C to +45°C. The task light also features 1 x digital input (100-240Vac) for color control, consumes 250mA of current, and delivers a luminous flux of 1500 lumens.
Related documents WLB32ZC570PBQMB Specs
