SP350GYRA120 Banner Signal Beacons
Part#:SP350GYRA120
Manufacturer:Banner
Alt. Part#:13187
Product Lifecycle:Active
Get a quick Quote!
EZ-LIGHT Traffic Series: 3-Indicator Daylight Visible; Voltage: 85-130 V ac; Housing: Polycarbonate; IP65; Colors: Green Yellow Red; Field Wireable
About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SP350GYRA120 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight668.594608 g
- Country Of OriginUS
- Housing Style Flat Mount - Signal Light
- Lumens Color 1 57.0
- Max Current Color (mA) 16
- Power DC or AC
- Connection Terminal
- Lumens Color 3 20.0
- Min Op. Temperature (°C) -40
- Power Source DC or AC
- Animation Option 1 Solid On
- Color 3 - Wavelength/Color Temp/Coordinates 625 nm
- Environmental Rating IP65
- Pro-Editor Compatible (Discrete) No
- Primary Housing Material Polycarbonate
- Color Option 1 Green
- Number of Input Pins/Conductors 4
- Feature: Audible No
- Indication Yes
- Color Technology Standard LED
- Color Option 3 Red
- Max Op. Temperature (°C) 50
- Application: Traffic Light Yes
- Mounting Thread No Thread
- Color 1 - Wavelength/Color Temp/Coordinates 528 nm
- Input Type AC
- Feature: Chemical Resistant No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Option 2 Yellow
- Supply Voltage 85-130 V ac/75-120 V dc
- Number of Colors / Segments 3
- Lumens Color 2 14.0
- Physical Dimensions (LxWxH or DxH mm) 195.0 x 80.0 x 105.2
- Multi-Color Device Simultaneous Colors On
- Product Size (mm) Other
- Color 2 - Wavelength/Color Temp/Coordinates 590 nm
- Max Input Response Time (ms) 10
- Indication Intensity High Brightness & Daylight Visible
- Feature: Hazardous Area No
- Wireless No
- IO Link No
- Feature: Quick Disconnect No
- Modbus RTU No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SP350GYRA120 Description

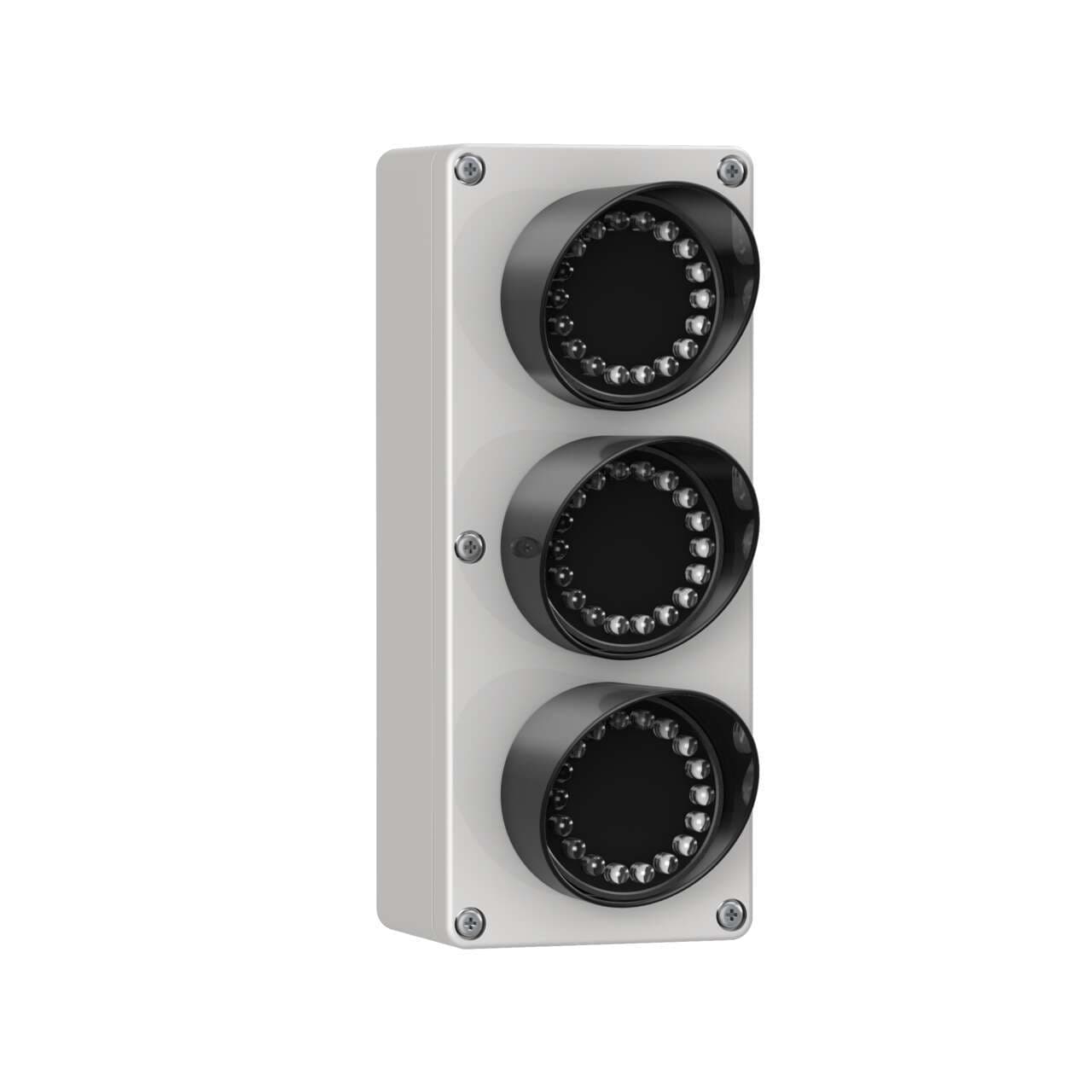

Banner Engineering SP350GYRA120, part of the EZ-LIGHT series, is a traffic light designed with a 3-tiers 3-color G+Y+R color pattern LED illumination. This LED traffic signal light features a polycarbonate (PC) base and a gray housing. It offers a screw-clamp terminal connection for secure installation. The SP350GYRA120 operates on a supply voltage range of 85Vac-130Vac (100Vac / 110Vac / 120Vac nominal) for AC and 75Vdc-120Vdc (110Vdc nominal) for DC, making it versatile for various power supply systems. It supports surface or wall mounting modes, ensuring flexibility in installation locations. The ambient air temperature for operation ranges from -40°C to +50°C, suitable for a wide range of environmental conditions. With an IP65 degree of protection, it is safeguarded against dust ingress and low-pressure water jets from any direction. The shape is specifically designed for traffic light applications, and it has a current consumption of 16mA. Additionally, it includes 3 x digital inputs (85-130Vac / 75-120Vdc) for color control, allowing for precise operation and signaling.
