SP350RRRP Banner Electronic Components
Part#:SP350RRRP
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

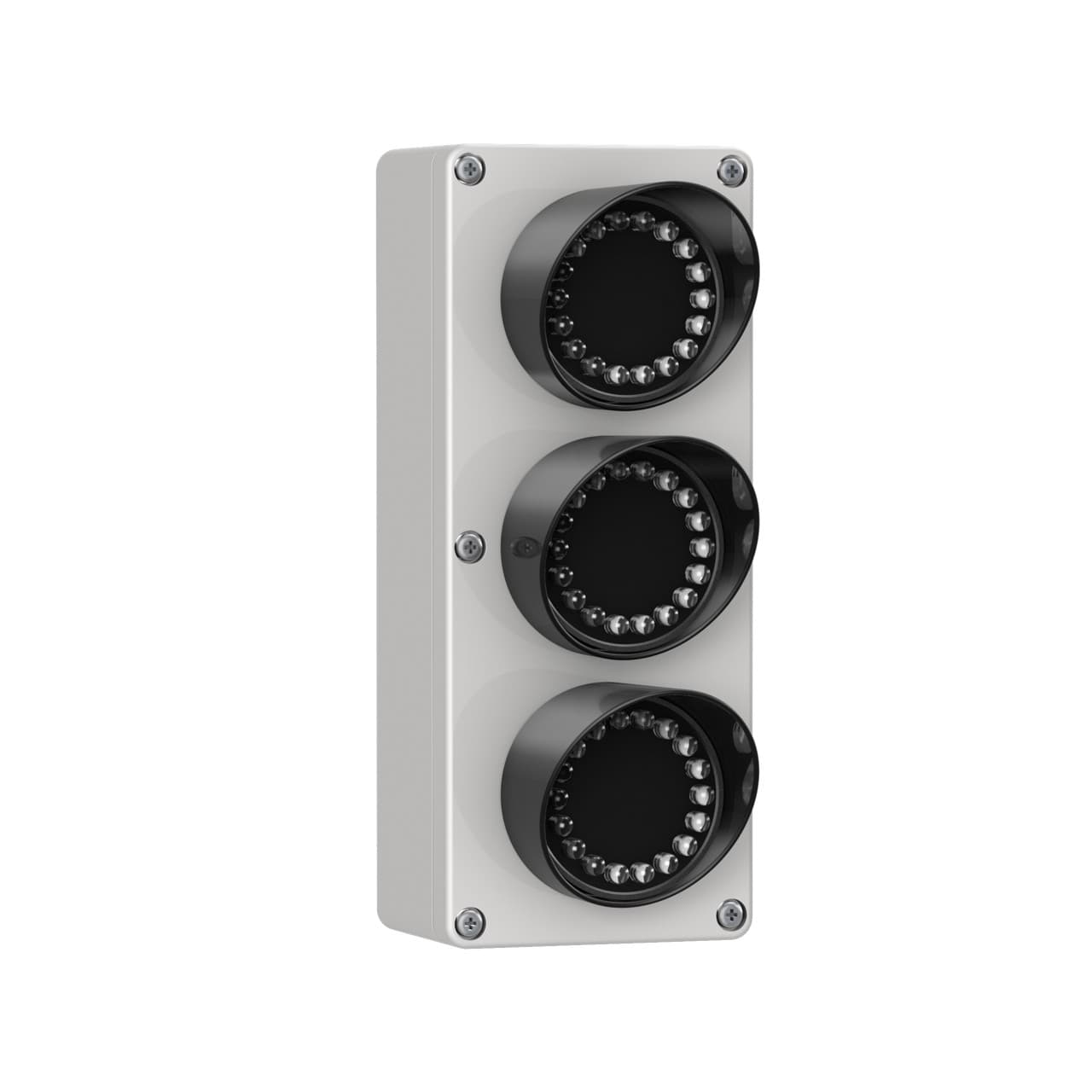

EZ-LIGHT Traffic Series: 3-Indicator Daylight Visible, Voltage: 15-30 V dc; Housing: Polycarbonate; IP65, Input: PNP; Colors: Red Red Red, Field Wireable
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SP350RRRP Banner price in the box on the right side or send a quick quote.
Product Details
- Power Source DC
- Lumens Color 3 20.0
- Input Type PNP
- Feature: Chemical Resistant No
- Mounting Thread No Thread
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Number of Input Pins/Conductors 4
- Indication Intensity High Brightness & Daylight Visible
- Color Technology Standard LED
- Color 1 - Wavelength/Color Temp/Coordinates 625 nm
- Supply Voltage 15-30 V dc
- Wireless No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Connection Terminal
- Environmental Rating IP65
- Multi-Color Device Simultaneous Colors On
- Indication Yes
- Housing Style Flat Mount - Signal Light
- Color 3 - Wavelength/Color Temp/Coordinates 625 nm
- Max Op. Temperature (°C) 50
- Pro-Editor Compatible (Discrete) No
- Lumens Color 1 20.0
- Max Current Color (mA) 120
- Min Op. Temperature (°C) -40
- Product Size (mm) Other
- Color Option 1 Red
- Feature: Audible No
- Feature: Quick Disconnect No
- Power DC
- Color Option 2 Red
- Max Input Response Time (ms) 10
- Application: Traffic Light Yes
- Number of Colors / Segments 3
- Lumens Color 2 20.0
- Feature: Hazardous Area No
- Modbus RTU No
- Primary Housing Material Polycarbonate
- Color Option 3 Red
- Physical Dimensions (LxWxH or DxH mm) 195.0 x 80.0 x 105.2
- IO Link No
