SP350YYYPQ Banner Electronic Components
Part#:SP350YYYPQ
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

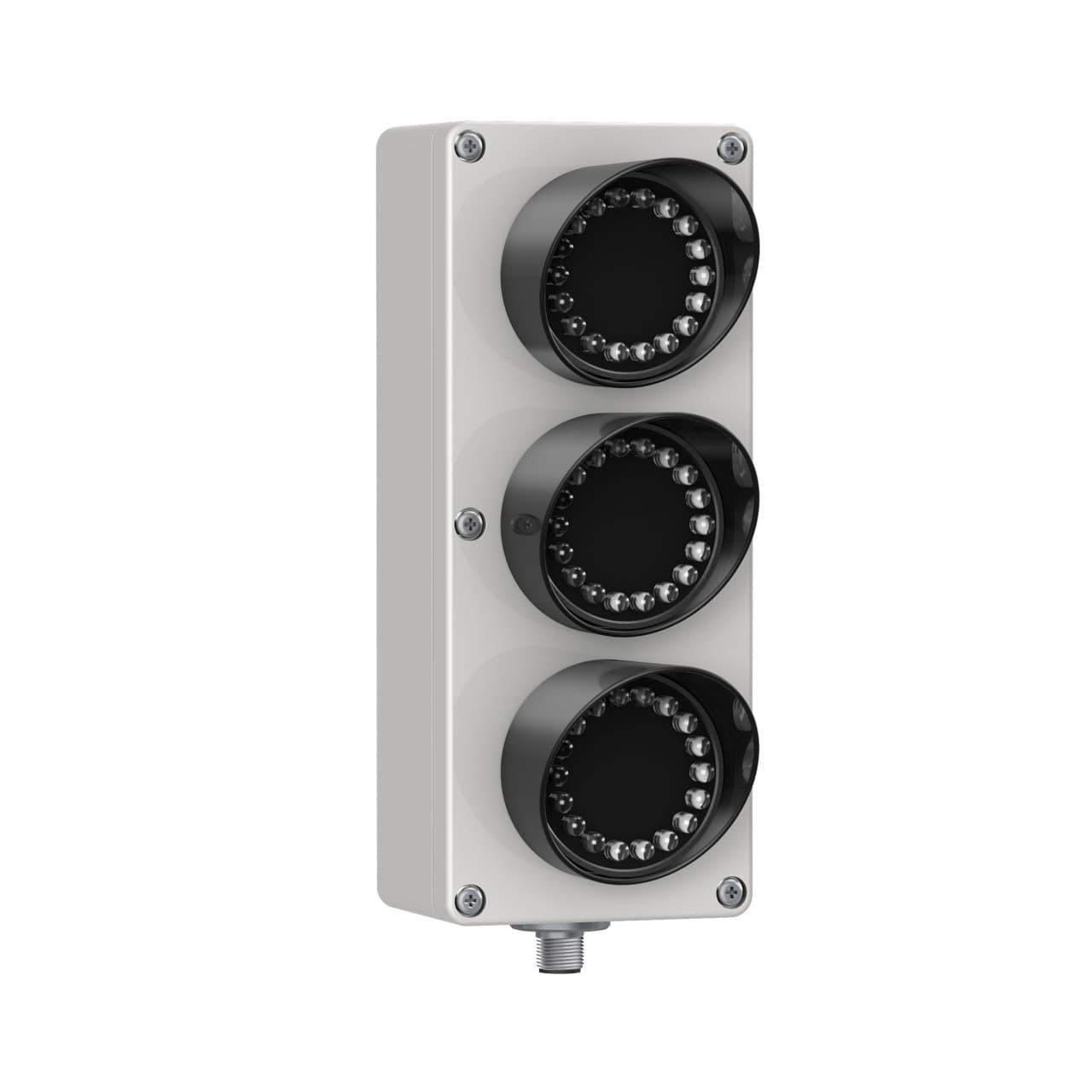

Banner Engineering SP350YYYPQ, part of the EZ-LIGHT series, is a traffic light designed with a 3-tiers 1-color Y+Y+Y color pattern LED illumination. This LED traffic signal light features a polycarbonate (PC) base and is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. The housing is gray, and it operates on a supply voltage of 15Vdc-30Vdc (24Vdc nom.). It can be mounted on surfaces or walls and is designed to operate in ambient air temperatures ranging from -40°C to +50°C. With an IP65 degree of protection, it is safeguarded against dust and low-pressure water jets from any direction. The shape is specifically designed to resemble a traffic light, and it has a current consumption of 120mA. Additionally, it includes 3 x digital inputs (15-30Vdc; PNP) for color control.
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SP350YYYPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Housing Style Flat Mount - Signal Light
- Color 3 - Wavelength/Color Temp/Coordinates 590 nm
- Connection Integral QD
- Min Op. Temperature (°C) -40
- Indication Yes
- Color 1 - Wavelength/Color Temp/Coordinates 590 nm
- Supply Voltage 15-30 V dc
- Feature: Audible No
- Primary Housing Material Polycarbonate
- Animation Option 1 Solid On
- Number of Input Pins/Conductors 4
- Mounting Thread No Thread
- Quick Disconnect Type M12 (Euro)
- Lumens Color 2 14.0
- Input Type PNP
- Indication Intensity High Brightness & Daylight Visible
- Color Option 1 Yellow
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Lumens Color 3 14.0
- Max Input Response Time (ms) 10
- Power Source DC
- Product Size (mm) Other
- Color Option 3 Yellow
- Max Op. Temperature (°C) 50
- Cable Length (m) 2
- Color Option 2 Yellow
- Physical Dimensions (LxWxH or DxH mm) 210.0 x 80.0 x 105.2
- Multi-Color Device Simultaneous Colors On
- Number of Colors / Segments 3
- Lumens Color 1 14.0
- Max Current Color (mA) 120
- Feature: Hazardous Area No
- Application: Traffic Light Yes
- Color Technology Standard LED
- Power DC
- Color 2 - Wavelength/Color Temp/Coordinates 590 nm
- Environmental Rating IP65
- Feature: Quick Disconnect Yes
- Wireless No
- IO Link No
- Modbus RTU No
- Feature: Chemical Resistant No
- Pro-Editor Compatible (Discrete) No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
1-year warranty
