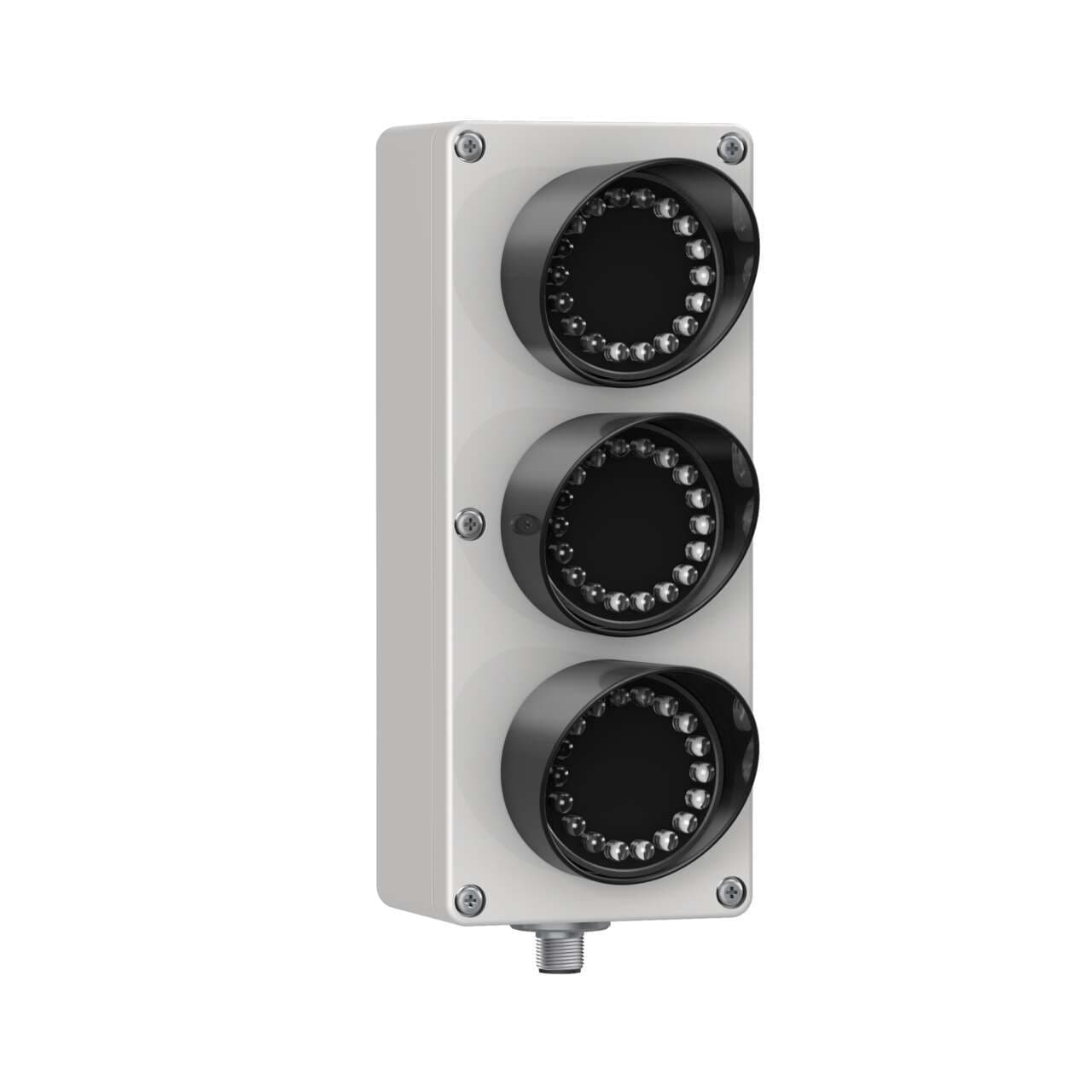

SP350BGRPQ Banner Signal Beacons

Banner SP350BGRPQ EZ-LIGHT Traffic Series: 3-Indicator Daylight Visible; Voltage: 15-30 V dc; Housing: Polycarbonate; IP65; Input: PNP; Colors: Blue Green Red; 4-pin M12 Integral QD
Banner

Part#:SP350BGRPQ

Manufacturer:Banner

Alt. Part#:800272

Product Lifecycle:Active

Get a quick Quote!

EZ-LIGHT Traffic Series: 3-Indicator Daylight Visible; Voltage: 15-30 V dc; Housing: Polycarbonate; IP65; Input: PNP; Colors: Blue Green Red; 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SP350BGRPQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight635.0288 g
  • Country Of OriginUS
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Animation Option 1
    Solid On
  • Color Option 3
    Red
  • Environmental Rating
    IP65
  • Application: Traffic Light
    Yes
  • Primary Housing Material
    Polycarbonate
  • Product Size (mm)
    Other
  • Color 2 - Wavelength/Color Temp/Coordinates
    528 nm
  • Power
    DC
  • Lumens Color 1
    12.0
  • Physical Dimensions (LxWxH or DxH mm)
    210.0 x 80.0 x 105.2
  • Indication Intensity
    High Brightness & Daylight Visible
  • Mounting Thread
    No Thread
  • Quick Disconnect Type
    M12 (Euro)
  • Lumens Color 3
    20.0
  • Feature: Quick Disconnect
    Yes
  • Power Source
    DC
  • Color 1 - Wavelength/Color Temp/Coordinates
    475 nm
  • Max Input Response Time (ms)
    10
  • Feature: Chemical Resistant
    No
  • Indication
    Yes
  • Color Technology
    Standard LED
  • Max Current Color (mA)
    120
  • Color 3 - Wavelength/Color Temp/Coordinates
    625 nm
  • Housing Style
    Flat Mount - Signal Light
  • Modbus RTU
    No
  • Number of Colors / Segments
    3
  • Color Option 2
    Green
  • Number of Input Pins/Conductors
    4
  • Feature: Hazardous Area
    No
  • Wireless
    No
  • Cable Length (m)
    0.15
  • Connection
    Integral QD
  • Supply Voltage
    15-30 V dc
  • Multi-Color Device
    Simultaneous Colors On
  • Min Op. Temperature (°C)
    -40
  • Feature: Audible
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Input Type
    PNP
  • Max Op. Temperature (°C)
    50
  • Color Option 1
    Blue
  • IO Link
    No
  • Lumens Color 2
    57.0

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

SP350BGRPQ Description

EZ-LIGHT Traffic Series: 3-Indicator Daylight Visible, Voltage: 15-30V dc; Housing: Polycarbonate; IP65, Input: PNP; Colors: Blue Green Red, Euro 4-pin integral connector

Related documents SP350BGRPQ Specs

SP350BGRPQ 148879.pdf
