SP350GRYPQ Banner Electronic Components
Part#:SP350GRYPQ
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

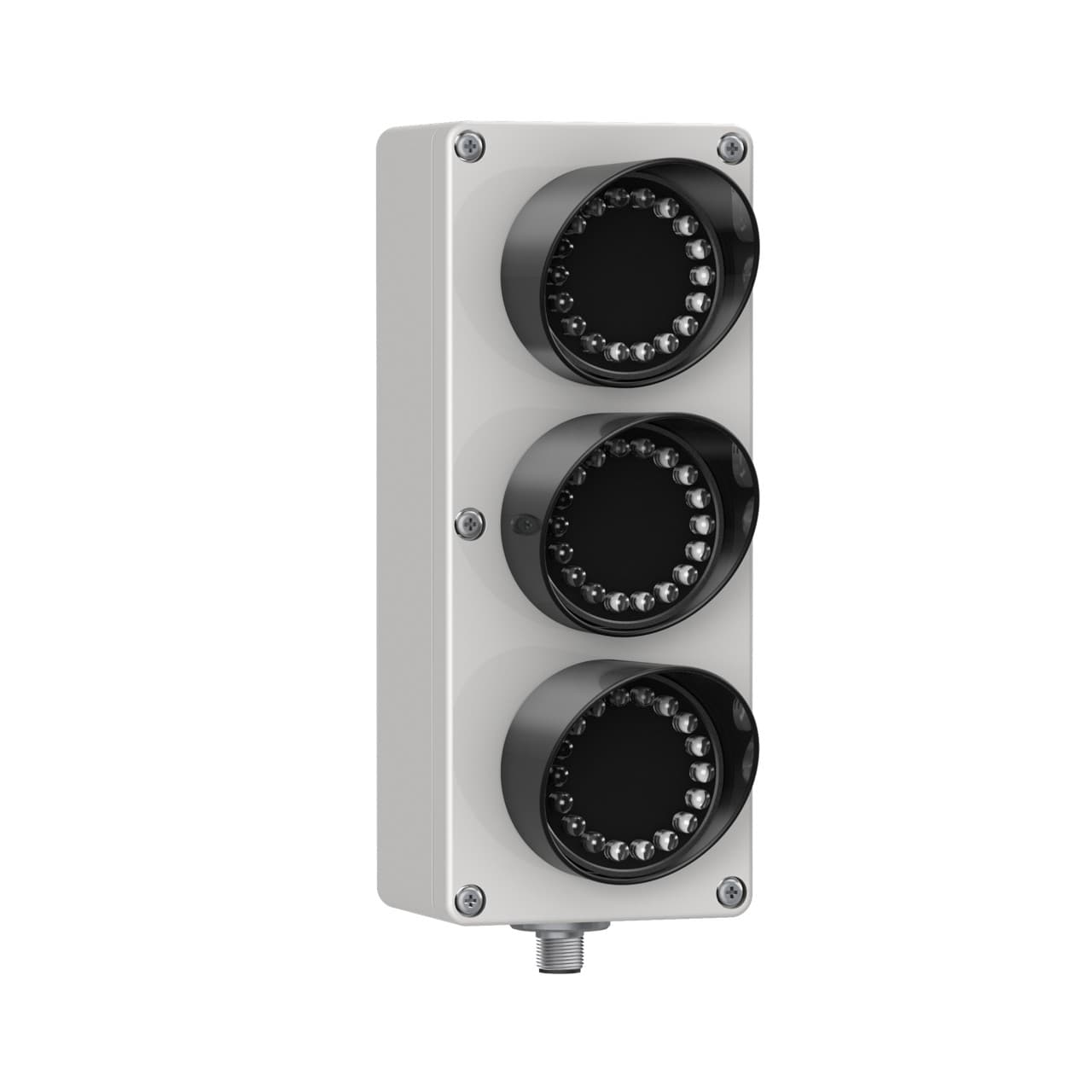

Banner Engineering SP350GRYPQ is a traffic light from the EZ-LIGHT series featuring a 3-tier design with a 3-color G+R+Y (Green, Red, Yellow) LED illumination pattern. This LED traffic signal light is constructed with a polycarbonate (PC) base and comes in a gray housing. It is pre-equipped with a 4-pin M12 Euro-style quick disconnect (QD) connector for connectivity. Designed for surface or wall mounting, the SP350GRYPQ operates on a supply voltage of 15Vdc to 30Vdc, with 24Vdc nominal. It is suitable for ambient air temperatures ranging from -40°C to +50°C. This traffic light offers an IP65 degree of protection against dust and water ingress, ensuring its suitability for various environmental conditions. It has a current consumption of 120mA and includes 3 digital inputs (15-30Vdc; PNP) for color control.
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SP350GRYPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Product Size (mm) Other
- Quick Disconnect Type M12 (Euro)
- Supply Voltage 15-30 V dc
- Feature: Chemical Resistant No
- Number of Colors / Segments 3
- Color 3 - Wavelength/Color Temp/Coordinates 590 nm
- Color Option 2 Red
- Max Op. Temperature (°C) 50
- Power DC
- Connection Integral QD
- Lumens Color 3 14.0
- Feature: Hazardous Area No
- Modbus RTU No
- Primary Housing Material Polycarbonate
- Color Option 1 Green
- Max Current Color (mA) 120
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 1 - Wavelength/Color Temp/Coordinates 528 nm
- Input Type PNP
- IO Link No
- Indication Yes
- Lumens Color 1 57.0
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Max Input Response Time (ms) 10
- Housing Style Flat Mount - Signal Light
- Animation Option 1 Solid On
- Number of Input Pins/Conductors 4
- Feature: Audible No
- Power Source DC
- Color Technology Standard LED
- Color Option 3 Yellow
- Physical Dimensions (LxWxH or DxH mm) 210.0 x 80.0 x 105.2
- Mounting Thread No Thread
- Lumens Color 2 20.0
- Min Op. Temperature (°C) -40
- Environmental Rating IP65
- Feature: Quick Disconnect Yes
- Pro-Editor Compatible (Discrete) No
- Application: Traffic Light Yes
- Multi-Color Device Simultaneous Colors On
- Wireless No
- Indication Intensity High Brightness & Daylight Visible
