SP350GRGA120 Banner Electronic Components
Part#:SP350GRGA120
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

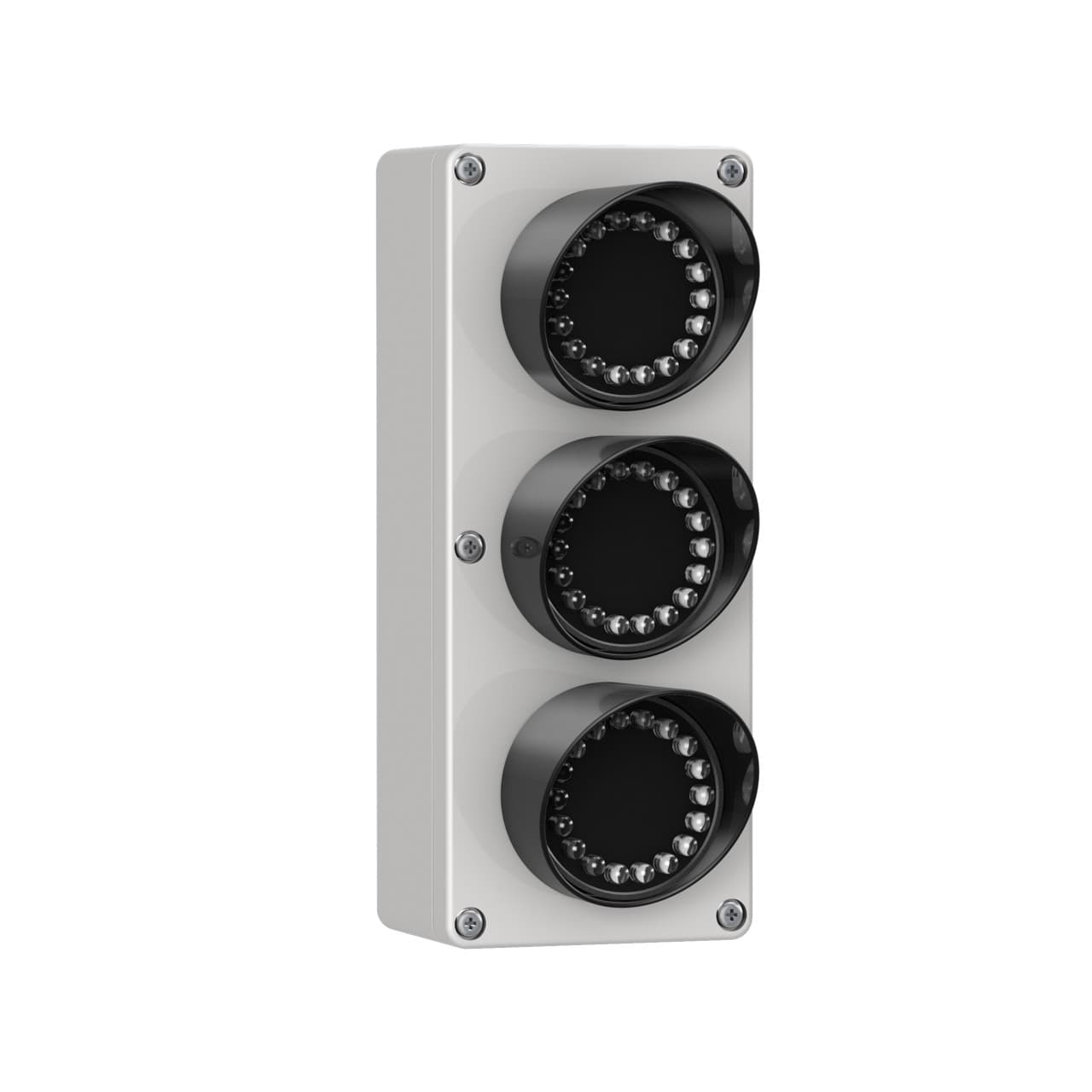

Banner Engineering SP350GRGA120, part of the EZ-LIGHT series, is a traffic light designed with a 3-tiers 2-color G+R+G color pattern LED illumination. This LED traffic signal light features a polycarbonate (PC) base and a gray housing, ensuring durability and visibility. It offers a screw-clamp terminal connection for secure installation and is designed for both surface and wall mounting modes. The SP350GRGA120 operates on a supply voltage range of 85Vac-130Vac (100Vac / 110Vac / 120Vac nominal) for AC and 75Vdc-120Vdc (110Vdc nominal) for DC, with a current consumption of 16mA. It is equipped with 3 digital inputs (85-130Vac / 75-120Vdc) for color control, allowing for flexible operation. The device operates efficiently in ambient air temperatures ranging from -40°C to +50°C and is protected against dust and low-pressure water jets with an IP65 degree of protection.
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SP350GRGA120 Banner price in the box on the right side or send a quick quote.
Product Details
- Power Source DC or AC
- Animation Option 1 Solid On
- Lumens Color 3 57.0
- Feature: Hazardous Area No
- Feature: Quick Disconnect No
- Primary Housing Material Polycarbonate
- Lumens Color 2 20.0
- Supply Voltage 85-130 V ac/75-120 V dc
- Indication Intensity High Brightness & Daylight Visible
- Product Size (mm) Other
- Lumens Color 1 57.0
- Number of Input Pins/Conductors 4
- Min Op. Temperature (°C) -40
- Modbus RTU No
- Color Technology Standard LED
- Color Option 3 Green
- Environmental Rating IP65
- IO Link No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Option 2 Red
- Physical Dimensions (LxWxH or DxH mm) 195.0 x 80.0 x 105.2
- Mounting Thread No Thread
- Color Option 1 Green
- Max Current Color (mA) 16
- Max Op. Temperature (°C) 50
- Number of Colors / Segments 3
- Color 1 - Wavelength/Color Temp/Coordinates 528 nm
- Input Type AC
- Feature: Chemical Resistant No
- Pro-Editor Compatible (Discrete) No
- Housing Style Flat Mount - Signal Light
- Power DC or AC
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Max Input Response Time (ms) 10
- Indication Yes
- Connection Terminal
- Color 3 - Wavelength/Color Temp/Coordinates 528 nm
- Feature: Audible No
- Multi-Color Device Simultaneous Colors On
- Wireless No
- Application: Traffic Light Yes
