SP350WWWA120 Banner Electronic Components
Part#:SP350WWWA120
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

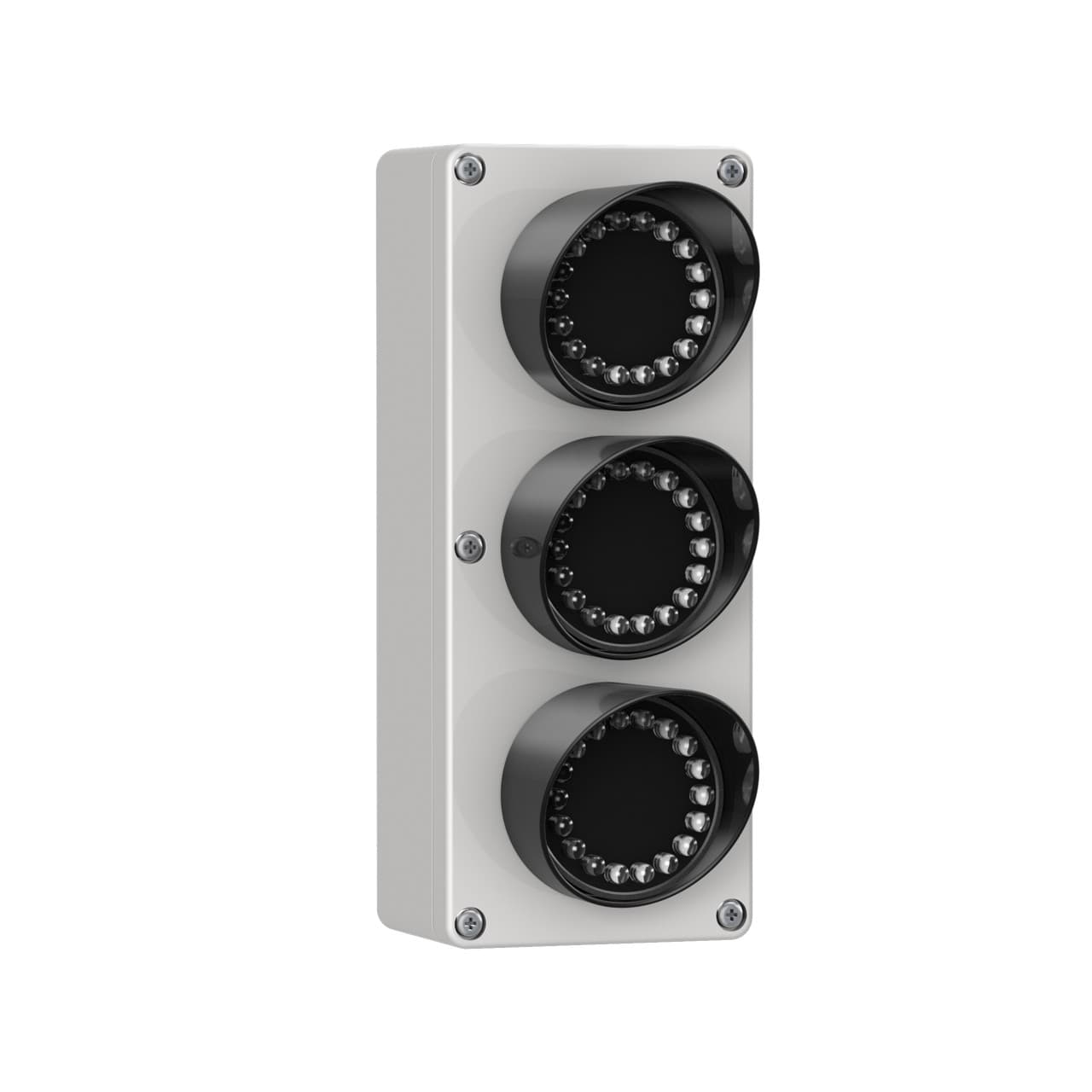

EZ-LIGHT Traffic Series: 3-Indicator Daylight Visible, Voltage: 85-130 V ac; Housing: Polycarbonate; IP65, Colors: White White White, Field Wireable86700
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SP350WWWA120 Banner price in the box on the right side or send a quick quote.
Product Details
- Power DC or AC
- Housing Style Flat Mount - Signal Light
- Connection Terminal
- Color 3 - Wavelength/Color Temp/Coordinates 6000K
- Min Op. Temperature (°C) -40
- Application: Traffic Light Yes
- Product Size (mm) Other
- Color Technology Standard LED
- Supply Voltage 85-130 V ac/75-120 V dc
- Feature: Audible No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Lumens Color 2 20.0
- Max Current Color (mA) 16
- Indication Intensity High Brightness & Daylight Visible
- Mounting Thread No Thread
- Lumens Color 1 20.0
- Lumens Color 3 20.0
- Environmental Rating IP65
- Multi-Color Device Simultaneous Colors On
- Indication Yes
- Number of Colors / Segments 3
- Color Option 3 White
- Physical Dimensions (LxWxH or DxH mm) 195.0 x 80.0 x 105.2
- Feature: Quick Disconnect No
- Primary Housing Material Polycarbonate
- Color Option 1 White
- Color 2 - Wavelength/Color Temp/Coordinates 6000K
- Input Type AC
- Power Source DC or AC
- Color 1 - Wavelength/Color Temp/Coordinates 6000K
- Number of Input Pins/Conductors 4
- Max Op. Temperature (°C) 50
- Color Option 2 White
- Animation Option 1 Solid On
- Max Input Response Time (ms) 10
- Feature: Hazardous Area No
- Pro-Editor Compatible (Discrete) No
- IO Link No
- Wireless No
- Modbus RTU No
- Feature: Chemical Resistant No
