S18LWXXPQP Banner Signal Beacons

Banner S18LWXXPQP S18 EZ-LIGHT - 18 mm - IP67; Single Color: White; 10-30 V dc PNP Input; 6 in 4-pin M12 Pigtail QD
Banner

Part#:S18LWXXPQP

Manufacturer:Banner

Alt. Part#:20993

Product Lifecycle:Active

Get a quick Quote!

S18 EZ-LIGHT - 18 mm - IP67; Single Color: White; 10-30 V dc PNP Input; 6 in 4-pin M12 Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the S18LWXXPQP Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight63.50288 g
  • Country Of OriginCN
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Animation Option 1
    Solid On
  • NEMA Type and UL Type Rating
    NEMA and UL 4X, 13
  • Primary Housing Color
    Black
  • Product Size (mm)
    18
  • Lumens Color 1
    4.0
  • Input Type
    PNP
  • Feature: Hazardous Area
    No
  • Modbus RTU
    No
  • Mounting Thread
    M18 x 1.0
  • Connection
    Pigtail QD
  • Physical Dimensions (LxWxH or DxH mm)
    23.5 x 35.7
  • Feature: Chemical Resistant
    No
  • Power Source
    DC
  • Color Technology
    Standard LED
  • Number of Input Pins/Conductors
    4
  • Primary Window Material
    Polycarbonate Diffused
  • Multi-Color Device
    Single Color On
  • Housing Style
    Barrel Mount - Flat Window
  • Quick Disconnect Type
    M12 (Euro)
  • Max Input Response Time (ms)
    1
  • Feature: Washdown Rated
    Yes
  • Primary Housing Material
    Polycarbonate
  • Color Option 1
    White
  • Supply Voltage
    10-30 V dc
  • Min Op. Temperature (°C)
    -40
  • Wireless
    No
  • Power
    DC
  • Number of Colors / Segments
    1
  • Max Current Color (mA)
    25
  • IO Link
    No
  • Environmental Rating
    IP67; IP69
  • Indication
    Yes
  • Color 1 - Wavelength/Color Temp/Coordinates
    6000K
  • Max Op. Temperature (°C)
    50
  • Feature: Audible
    No
  • Pro-Editor Compatible (Discrete)
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

S18LWXXPQP Description

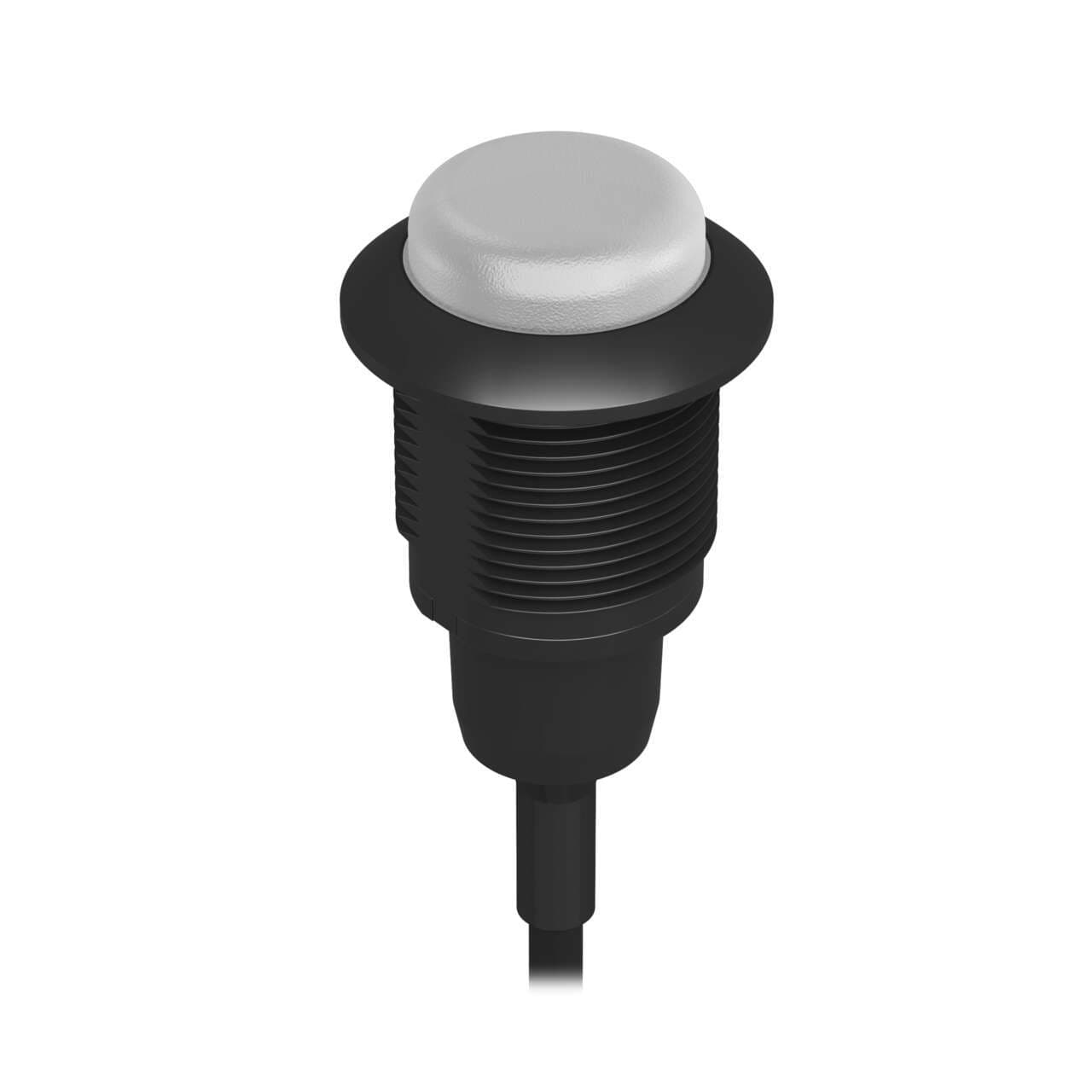

Banner Engineering S18LWXXPQP is a pilot light from the EZ-LIGHT series featuring 1-color White LED illumination designed for use as an LED pilot light indicator. It is constructed with a polycarbonate (PC) diffused window and a polycarbonate (PC) base, ensuring durability. This part has an 18mm indicator diameter and is pre-wired with a 6" / 15cm pigtail that terminates with a 4-pin M12 Euro-style QD connector for easy installation. The housing is black, and it operates on a supply voltage of 10Vdc-30Vdc (12Vdc-24Vdc nom.). It is designed for flush mounting in an 18mm hole with an M18 thread. The S18LWXXPQP can operate in ambient air temperatures ranging from -40°C to +50°C and offers a high degree of protection with ratings of IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. Its shape is characterized by a round protruding window and a threaded cylindrical barrel. The current consumption is 25mA, and it features 1 x digital input (10-30Vdc; PNP) for color control.

Related documents S18LWXXPQP Specs

S18LWXXPQP 160690.pdf
