S18LGYXP Banner Electronic Components
Part#:S18LGYXP
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

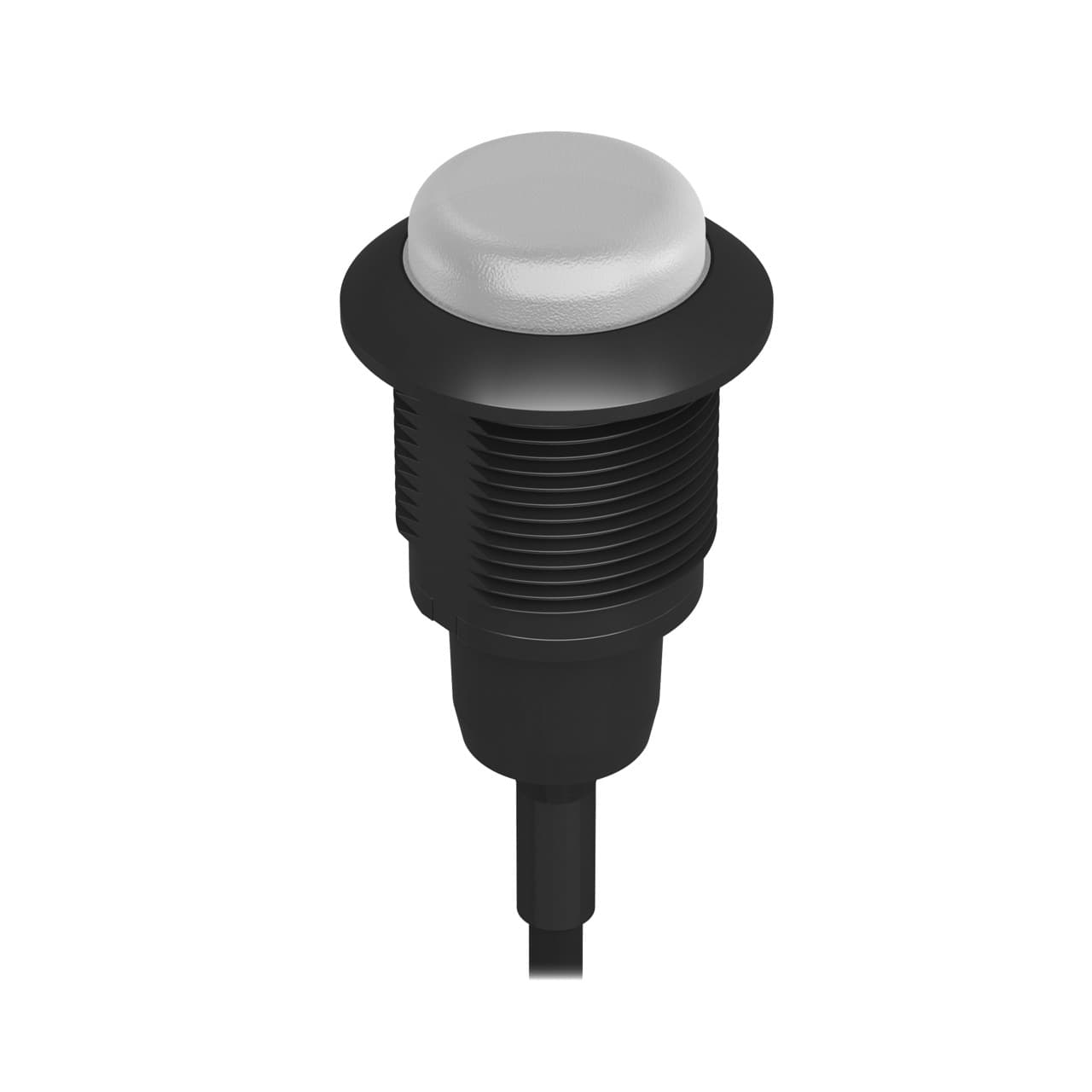

S18 EZ-LIGHT - 18 mm - IP67, Two Color: Green Yellow, 10-30 V dc PNP Input, 4 Wire 2 m Cable
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the S18LGYXP Banner price in the box on the right side or send a quick quote.
Product Details
- Number of Colors / Segments 2
- Product Size (mm) 18
- Lumens Color 2 0.80
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Multi-Color Device Single Color On
- Primary Housing Material Polycarbonate
- Animation Option 1 Solid On
- Color 2 - Wavelength/Color Temp/Coordinates 590 nm
- Physical Dimensions (LxWxH or DxH mm) 23.5 x 35.7
- Feature: Quick Disconnect No
- Wireless No
- Housing Style Barrel Mount - Flat Window
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Max Input Response Time (ms) 1
- Feature: Washdown Rated Yes
- Power Source DC
- Connection Cable
- Supply Voltage 10-30 V dc
- Min Op. Temperature (°C) -40
- Indication Yes
- Lumens Color 1 4.1
- Environmental Rating IP67; IP69
- Feature: Audible No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Option 2 Yellow
- Max Op. Temperature (°C) 50
- Feature: Chemical Resistant No
- Pro-Editor Compatible (Discrete) No
- IO Link No
- Mounting Thread M18 x 1.0
- Primary Housing Color Black
- Color Option 1 Green
- Input Type PNP
- Primary Window Material Polycarbonate Diffused
- Max Current Color (mA) 25
- Modbus RTU No
- Feature: Hazardous Area No
- Power DC
- Number of Input Pins/Conductors 4
- Color Technology Standard LED
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents S18LGYXP Specs
