S18LGXXPQ Banner Signal Beacons
Part#:S18LGXXPQ
Manufacturer:Banner
Alt. Part#:20922
Product Lifecycle:Active
Get a quick Quote!
S18 EZ-LIGHT - 18 mm - IP67; Single Color: Green; 10-30 V dc PNP Input; 4-pin M12 QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the S18LGXXPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight35.0173024 g
- Country Of OriginCN
- Indication Yes
- Quick Disconnect Type M12 (Euro)
- Physical Dimensions (LxWxH or DxH mm) 23.5 x 35.7
- Power DC
- Lumens Color 1 4.1
- Feature: Washdown Rated Yes
- Environmental Rating IP67; IP69
- Cable Length (m) 0.15
- Color Option 1 Green
- Input Type PNP
- Min Op. Temperature (°C) -40
- IO Link No
- Power Source DC
- Product Size (mm) 18
- Max Input Response Time (ms) 1
- Primary Window Material Polycarbonate Diffused
- Housing Style Barrel Mount - Flat Window
- Color Technology Standard LED
- Supply Voltage 10-30 V dc
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Modbus RTU No
- Primary Housing Material Polycarbonate
- Animation Option 1 Solid On
- Number of Input Pins/Conductors 4
- Multi-Color Device Single Color On
- Pro-Editor Compatible (Discrete) No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Connection Integral QD
- Max Op. Temperature (°C) 50
- Feature: Hazardous Area No
- Number of Colors / Segments 1
- Max Current Color (mA) 25
- Feature: Chemical Resistant No
- Mounting Thread M18 x 1.0
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Feature: Audible No
- Primary Housing Color Black
- Wireless No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
S18LGXXPQ Description

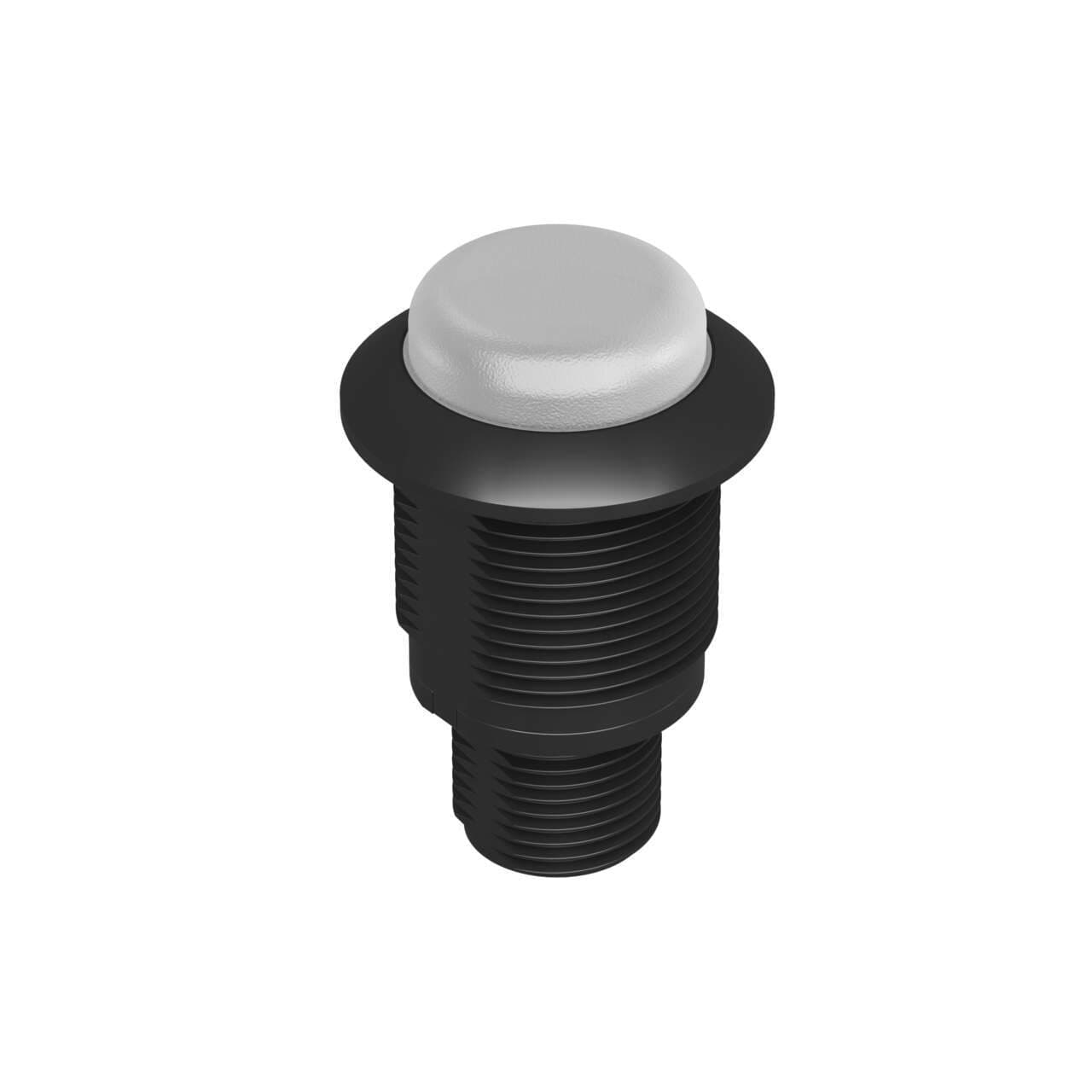

Banner Engineering S18LGXXPQ is a pilot light from the EZ-LIGHT series featuring 1-color Green LED illumination designed for use as an LED pilot light indicator. It is constructed with a polycarbonate (PC) diffused window and a polycarbonate (PC) base, ensuring durability. This part has an 18mm indicator diameter and comes pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. The housing is black, and it operates on a supply voltage range of 10Vdc-30Vdc (12Vdc-24Vdc nom.). It is designed for flush mounting in an 18mm hole with an M18 thread. The S18LGXXPQ can operate in ambient air temperatures ranging from -40°C to +50°C and offers a high degree of protection with ratings of IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. The shape is characterized by a round protruding window and a threaded cylindrical barrel. It has a current consumption of 25mA and includes 1 x digital input (10-30Vdc; PNP) for color control.
Related documents S18LGXXPQ Specs
