S18LGRXP Banner Signal Beacons

Banner S18LGRXP S18 EZ-LIGHT - 18 mm - IP67; Two Color: Green Red; 10-30 V dc PNP Input; 4-Wire 2 m Cable
Banner

Part#:S18LGRXP

Manufacturer:Banner

Alt. Part#:21184

Product Lifecycle:Active

Get a quick Quote!

S18 EZ-LIGHT - 18 mm - IP67; Two Color: Green Red; 10-30 V dc PNP Input; 4-Wire 2 m Cable

About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the S18LGRXP Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight81.64656 g
  • Country Of OriginCN
  • Product Size (mm)
    18
  • Color Technology
    Standard LED
  • Max Current Color (mA)
    25
  • Max Input Response Time (ms)
    1
  • Input Type
    PNP
  • Modbus RTU
    No
  • Primary Housing Material
    Polycarbonate
  • Color 2 - Wavelength/Color Temp/Coordinates
    625 nm
  • Feature: Washdown Rated
    Yes
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Color Option 2
    Red
  • NEMA Type and UL Type Rating
    NEMA and UL 4X, 13
  • Multi-Color Device
    Single Color On
  • Housing Style
    Barrel Mount - Flat Window
  • Lumens Color 2
    1.1
  • Number of Input Pins/Conductors
    4
  • Primary Window Material
    Polycarbonate Diffused
  • Power
    DC
  • Color Option 1
    Green
  • Supply Voltage
    10-30 V dc
  • Primary Housing Color
    Black
  • Number of Colors / Segments
    2
  • Lumens Color 1
    4.1
  • Environmental Rating
    IP67; IP69
  • Feature: Chemical Resistant
    No
  • Indication
    Yes
  • Color 1 - Wavelength/Color Temp/Coordinates
    525 nm
  • Max Op. Temperature (°C)
    50
  • Feature: Hazardous Area
    No
  • Mounting Thread
    M18 x 1.0
  • Connection
    Cable
  • Min Op. Temperature (°C)
    -40
  • IO Link
    No
  • Power Source
    DC
  • Animation Option 1
    Solid On
  • Physical Dimensions (LxWxH or DxH mm)
    23.5 x 35.7
  • Feature: Audible
    No
  • Wireless
    No
  • Pro-Editor Compatible (Discrete)
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

S18LGRXP Description

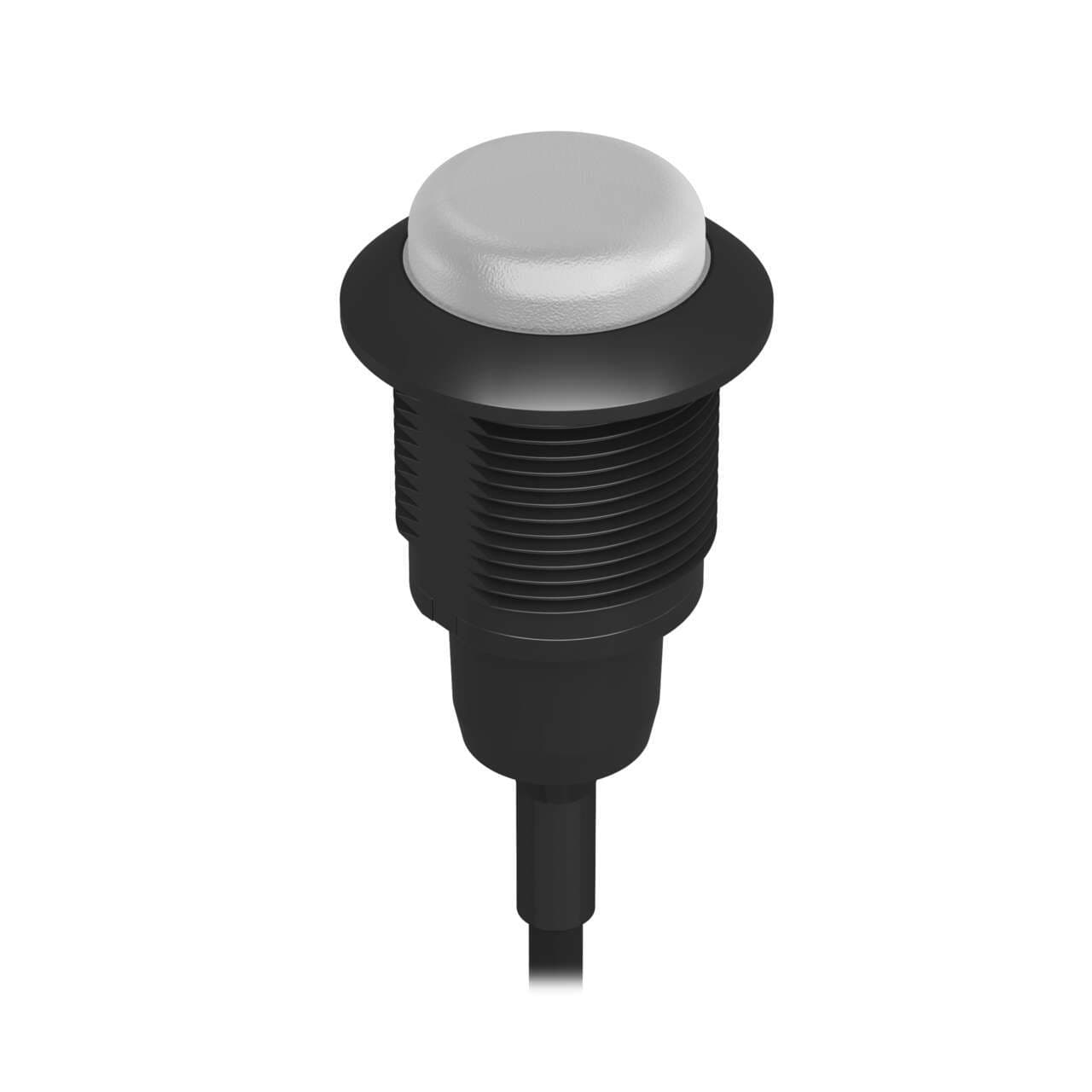

Banner Engineering S18LGRXP, part of the EZ-LIGHT series, is a pilot light designed with a 2-color G/R color pattern LED illumination. This LED pilot light indicator features a polycarbonate (PC) diffused window and base, with a diameter of 18mm. It comes pre-wired with a 2m / 6.5ft 4-wire cable terminated with bare end flying leads. The housing is black, and it operates on a supply voltage of 10Vdc-30Vdc (12Vdc-24Vdc nom.). For mounting, it uses a flush (18mm hole) M18 thread. The S18LGRXP can operate in ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. Its shape is characterized by a round protruding window and a threaded cylindrical barrel. The current consumption is 25mA, and it includes 2 x digital inputs (10-30Vdc; PNP) for color control.

Related documents S18LGRXP Specs

S18LGRXP 160690.pdf
