S18LWXXPQ Banner Signal Beacons
Part#:S18LWXXPQ
Manufacturer:Banner
Alt. Part#:20952
Product Lifecycle:Active
Get a quick Quote!
S18 EZ-LIGHT - 18 mm - IP67; Single Color: White; 10-30 V dc PNP Input; 4-pin M12 QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the S18LWXXPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight54.43104 g
- Country Of OriginCN
- Primary Housing Material Polycarbonate
- Number of Colors / Segments 1
- Connection Integral QD
- Max Op. Temperature (°C) 50
- Feature: Audible No
- Cable Length (m) 0.15
- Max Current Color (mA) 25
- Physical Dimensions (LxWxH or DxH mm) 23.5 x 35.7
- Feature: Hazardous Area No
- Power DC
- Animation Option 1 Solid On
- Max Input Response Time (ms) 1
- Feature: Washdown Rated Yes
- Power Source DC
- Color Technology Standard LED
- Min Op. Temperature (°C) -40
- Wireless No
- Indication Yes
- Product Size (mm) 18
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Modbus RTU No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 1 - Wavelength/Color Temp/Coordinates 6000K
- Environmental Rating IP67; IP69
- Multi-Color Device Single Color On
- Housing Style Barrel Mount - Flat Window
- Color Option 1 White
- Number of Input Pins/Conductors 4
- Primary Housing Color Black
- Quick Disconnect Type M12 (Euro)
- Input Type PNP
- Feature: Chemical Resistant No
- Mounting Thread M18 x 1.0
- Lumens Color 1 4.0
- Supply Voltage 10-30 V dc
- Primary Window Material Polycarbonate Diffused
- Pro-Editor Compatible (Discrete) No
- IO Link No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
S18LWXXPQ Description

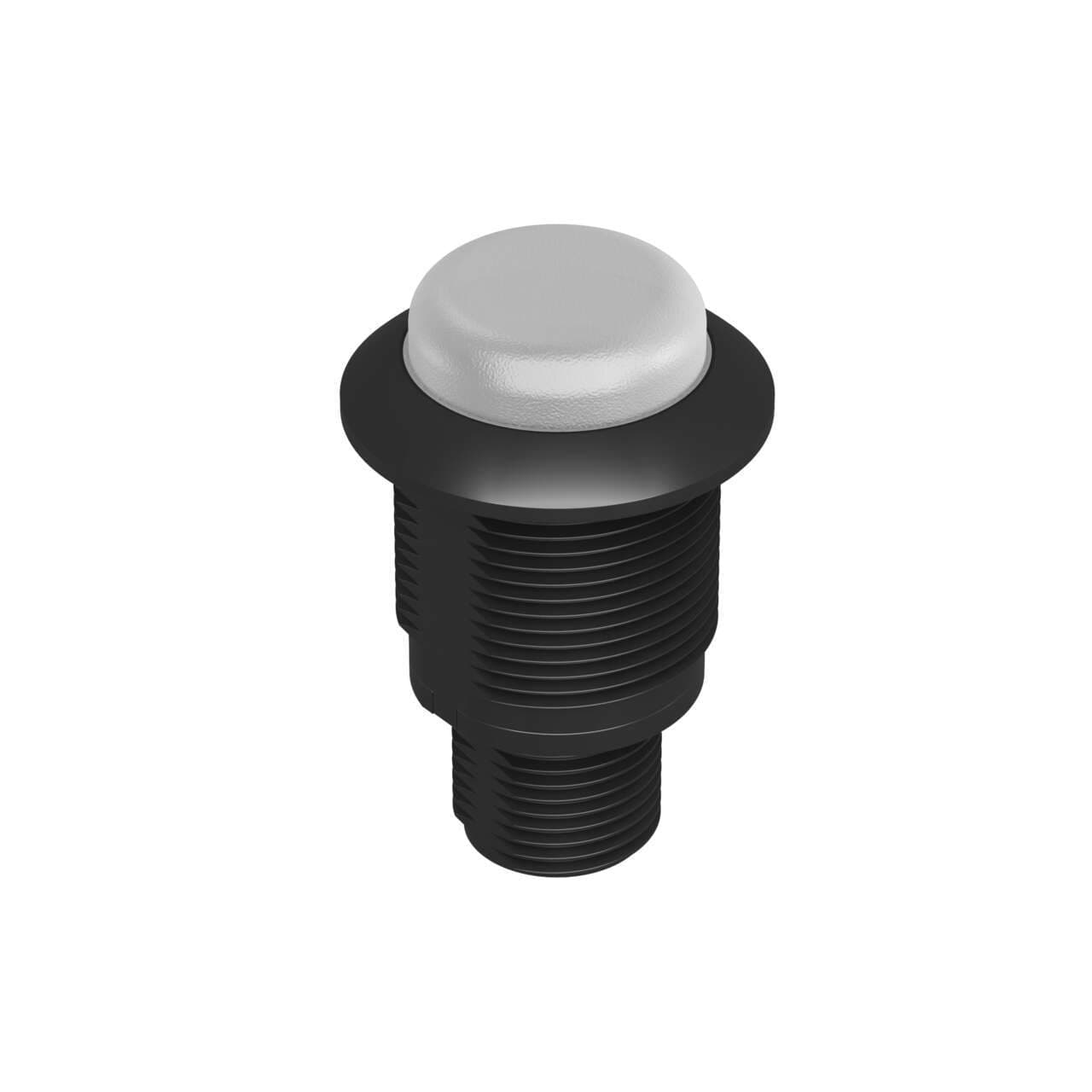

Banner Engineering S18LWXXPQ is a pilot light from the EZ-LIGHT series featuring 1-color White LED illumination. This LED pilot light indicator is designed with a polycarbonate (PC) diffused window and a polycarbonate (PC) base, ensuring durability. It has an 18mm indicator diameter and is pre-equipped with a 4-pin M12 Euro-style QD connector for easy connection. The housing is black, and it operates on a supply voltage of 10Vdc-30Vdc (12Vdc-24Vdc nom.). It is designed for flush mounting in an 18mm hole with an M18 thread. The S18LWXXPQ can operate in ambient air temperatures ranging from -40°C to +50°C and offers a high degree of protection with ratings of IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. Its shape is characterized by a round protruding window and a threaded cylindrical barrel. The current consumption is 25mA, and it features 1 x digital input (10-30Vdc; PNP) for color control.
Related documents S18LWXXPQ Specs
