S18LGRYPQ Banner Signal Beacons
Part#:S18LGRYPQ
Manufacturer:Banner
Alt. Part#:21290
Product Lifecycle:Active
Get a quick Quote!
S18 EZ-LIGHT - 18 mm - IP67; Three Color: Green Red Yellow; 10-30 V dc PNP Input; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the S18LGRYPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight34.5637104 g
- Country Of OriginCN
- Primary Housing Material Polycarbonate
- Connection Integral QD
- Color Option 3 Yellow
- Max Input Response Time (ms) 1
- Power Source DC
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Max Current Color (mA) 25
- Max Op. Temperature (°C) 50
- IO Link No
- Housing Style Barrel Mount - Flat Window
- Animation Option 1 Solid On
- Primary Housing Color Black
- Physical Dimensions (LxWxH or DxH mm) 23.5 x 35.7
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Lumens Color 2 1.1
- Color 3 - Wavelength/Color Temp/Coordinates 590 nm
- Feature: Audible No
- Product Size (mm) 18
- Lumens Color 1 4.1
- Number of Input Pins/Conductors 4
- Min Op. Temperature (°C) -40
- Indication Yes
- Quick Disconnect Type M12 (Euro)
- Lumens Color 3 0.80
- Environmental Rating IP67; IP69
- Multi-Color Device Single Color On
- Number of Colors / Segments 3
- Color Option 2 Red
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Feature: Chemical Resistant No
- Mounting Thread M18 x 1.0
- Color Technology Standard LED
- Supply Voltage 10-30 V dc
- Feature: Washdown Rated Yes
- Modbus RTU No
- Wireless No
- Power DC
- Color Option 1 Green
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Input Type PNP
- Feature: Hazardous Area No
- Primary Window Material Polycarbonate Diffused
- Pro-Editor Compatible (Discrete) No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
S18LGRYPQ Description

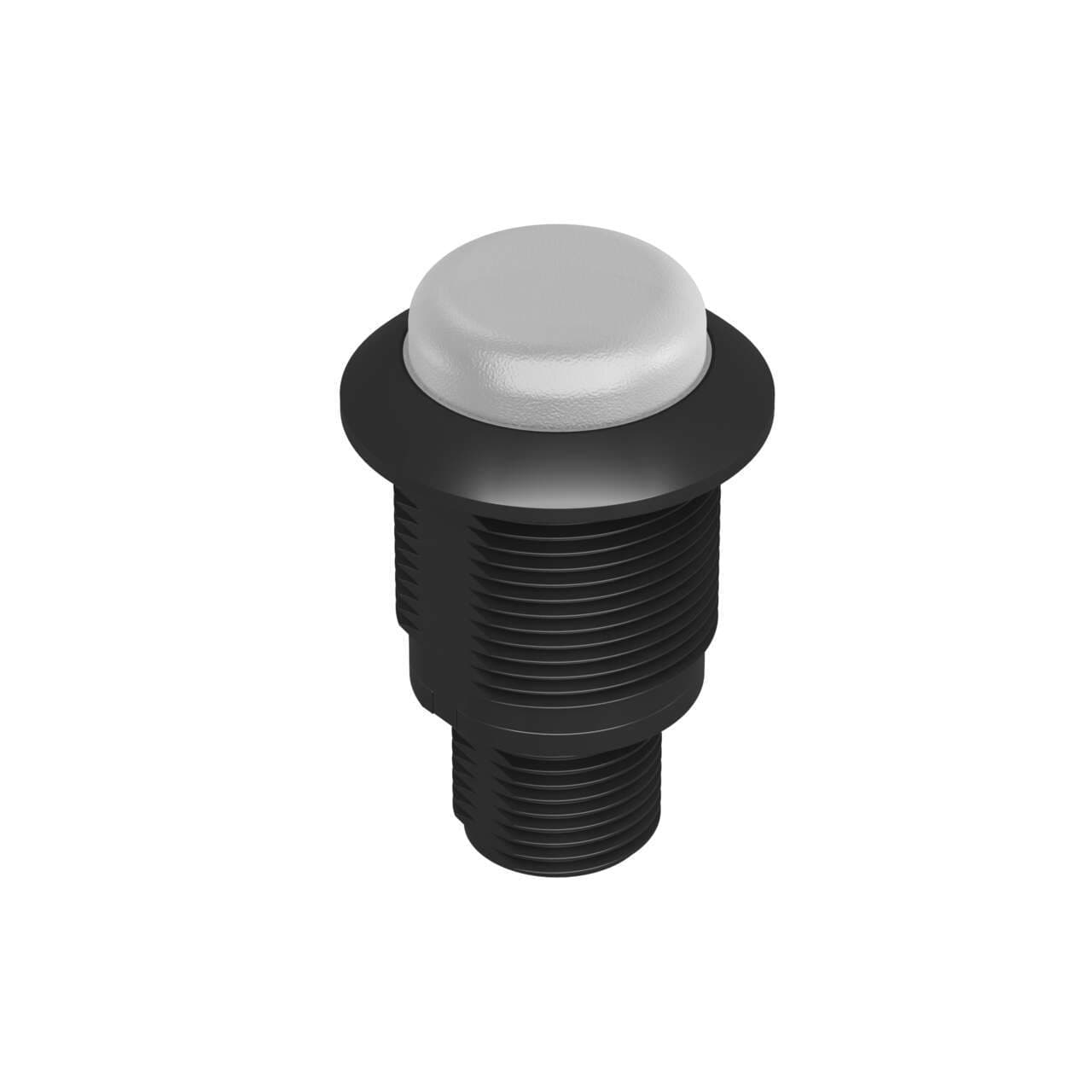

Banner Engineering S18LGRYPQ is a pilot light from the EZ-LIGHT series featuring a 3-color G/R/Y color pattern LED illumination. This LED pilot light indicator is designed with a polycarbonate (PC) diffused window and a polycarbonate (PC) base, ensuring durability. It has an 18mm indicator diameter and comes pre-equipped with a 4-pin M12 Euro-style QD connector for easy connection. The housing is black, and it operates on a supply voltage of 10Vdc-30Vdc (12Vdc-24Vdc nom.). It is designed for flush mounting in an 18mm hole with an M18 thread. The S18LGRYPQ can operate in ambient air temperatures ranging from -40°C to +50°C and offers a high degree of protection with ratings of IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. Its shape is characterized by a round protruding window and a threaded cylindrical barrel. The current consumption is 25mA, and it features 3 x digital inputs (10-30Vdc; PNP) for color control.
