S18LWBOPQ Banner Signal Beacons
Part#:S18LWBOPQ
Manufacturer:Banner
Alt. Part#:87121
Product Lifecycle:Active
Get a quick Quote!
S18 EZ-LIGHT - 18 mm - IP67; Three Color: White Blue Orange; 10-30 V dc PNP Input; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the S18LWBOPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight54.43104 g
- Country Of OriginCN
- Cable Length (m) 2
- Number of Colors / Segments 3
- Color 2 - Wavelength/Color Temp/Coordinates 470 nm
- Number of Input Pins/Conductors 4
- Wireless No
- Power Source DC
- Color Option 1 White
- Max Current Color (mA) 25
- Primary Housing Color Black
- Modbus RTU No
- Power DC
- Indication Yes
- Supply Voltage 10-30 V dc
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Multi-Color Device Single Color On
- Input Type PNP
- Feature: Hazardous Area No
- Pro-Editor Compatible (Discrete) No
- Housing Style Barrel Mount - Flat Window
- Connection Integral QD
- Max Input Response Time (ms) 1
- Primary Window Material Polycarbonate Diffused
- Primary Housing Material Polycarbonate
- Lumens Color 1 4.0
- Lumens Color 3 0.80
- Min Op. Temperature (°C) -40
- Feature: Chemical Resistant No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Quick Disconnect Type M12 (Euro)
- Color 3 - Wavelength/Color Temp/Coordinates 608 nm
- Feature: Washdown Rated Yes
- IO Link No
- Mounting Thread M18 x 1.0
- Animation Option 1 Solid On
- Color 1 - Wavelength/Color Temp/Coordinates 6000K
- Environmental Rating IP67; IP69
- Feature: Quick Disconnect Yes
- Color Technology Standard LED
- Color Option 2 Blue
- Color Option 3 Orange
- Max Op. Temperature (°C) 50
- Product Size (mm) 18
- Lumens Color 2 0.60
- Physical Dimensions (LxWxH or DxH mm) 23.5 x 35.7
- Feature: Audible No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
S18LWBOPQ Description

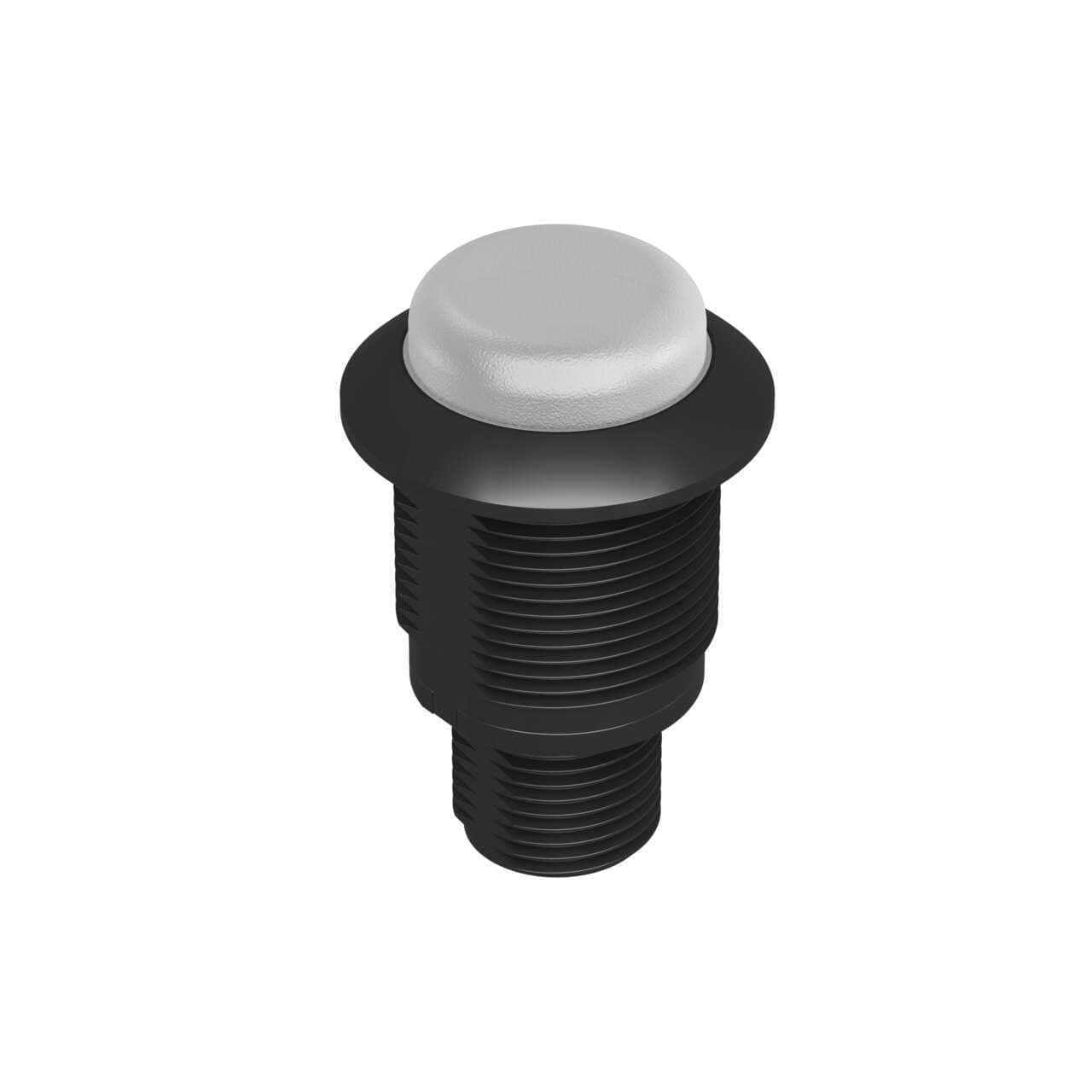

Banner Engineering S18LWBOPQ is a pilot light from the EZ-LIGHT series featuring a 3-color W/B/O color pattern LED illumination. This part is designed with a polycarbonate (PC) diffused window and a polycarbonate (PC) base, ensuring durability. It has an 18mm indicator diameter and comes pre-equipped with a 4-pin M12 Euro-style QD connector for easy connection. The housing is black, and it operates on a supply voltage of 10Vdc-30Vdc (12Vdc-24Vdc nom.). It is designed for flush mounting in an 18mm hole with an M18 thread. The S18LWBOPQ can operate in ambient air temperatures ranging from -40°C to +50°C and offers a high degree of protection with ratings of IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. Its shape is characterized by a round protruding window and a threaded cylindrical barrel. The current consumption is 25mA, and it features 3 x digital inputs (10-30Vdc; PNP) for color control.
