S18LRXXP Banner Signal Beacons

Banner S18LRXXP S18 EZ-LIGHT - 18 mm - IP67; Single Color: Red; 10-30 V dc PNP Input; 4-Wire 2 m Cable
Banner

Part#:S18LRXXP

Manufacturer:Banner

Alt. Part#:20883

Product Lifecycle:Active

Get a quick Quote!

S18 EZ-LIGHT - 18 mm - IP67; Single Color: Red; 10-30 V dc PNP Input; 4-Wire 2 m Cable

About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the S18LRXXP Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight81.64656 g
  • Country Of OriginCN
  • Mounting Thread
    M18 x 1.0
  • Color Option 1
    Red
  • Max Input Response Time (ms)
    1
  • Feature: Washdown Rated
    Yes
  • Wireless
    No
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Max Current Color (mA)
    25
  • Primary Housing Material
    Polycarbonate
  • Animation Option 1
    Solid On
  • Environmental Rating
    IP67; IP69
  • Feature: Chemical Resistant
    No
  • Product Size (mm)
    18
  • Supply Voltage
    10-30 V dc
  • Primary Window Material
    Polycarbonate Diffused
  • Pro-Editor Compatible (Discrete)
    No
  • Power Source
    DC
  • Color Technology
    Standard LED
  • Physical Dimensions (LxWxH or DxH mm)
    23.5 x 35.7
  • Feature: Audible
    No
  • Power
    DC
  • Number of Input Pins/Conductors
    4
  • Primary Housing Color
    Black
  • IO Link
    No
  • Number of Colors / Segments
    1
  • Lumens Color 1
    1.1
  • NEMA Type and UL Type Rating
    NEMA and UL 4X, 13
  • Multi-Color Device
    Single Color On
  • Indication
    Yes
  • Connection
    Cable
  • Input Type
    PNP
  • Feature: Hazardous Area
    No
  • Housing Style
    Barrel Mount - Flat Window
  • Color 1 - Wavelength/Color Temp/Coordinates
    625 nm
  • Min Op. Temperature (°C)
    -40
  • Modbus RTU
    No
  • Max Op. Temperature (°C)
    50
  • Feature: Quick Disconnect
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

S18LRXXP Description

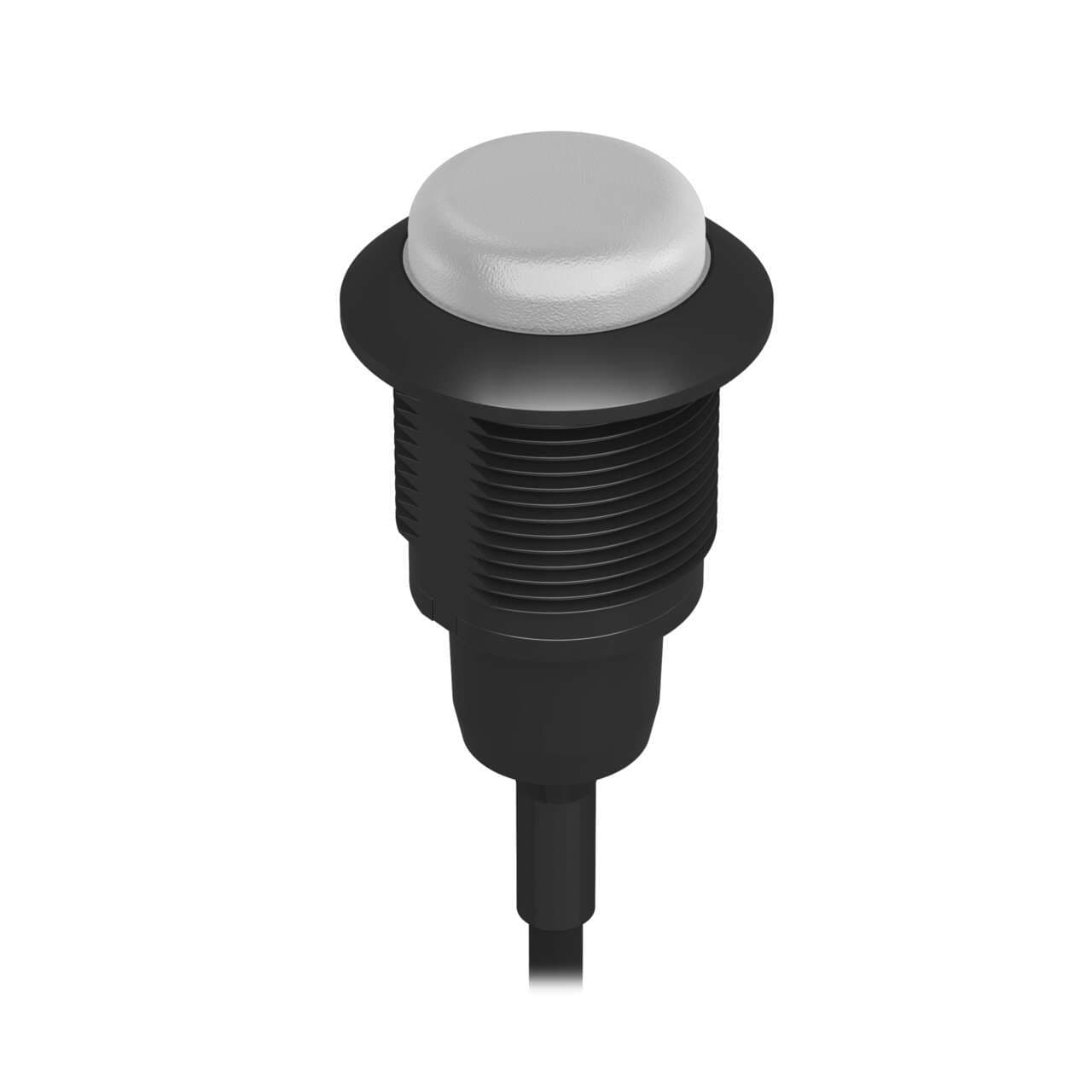

Banner Engineering S18LRXXP, part of the EZ-LIGHT series, is a pilot light designed with a 1-color Red LED illumination. This product features an LED pilot light indicator encased in a polycarbonate (PC) diffused window and base. It has an 18mm indicator diameter and is pre-wired with a 2m / 6.5ft 4-wire cable terminated with bare end flying leads. The housing is black, and it operates on a supply voltage of 10Vdc-30Vdc (12Vdc-24Vdc nom.). The S18LRXXP is designed for flush mounting in an 18mm hole with an M18 thread. It can operate in ambient air temperatures ranging from -40°C to +50°C. This part is protected to IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13 standards, ensuring durability in various environments. The shape is characterized by a round protruding window and a threaded cylindrical barrel. It has a current consumption of 25mA and includes 1 x digital input (10-30Vdc; PNP) for color control.

Related documents S18LRXXP Specs

S18LRXXP 160690.pdf
