S18LBXXPT Banner Signal Beacons

Banner S18LBXXPT S18 EZ Light - 18 mm - IP67; Single Color: Blue; 10-30 V dc PNP Input; 4-screw Terminal Wiring
Banner

Part#:S18LBXXPT

Manufacturer:Banner

Alt. Part#:31610

Product Lifecycle:Active

Get a quick Quote!

S18 EZ Light - 18 mm - IP67; Single Color: Blue; 10-30 V dc PNP Input; 4-screw Terminal Wiring

About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the S18LBXXPT Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight63.50288 g
  • Country Of OriginCN
  • Power Source
    DC
  • Color Technology
    Standard LED
  • Input Type
    PNP
  • Feature: Hazardous Area
    No
  • Number of Colors / Segments
    1
  • Color 1 - Wavelength/Color Temp/Coordinates
    470 nm
  • Primary Window Material
    Polycarbonate Diffused
  • Multi-Color Device
    Single Color On
  • Product Size (mm)
    18
  • Animation Option 1
    Solid On
  • Max Input Response Time (ms)
    1
  • Feature: Audible
    No
  • Primary Housing Material
    Polycarbonate
  • Max Current Color (mA)
    25
  • Min Op. Temperature (°C)
    -40
  • Wireless
    No
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Lumens Color 1
    0.60
  • Primary Housing Color
    Black
  • IO Link
    No
  • Housing Style
    Barrel Mount - Flat Window
  • Number of Input Pins/Conductors
    4
  • NEMA Type and UL Type Rating
    NEMA and UL 4X, 13
  • Modbus RTU
    No
  • Indication
    Yes
  • Connection
    Terminal
  • Environmental Rating
    IP67; IP69
  • Feature: Chemical Resistant
    No
  • Mounting Thread
    M18 x 1.0
  • Supply Voltage
    10-30 V dc
  • Max Op. Temperature (°C)
    50
  • Pro-Editor Compatible (Discrete)
    No
  • Power
    DC
  • Color Option 1
    Blue
  • Physical Dimensions (LxWxH or DxH mm)
    23.5 x 34.6
  • Feature: Washdown Rated
    Yes
  • Feature: Quick Disconnect
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

S18LBXXPT Description

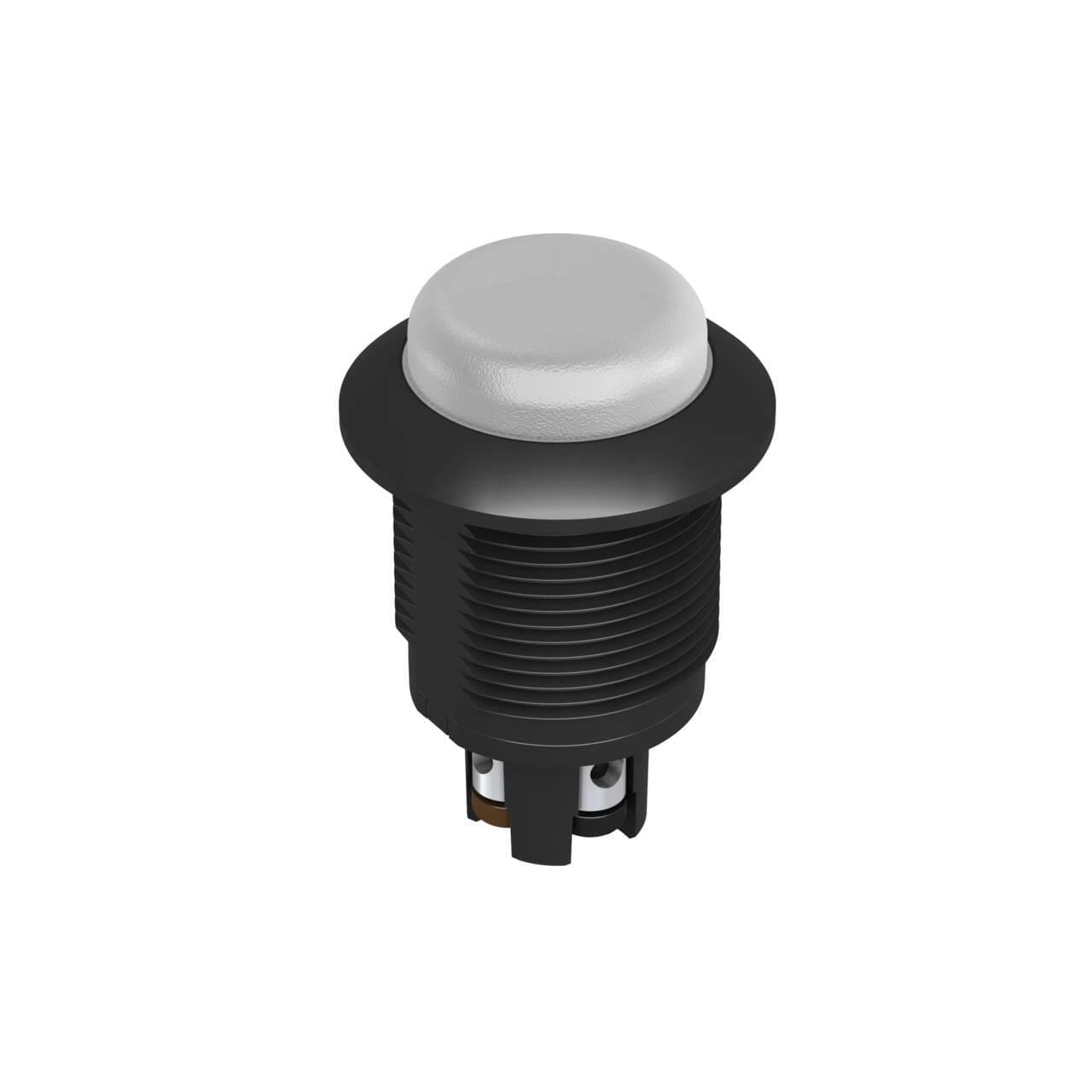

Banner Engineering S18LBXXPT, part of the EZ-LIGHT series, is a pilot light designed with a 1-color Blue LED illumination. This product features an LED pilot light indicator encased in a polycarbonate (PC) diffused window and a polycarbonate (PC) base, ensuring durability. It has an 18mm indicator diameter and utilizes a screw-clamp terminal connection for secure installation. The housing is black, complementing various industrial environments. It operates on a supply voltage range of 10Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc, and is designed for flush mounting in an 18mm hole with an M18 thread. The S18LBXXPT can function within an ambient air temperature range of -40°C to +50°C. It boasts a high degree of protection with ratings of IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13, suitable for challenging conditions. The shape is characterized by a round protruding window and a threaded cylindrical barrel. This part has a current consumption of 25mA and includes 1 x digital input (10-30Vdc; PNP) for color control.

Related documents S18LBXXPT Specs

S18LBXXPT 160690.pdf
