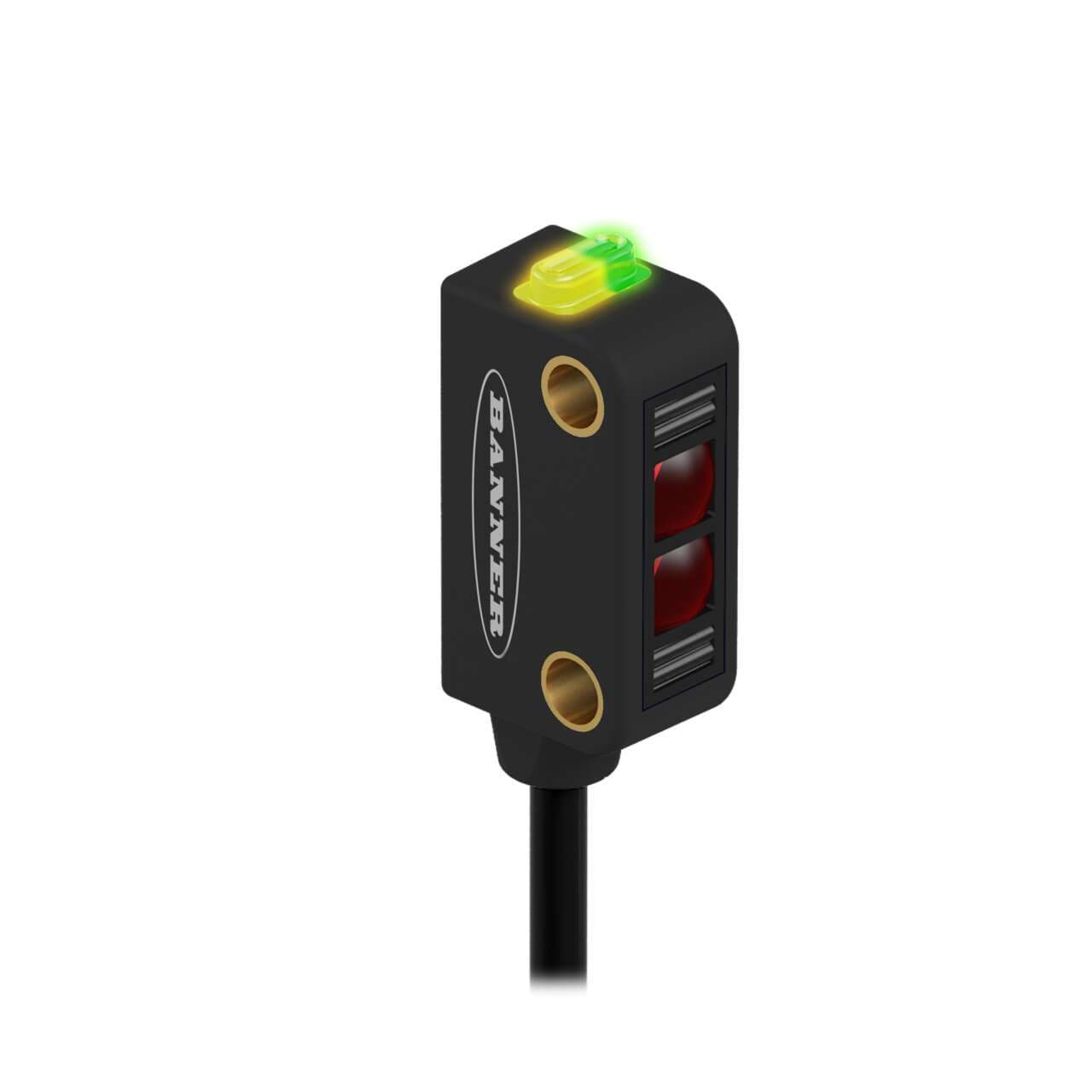

Q12RP6RQ3 Banner Proximity Sensors
Part#:Q12RP6RQ3
Manufacturer:Banner
Alt. Part#:74193
Product Lifecycle:Active
Get a quick Quote!
WORLD-BEAM Q12 Series: Receiver; Range: 2 m; Input: 10-30 V dc; Output: DO; 1 PNP; 150 mm (6 in) 3-pin M8 Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the Q12RP6RQ3 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight18.14368 g
- Country Of OriginMX
- Primary brand Banner Engineering
- Functions Photo-electric sensor receiver green LED (power ON) yellow LED (signal)
- Operating mode Dark-ON
- Order code / Manufacturer SKU 74193
- Sub-range name Q12 series
- Design through-beam system / opposed mode
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 3-pin Pico-style M8 connector
- Degree of protection IP67
- Main function Sensor (Photo-electric)
- Product series / family name WORLD-BEAM series
- Sensing distance 2m
- Shape Rectangular
- Material thermoplastic housing Polycarbonate lns.
- Light Color Visible red
- Response time 1.3ms / 0.0013 s
- Compliant with standard(s) cURus CE
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Wavelength 640 nm
- Digital outputs 1 x digital output (PNP transistor)
- Ambient air temperature for operation -20...+55 °C
- Sensing Beam Visible Red LED
- Housing Style Rectangular
- Cable Length (m) 0.15
- Input/Output Discrete
- Outputs PNP
- Adjustments N/A
- Power Supply/Supply Voltage 10-30 V dc
- Max Op. Temp. (°C) 55
- Repeatability (µs) 175
- Power DC
- Primary Housing Material Thermoplastic
- Sensing Beam Wavelength 640
- Connection Pigtail QD
- Output response time (ms) 1.3 ON/0.7 OFF
- Delay at Power-up (ms) 120
- Min Op. Temp. (°C) -20
- Special Feature: Intrinsically Safe No
- Number of Pins 3
- Opposed Mode Emitter/Receiver Receiver
- Max Sensing Distance (mm) 2000
- Quick Disconnect Type M8 (Pico)
- Lens Material Polycarbonate
- DeviceNet No
- Operation Dark Operate
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Hazardous Area No
- Barrel Diameter (mm) N/A
- IO Link No
- Feature: Audible No
- Sensing Mode (General) Opposed
- Sensing Mode (Detailed) Receiver
- Special Feature: Water Detection No
- IP Rating IP67
- Feature: Chemical Resistant No
- Indicator LEDs
- Feature: Timing (Hold/Delay) No
- Feature: Encapsulated No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Q12RP6RQ3 Description
Banner Engineering Q12RP6RQ3 is a photo-electric sensor designed for through-beam system applications, functioning as the receiver component of the system. It operates within an ambient air temperature range of -20 to +55 °C and is housed in a thermoplastic casing with a polycarbonate lens. This sensor is pre-wired with a 6-inch (150mm) pigtail that terminates in a 3-pin Pico-style M8 connector. It belongs to the Q12 series and offers a degree of protection rated at IP67, making it suitable for various industrial environments. The Q12RP6RQ3 requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as the nominal voltages. It features a rectangular shape and is capable of detecting objects up to 2 meters away with its visible red light, which has a wavelength of 640 nm. The sensor operates in Dark-ON mode and includes 1 x digital output (PNP transistor) with a response time of 1.3ms (0.0013 seconds).
Related documents Q12RP6RQ3 Specs
