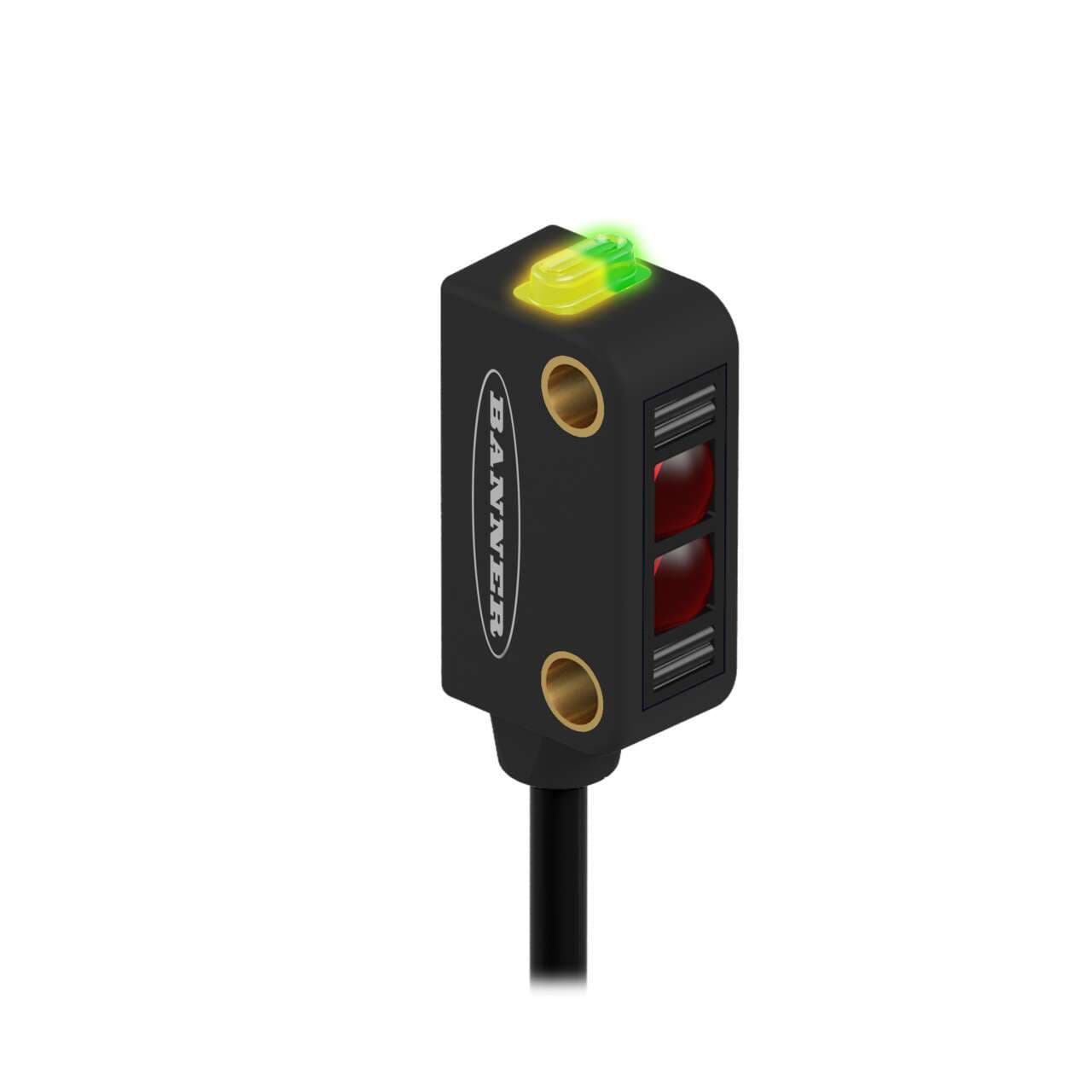

Q12RB6RQ Banner Proximity Sensors
Part#:Q12RB6RQ
Manufacturer:Banner
Alt. Part#:72138
Product Lifecycle:Active
Get a quick Quote!
WORLD-BEAM Q12 Series: Receiver; Range: 2 m; Input: 10-30 V dc; Output: DO (Dark Operate) Bipolar: 1 NPN; 1 PNP; 150 mm (6 in) M8 Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the Q12RB6RQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight17.236496 g
- Country Of OriginMX
- Product series / family name WORLD-BEAM series
- Primary brand Banner Engineering
- Sub-range name Q12 series
- Sensing distance 2m
- Main function Sensor (Photo-electric)
- Design through-beam system / opposed mode
- Wavelength 640 nm
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 4-pin Pico-style M8 connector
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Functions Photo-electric sensor receiver green LED (power ON) yellow LED (signal)
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Degree of protection IP67
- Ambient air temperature for operation -20...+55 °C
- Light Color Visible red
- Shape Rectangular
- Operating mode Dark-ON
- Response time 1.3ms / 0.0013 s
- Order code / Manufacturer SKU 72138
- Material thermoplastic housing Polycarbonate lns.
- Compliant with standard(s) cURus CE
- Cable Length (m) 0.15
- Sensing Mode (Detailed) Receiver
- Outputs Bipolar (NPN & PNP)
- Primary Housing Material Thermoplastic
- Connection Pigtail QD
- Min Op. Temp. (°C) -20
- Input/Output Discrete
- Sensing Mode (General) Opposed
- Sensing Beam Visible Red LED
- Power Supply/Supply Voltage 10-30 V dc
- Quick Disconnect Type M8 (Pico)
- Special Feature: Water Detection No
- IP Rating IP67
- Housing Style Rectangular
- Power DC
- Max Sensing Distance (mm) 2000
- Max Op. Temp. (°C) 55
- Special Feature: Intrinsically Safe No
- Delay at Power-up (ms) 120
- Number of Pins 4
- Repeatability (µs) 175
- Lens Material Polycarbonate
- IO Link No
- Adjustments N/A
- Feature: Chemical Resistant No
- Feature: Timing (Hold/Delay) No
- Feature: Encapsulated No
- DeviceNet No
- Feature: Audible No
- Feature: Hazardous Area No
- Operation Dark Operate
- Output response time (ms) 1.3 ON/0.7 OFF
- Special Feature: Remote Teach No
- Sensing Beam Wavelength 640
- Max Op. Relative Humidity [%] 95% @ 50°C
- Opposed Mode Emitter/Receiver Receiver
- Barrel Diameter (mm) N/A
- Indicator LEDs
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Q12RB6RQ Description
Banner Engineering Q12RB6RQ is a photo-electric sensor designed for through-beam system applications, functioning as the receiver component within the Q12 series. It operates within an ambient air temperature range of -20 to +55°C and is housed in a thermoplastic casing with a polycarbonate lens. This sensor is pre-wired with a 6-inch (150mm) pigtail that terminates in a 4-pin Pico-style M8 connector, facilitating straightforward installation. It offers a sensing distance of up to 2 meters and utilizes visible red light with a wavelength of 640 nm. The Q12RB6RQ operates in a Dark-ON mode and is equipped with a single digital output (PNP/NPN transistor), responding within 1.3 milliseconds. It requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values, and is protected to IP67 standards, ensuring durability in various operating environments.
