Q12RB6FF30CR Banner Electronic Components
Part#:Q12RB6FF30CR
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

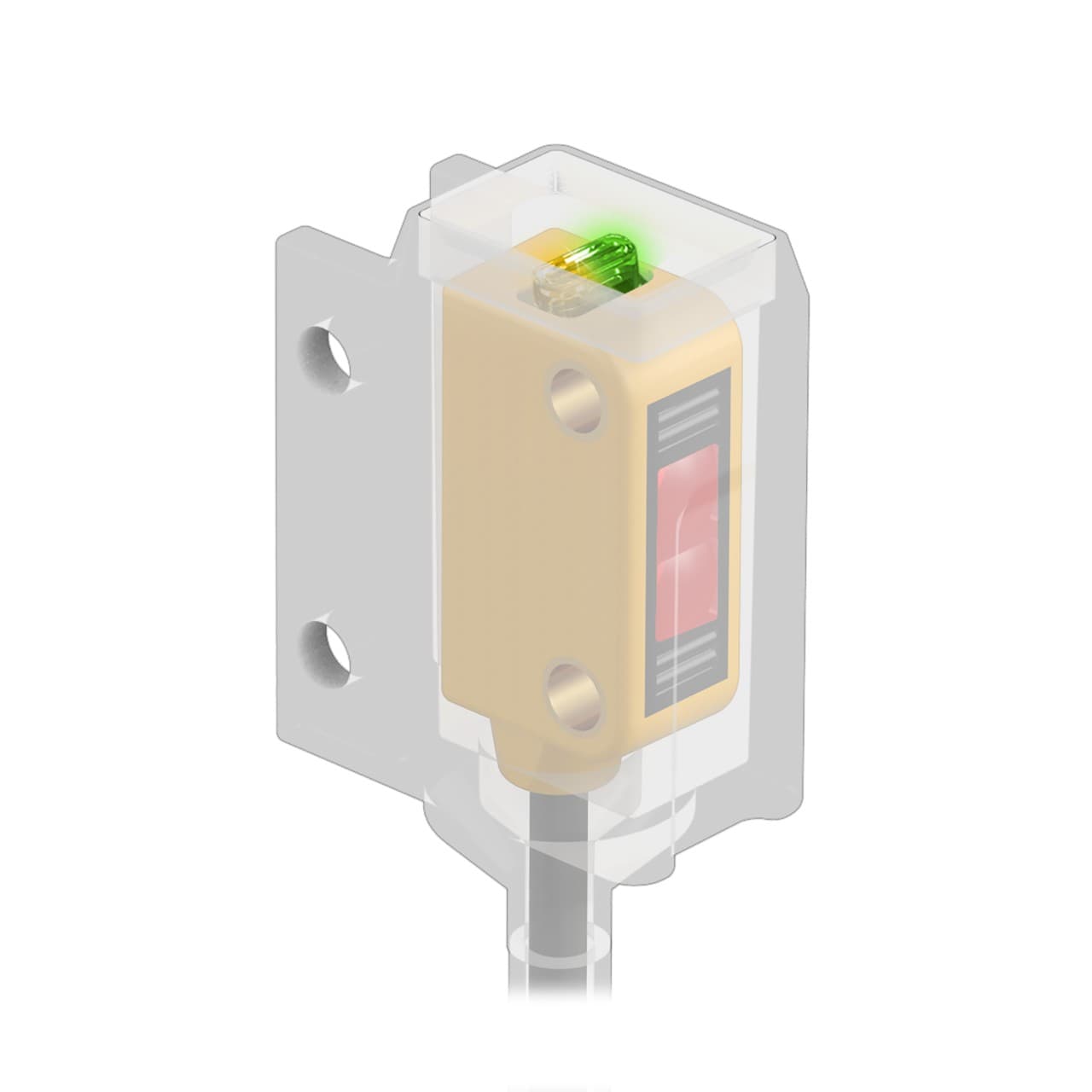

Banner Engineering Q12RB6FF30CR is a fixed-field photo-electric sensor designed with a background suppression system. It operates within an ambient air temperature range of -20 to +55°C and is housed in a thermoplastic with a polycarbonate lens. This sensor is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads, ensuring easy installation. Part of the Q12 series, it offers a degree of protection rated at IP67, making it chemical-resistant. The Q12RB6FF30CR requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. Its rectangular shape is designed for precise sensing with a distance of 30mm and utilizes visible red light with a wavelength of 640 nm. The operating mode is Dark-ON, and it features 1 x digital output (PNP/NPN transistor) with a rapid response time of 0.7ms / 0.0007 s.
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the Q12RB6FF30CR Banner price in the box on the right side or send a quick quote.
Product Details
- Sub-range name Q12 series
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Sensing distance 30mm
- Degree of protection IP67
- Product series / family name WORLD-BEAM series
- Design background suppression system
- Chemical resistance chemical-resistant
- Main function Sensor (Photo-electric)
- Shape Rectangular
- Ambient air temperature for operation -20...+55 °C
- Primary brand Banner Engineering
- Light Color Visible red
- Compliant with standard(s) cURus CE
- Wavelength 640 nm
- Response time 0.7ms / 0.0007 s
- Operating mode Dark-ON
- Material thermoplastic housing Polycarbonate lns.
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Order code / Manufacturer SKU 76483
- Functions Fixed-field photo-electric sensor green LED (power ON) yellow LED (signal)
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Primary Housing Material Thermoplastic
- Max Sensing Distance (mm) 30
- Special Feature: Remote Teach No
- Opposed Mode Emitter/Receiver N/A
- Sensing Beam Visible Red LED
- Operation Dark Operate
- Number of Pins 3
- Feature: Timing (Hold/Delay) No
- Sensing Mode (General) Proximity
- Connection Cable
- Special Feature: Intrinsically Safe No
- Lens Material Polycarbonate
- IP Rating IP67
- Feature: Encapsulated No
- Housing Style Rectangular
- Output response time (ms) 0.85 ON/OFF
- Cable Length (m) 2
- Quick Disconnect Type No QD
- Special Feature: Water Detection No
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Chemical Resistant Yes
- Input/Output Discrete
- Outputs Bipolar (NPN & PNP)
- Delay at Power-up (ms) 120
- Indicator LEDs
- IO Link No
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Power Supply/Supply Voltage 10-30 V dc
- Sensing Beam Wavelength 640
- Adjustments N/A
- DeviceNet No
- Power DC
- Max Op. Temp. (°C) 55
- Repeatability (µs) 175
- Barrel Diameter (mm) N/A
- Small Visible Spot LED
- Min Op. Temp. (°C) -20
- NEMA Rating N/A
- Feature: Hazardous Area No
- Feature: Audible No
