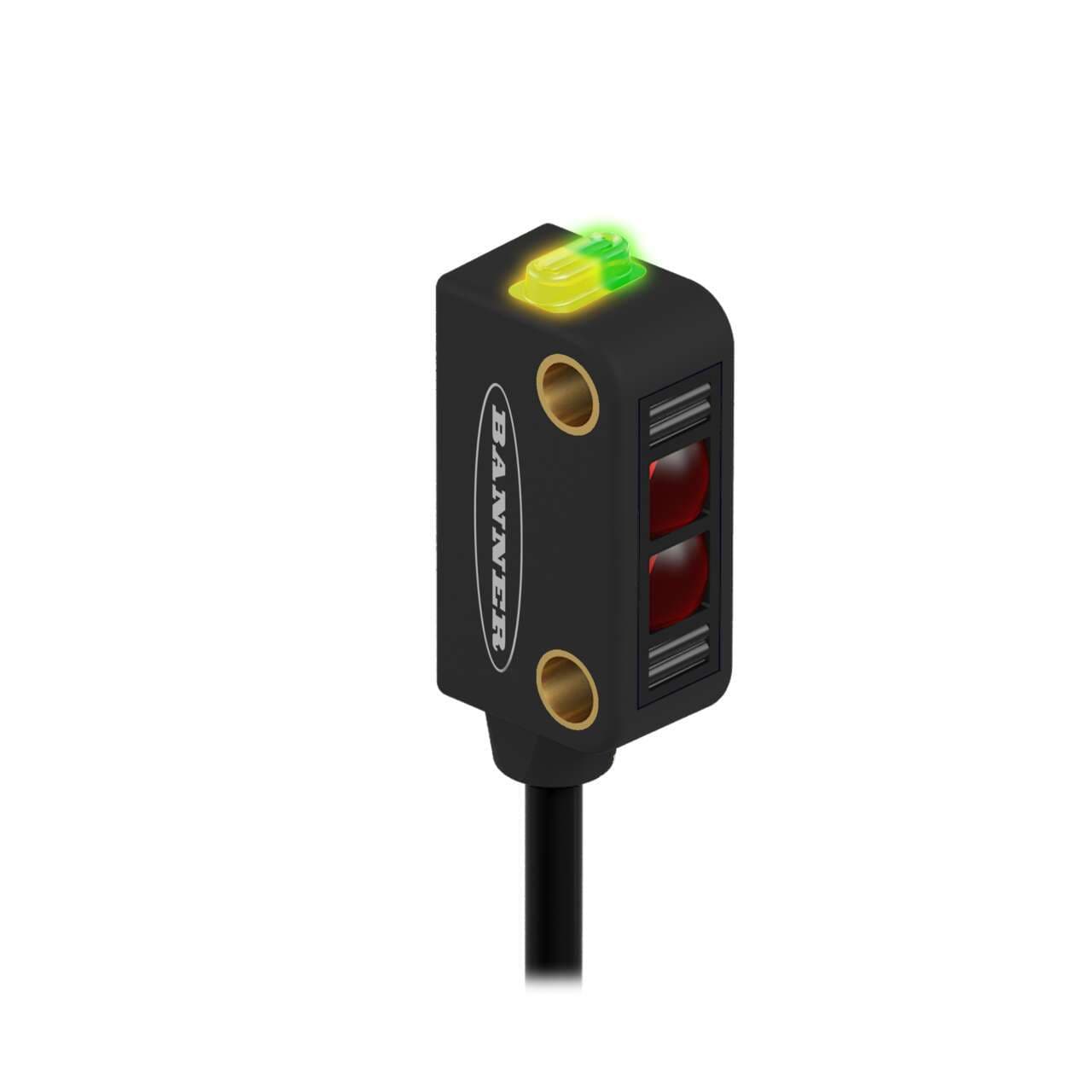

Q12RP6FF15Q3 Banner Proximity Sensors
Part#:Q12RP6FF15Q3
Manufacturer:Banner
Alt. Part#:77102
Product Lifecycle:Active
Get a quick Quote!
WORLD-BEAM Q12 Series: Fixed-Field; Range: 15 mm; Input: 10-30 V dc; Output: DO; 1 PNP; 150 mm (6 in) 3-pin M8 Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the Q12RP6FF15Q3 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight22.6796 g
- Country Of OriginMX
- Ambient air temperature for operation -20...+55 °C
- Primary brand Banner Engineering
- Sensing distance 15mm
- Digital outputs 1 x digital output (PNP transistor)
- Degree of protection IP67
- Order code / Manufacturer SKU 77102
- Sub-range name Q12 series
- Light Color Visible red
- Design background suppression system
- Response time 0.7ms / 0.0007 s
- Product series / family name WORLD-BEAM series
- Functions Fixed-field photo-electric sensor green LED (power ON) yellow LED (signal)
- Wavelength 640 nm
- Shape Rectangular
- Operating mode Dark-ON
- Main function Sensor (Photo-electric)
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 3-pin Pico-style M8 connector
- Material thermoplastic housing Polycarbonate lns.
- Compliant with standard(s) cURus CE
- Primary Housing Material Thermoplastic
- Max Op. Temp. (°C) 55
- Repeatability (µs) 175
- Feature: Encapsulated No
- Power DC
- Quick Disconnect Type M8 (Pico)
- Sensing Beam Wavelength 640
- Feature: Timing (Hold/Delay) No
- Input/Output Discrete
- IP Rating IP67
- Feature: Hazardous Area No
- Cable Length (m) 0.15
- Connection Pigtail QD
- Special Feature: Intrinsically Safe No
- Lens Material Polycarbonate
- DeviceNet No
- Housing Style Rectangular
- Output response time (ms) 0.85 ON/OFF
- Number of Pins 3
- Adjustments N/A
- Sensing Mode (General) Proximity
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Water Detection No
- Opposed Mode Emitter/Receiver N/A
- Small Visible Spot LED
- Outputs PNP
- Special Feature: Remote Teach No
- Indicator LEDs
- Min Op. Temp. (°C) -20
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Chemical Resistant No
- Sensing Beam Visible Red LED
- Max Sensing Distance (mm) 15
- Feature: Audible No
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Operation Dark Operate
- Delay at Power-up (ms) 120
- Barrel Diameter (mm) N/A
- IO Link No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Q12RP6FF15Q3 Description
Banner Engineering Q12RP6FF15Q3 is a fixed-field photo-electric sensor designed with a background suppression system. It operates within an ambient air temperature range of -20 to +55 °C and is housed in a thermoplastic with a polycarbonate lens. This sensor is pre-wired with a 6" / 150mm pigtail terminated with a 3-pin Pico-style M8 connector, ensuring easy integration. Part of the Q12 series, it offers a degree of protection rated at IP67, making it suitable for various environments. The supply voltage requirement is 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc. Its rectangular shape is designed for compact installation spaces. The sensing distance is set at 15mm, utilizing visible red light with a wavelength of 640 nm. It operates in a Dark-ON mode and includes 1 x digital output (PNP transistor) with a rapid response time of 0.7ms / 0.0007 s.
Related documents Q12RP6FF15Q3 Specs
