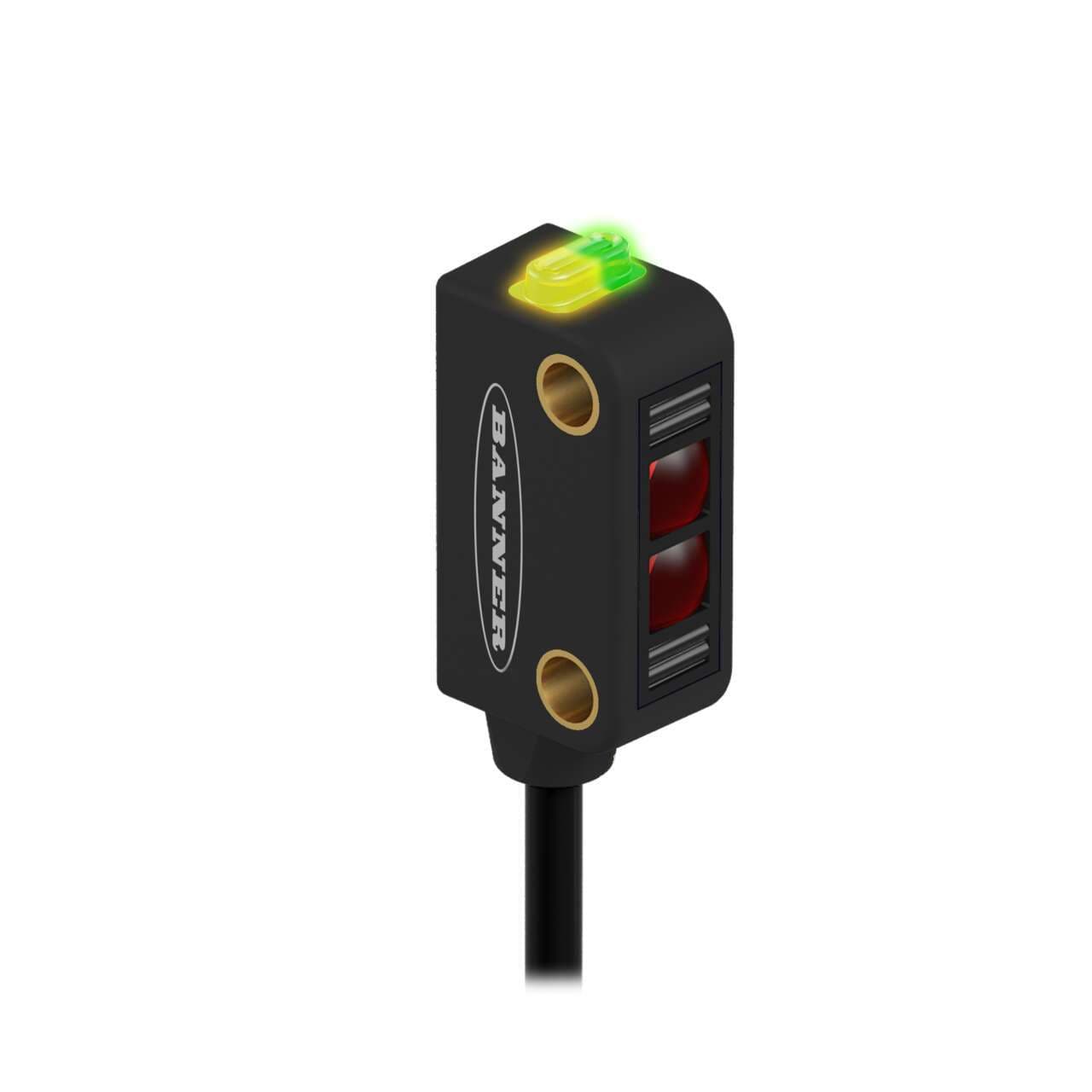

Q12RB6FF15Q5 Banner Proximity Sensors
Part#:Q12RB6FF15Q5
Manufacturer:Banner
Alt. Part#:74142
Product Lifecycle:Active
Get a quick Quote!
WORLD-BEAM Q12 Series: Fixed-Field; Range: 15 mm; Input 10-30 V dc; Output: DO (Dark Operate) Bipolar: 1 NPN; 1 PNP; 150 mm (6 in) M12 Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the Q12RB6FF15Q5 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight27.21552 g
- Country Of OriginUS
- Product series / family name WORLD-BEAM series
- Design background suppression system
- Operating mode Dark-ON
- Functions Fixed-field photo-electric sensor green LED (power ON) yellow LED (signal)
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Ambient air temperature for operation -20...+55 °C
- Main function Sensor (Photo-electric)
- Shape Rectangular
- Response time 0.7ms / 0.0007 s
- Order code / Manufacturer SKU 74142
- Sub-range name Q12 series
- Light Color Visible red
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
- Degree of protection IP67
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Sensing distance 15mm
- Wavelength 640 nm
- Compliant with standard(s) cURus CE
- Material thermoplastic housing Polycarbonate lns.
- Sensing Mode (General) Proximity
- Operation Dark Operate
- IP Rating IP67
- Feature: Audible No
- Cable Length (m) 0.15
- Max Sensing Distance (mm) 15
- Special Feature: Remote Teach No
- Barrel Diameter (mm) N/A
- Input/Output Discrete
- Max Op. Temp. (°C) 55
- Adjustments N/A
- IO Link No
- Connection Pigtail QD
- Special Feature: Water Detection No
- Indicator LEDs
- Primary Housing Material Thermoplastic
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Chemical Resistant No
- Small Visible Spot LED
- Quick Disconnect Type M12 (Euro)
- Special Feature: Intrinsically Safe No
- Lens Material Polycarbonate
- DeviceNet No
- Sensing Beam Visible Red LED
- Outputs Bipolar (NPN & PNP)
- Sensing Beam Wavelength 640
- Feature: Timing (Hold/Delay) No
- Housing Style Rectangular
- Output response time (ms) 0.85 ON/OFF
- Number of Pins 4
- Feature: Hazardous Area No
- Power DC
- Power Supply/Supply Voltage 10-30 V dc
- Delay at Power-up (ms) 120
- Opposed Mode Emitter/Receiver N/A
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Min Op. Temp. (°C) -20
- Repeatability (µs) 175
- Feature: Encapsulated No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Q12RB6FF15Q5 Description
Banner Engineering Q12RB6FF15Q5 is a fixed-field photo-electric sensor designed with a background suppression system. It operates within an ambient air temperature range of -20 to +55 °C and is housed in a thermoplastic with a polycarbonate lens. This sensor is pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector. It belongs to the Q12 series and offers a degree of protection rated at IP67. The supply voltage required for operation is between 10Vdc and 30Vdc, with nominal values at 12Vdc and 24Vdc. Its rectangular shape is designed for easy installation, and it features a sensing distance of 15mm. The sensor emits visible red light with a wavelength of 640 nm and operates in a Dark-ON mode. It includes 1 x digital output (PNP/NPN transistor) and boasts a rapid response time of 0.7ms / 0.0007 s.
Related documents Q12RB6FF15Q5 Specs
