PVA100P6RQ W/15 Banner Electronic Components

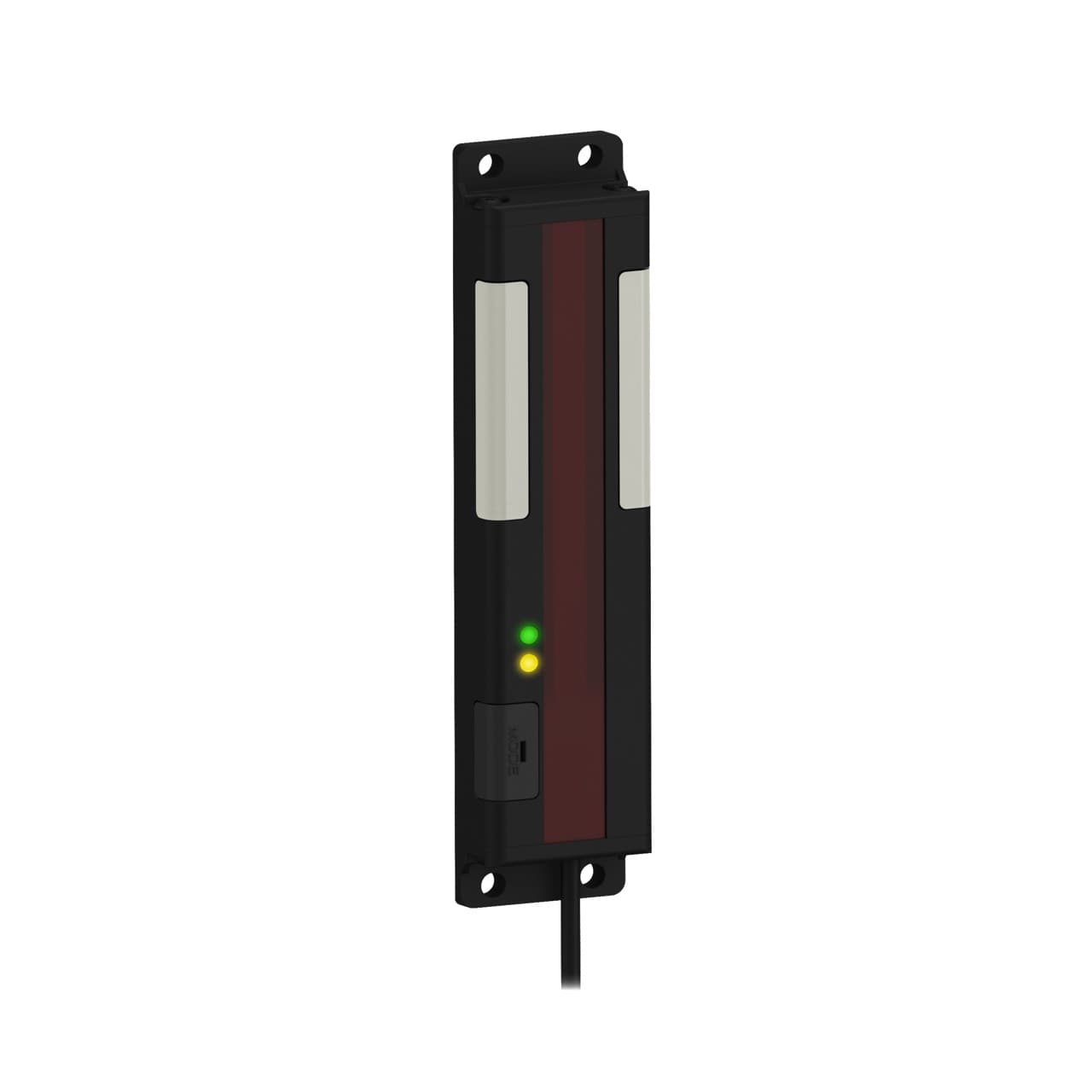

Banner PVA100P6RQ W/15 PVA Series: 100 mm Array, Receiver; Range: 2 m; Input: 12 to 30 V dc, Output: 1 PNP, Euro 15 inch Pigtail QD
Banner

Part#:PVA100P6RQ W/15

Manufacturer:Banner

Product Lifecycle:Active

Get a quick Quote!

PVA Series: 100 mm Array, Receiver; Range: 2 m; Input: 12 to 30 V dc, Output: 1 PNP, Euro 15 inch Pigtail QD

About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the PVA100P6RQ W/15 Banner price in the box on the right side or send a quick quote.

Product Details

  • Primary Housing Material
    Aluminum
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Input Type
    Bimodal (PNP/NPN)
  • NEMA Type and UL Type Rating
    NEMA 2
  • IO Link
    No
  • Cable Length (m)
    0.38
  • Mounting Thread
    No Thread
  • Max Current Color (mA)
    62
  • Physical Dimensions (LxWxH or DxH mm)
    137.8 x 30.0 x 15.0
  • Sensing Resolution (mm)
    35.0
  • Power Source
    DC
  • Number of Colors / Segments
    1
  • Supply Voltage
    12-30 V dc
  • Environmental Rating
    IP62
  • Feature: Chemical Resistant
    No
  • Actuation
    Yes
  • Color Technology
    Standard LED
  • Number of Input Pins/Conductors
    4
  • Array Length (mm)
    100.0
  • Button Operation
    Momentary
  • Power
    DC
  • Animation Option 1
    Dip-Switch Controlled
  • Maximum Sensing Distance (mm)
    2000
  • Primary Housing Color
    Black
  • Wireless
    No
  • Sensing Mode (General)
    Opposed
  • Color Option 1
    Green
  • Max Output Response Time (ms)
    20
  • Number of Beams
    5
  • Feature: Audible
    No
  • Sensing Mode (Detailed)
    Receiver
  • Product Size (mm)
    Other
  • Output Type
    PNP
  • Beam Spacing (mm)
    25.0
  • Feature: Hazardous Area
    No
  • Activation Function
    Optical
  • Connection
    Pigtail QD
  • Sensing Array Length (mm)
    100
  • Primary Window Material
    Acrylic Clear
  • Pro-Editor Compatible (Discrete)
    No
  • Housing Style
    Flat Mount - Array
  • Quick Disconnect Type
    M12 (Euro)
  • Operation
    Normally Open/Normally Closed
  • Max Op. Temperature (°C)
    50
  • Modbus RTU
    No
  • Feature: Quick Disconnect
    Yes
  • Job Light
    Green

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

Related documents PVA100P6RQ W/15 Specs

PVA100P6RQ W/15 PVA Parts Verification Array -- Datasheet-1630952134440.pdf
PVA100P6RQ W/15 PVA100-1630952134445.pdf
PVA100P6RQ W/15 PVA100-1630952134437.stp
