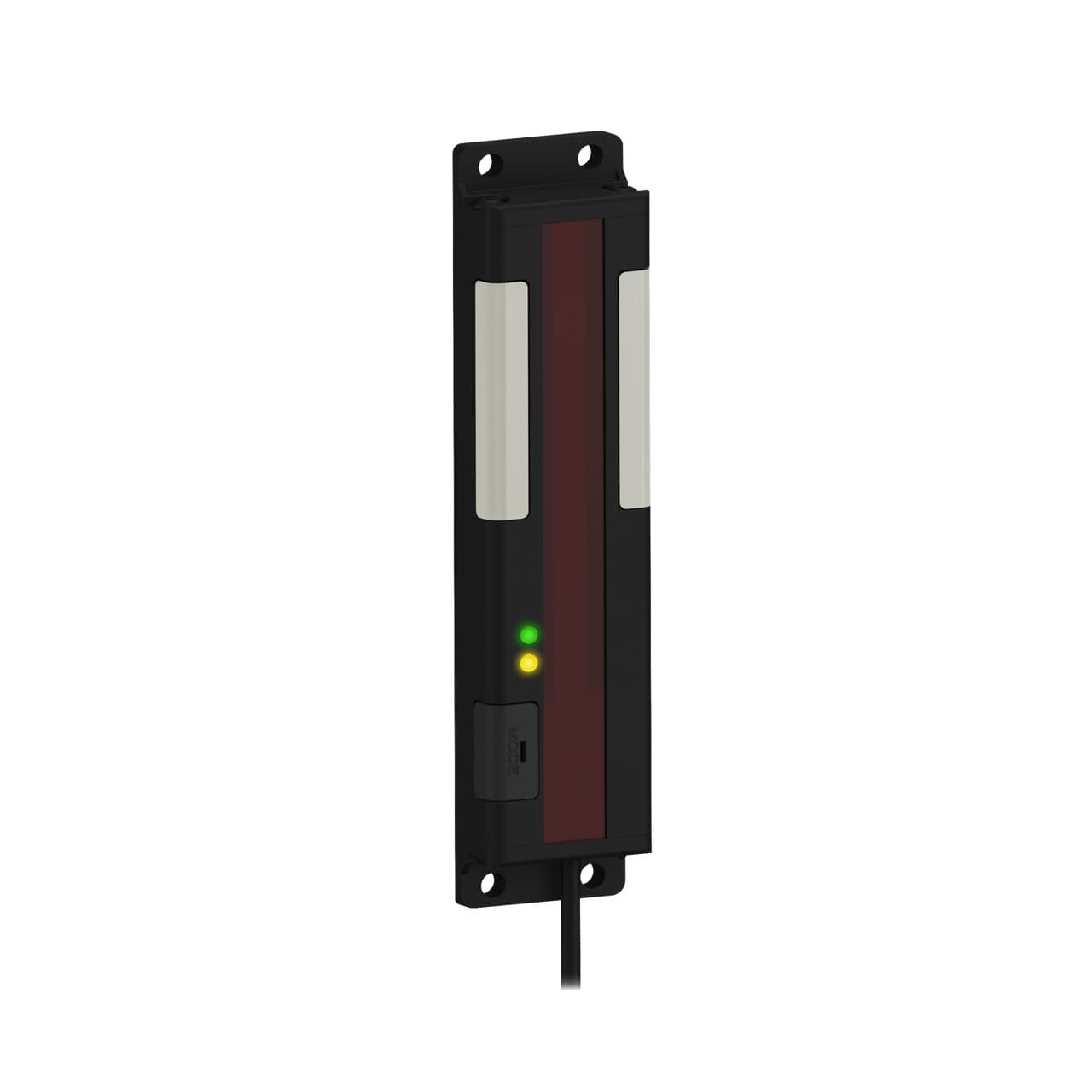

PVA100P6EQ W/15 Banner Electronic Components
Part#:PVA100P6EQ W/15
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!
PVA Series: 100 mm Array, Emitter ; Range: 2 m; Input: 12 to 30 V dc, Output: Not applicable, Euro 15 inch Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the PVA100P6EQ W/15 Banner price in the box on the right side or send a quick quote.
Product Details
- Cable Length (m) 0.38
- Color Option 1 Green
- Max Current Color (mA) 62
- Beam Spacing (mm) 25.0
- Product Size (mm) Other
- Max Output Response Time (ms) 20
- Max Op. Temperature (°C) 50
- Sensing Mode (Detailed) Emitter
- Quick Disconnect Type M12 (Euro)
- Physical Dimensions (LxWxH or DxH mm) 137.8 x 30.0 x 15.0
- NEMA Type and UL Type Rating NEMA 2
- Sensing Mode (General) Opposed
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Number of Input Pins/Conductors 4
- Number of Beams 5
- Feature: Hazardous Area No
- Power Source DC
- Mounting Thread No Thread
- Actuation Yes
- Number of Colors / Segments 1
- Maximum Sensing Distance (mm) 2000
- Sensing Resolution (mm) 35.0
- Primary Housing Material Aluminum
- Color Technology Standard LED
- Supply Voltage 12-30 V dc
- Activation Function Optical
- Animation Option 1 Dip-Switch Controlled
- Sensing Array Length (mm) 100
- Button Operation Momentary
- Feature: Chemical Resistant No
- Power DC
- Housing Style Flat Mount - Array
- Connection Pigtail QD
- Array Length (mm) 100.0
- Primary Housing Color Black
- Pro-Editor Compatible (Discrete) No
- Environmental Rating IP62
- Wireless No
- IO Link No
- Feature: Audible No
- Primary Window Material Acrylic Clear
- Job Light Green
- Input Type Bimodal (PNP/NPN)
- Modbus RTU No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents PVA100P6EQ W/15 Specs
