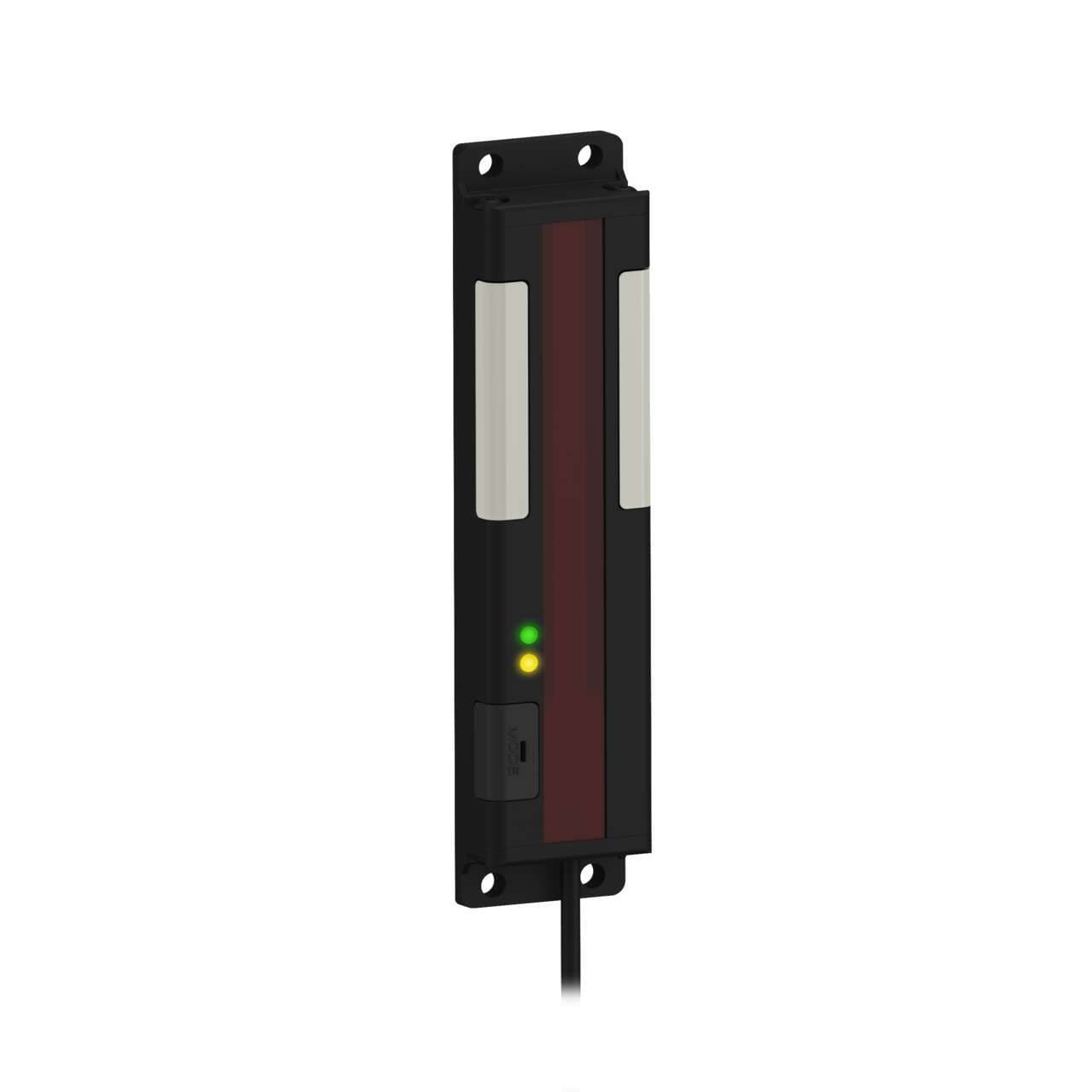

PVA100N6E Banner Optical Sensors

Name: PVA100N6E
Brand: Banner

Banner PVA100N6E PVA Series: 100 mm Array - Emitter; Range: 2 m; Input: 12-30 V dc; Output: Not Applicable; 2 m (6.5 ft) Integral Cables

Part#:PVA100N6E

Manufacturer:Banner

Alt. Part#:51925

Product Lifecycle:Active

Get a quick Quote!

PVA Series: 100 mm Array - Emitter; Range: 2 m; Input: 12-30 V dc; Output: Not Applicable; 2 m (6.5 ft) Integral Cables

About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the PVA100N6E Banner price in the box on the right side or send a quick quote.

Product Details

Weight222.3507984 g
Country Of OriginMX
Primary brand
Banner Engineering
Product series / family name
PVA
Functions
Flat-mount array optical sensor for error-proofing of bin handpicking operations - through-beam sensing emitter only
Degree of protection
IP62 NEMA 2
Supply voltage
(DC) 12-30 V
Length (mm)
(array) 100 mm
Frame color
Black
Compliant with standard(s)
CE cULus Listed
Visual position indicator
green LED (power ON) red LED (frequency selected)
Distance
(beam spacing) 25mm
Supply voltage (DC)
12-30Vdc (12Vdc-24Vdc nom.)
Connection type
Pre-wired bare end flying leads
Ambient air temperature for operation
0...+50 °C
Main function
Sensor (Array)
Digital outputs
4 x digital outputs (12-30Vdc; NPN)
Sensing distance
2m / 2000 mm
Mounting mode
Surface Pole
Technology used in component
LED

Order code / Manufacturer SKU

51925

Net Height (mm)

(sensing height) 6.5" / 100 mm

Material

Acrylic Clear (window) Aluminum (housing)

Current consumption

62mA / 0.062 A

Light Color

Green

Length (m)

(cable) 2 m

Maximum temperature

50 °C

Cable Length (m)

0.5

Mounting Thread

No Thread

Number of Input Pins/Conductors

Beam Spacing (mm)

25.0

Feature: Chemical Resistant

Power Source

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Supply Voltage

12-30 V dc

NEMA Type and UL Type Rating

NEMA 2

IO Link

Primary Housing Material

Aluminum

Color Option 1

Green

Physical Dimensions (LxWxH or DxH mm)

137.8 x 30.0 x 15.0

Feature: Audible

Sensing Mode (General)

Opposed

Number of Colors / Segments

Input Type

Bimodal (PNP/NPN)

Environmental Rating

IP62

Modbus RTU

Activation Function

Optical

Connection

Cable

Sensing Array Length (mm)

100

Button Operation

Momentary

Pro-Editor Compatible (Discrete)

Sensing Resolution (mm)

35.0

Job Light

Green

Sensing Mode (Detailed)

Emitter

Animation Option 1

Dip-Switch Controlled

Number of Beams

Primary Window Material

Acrylic Clear

Actuation

Yes

Product Size (mm)

Other

Max Output Response Time (ms)

Primary Housing Color

Black

Wireless

Housing Style

Flat Mount - Array

Color Technology

Standard LED

Maximum Sensing Distance (mm)

2000

Max Op. Temperature (°C)

Power

Max Current Color (mA)

Array Length (mm)

100.0

Feature: Hazardous Area

Feature: Quick Disconnect

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

PVA100N6E Description

Banner Engineering PVA100N6E is a photo-electric array sensor designed for a variety of applications requiring precise detection. This sensor features an emitter and receiver pair with a sensing distance of up to 2 meters and operates within an ambient air temperature of up to +50°C. It has a rectangular shape with dimensions of 100mm in array length, 30mm in width, and 138mm in depth, and is constructed with an aluminium housing and an acrylic window for durability. The PVA100N6E is pre-wired with a 2m cable terminated with bare end flying leads for easy installation and has a net height of 15mm. It offers a degree of protection rated at IP62 NEMA 2, ensuring protection against dust and water ingress. The sensor operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal voltage of 24Vdc, and has a current consumption of 62mA. It features a green light color with a 25mm beam spacing/pitch for clear visibility. The operating modes include Light-ON, Dark-ON, Normally Open (NO), and Normally Closed (NC), along with 1 x digital output (NPN transistor) for versatile application use.

Related documents PVA100N6E Specs

PVA100N6E 52088.pdf
