PVA100P6EQ-54782 Banner Optical Sensors
Part#:PVA100P6EQ-54782
Manufacturer:Banner
Alt. Part#:54782
Product Lifecycle:Active
Get a quick Quote!
PVA Series: 100 mm Array - Emitter; Range: 2 m; Input: 12-30 V dc; Output: Not Applicable; 150 mm (6 in) 4-pin M12 PVC Pigtail QD
About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the PVA100P6EQ-54782 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight199.58048 g
- Country Of OriginMX
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
PVA100P6EQ-54782 Description

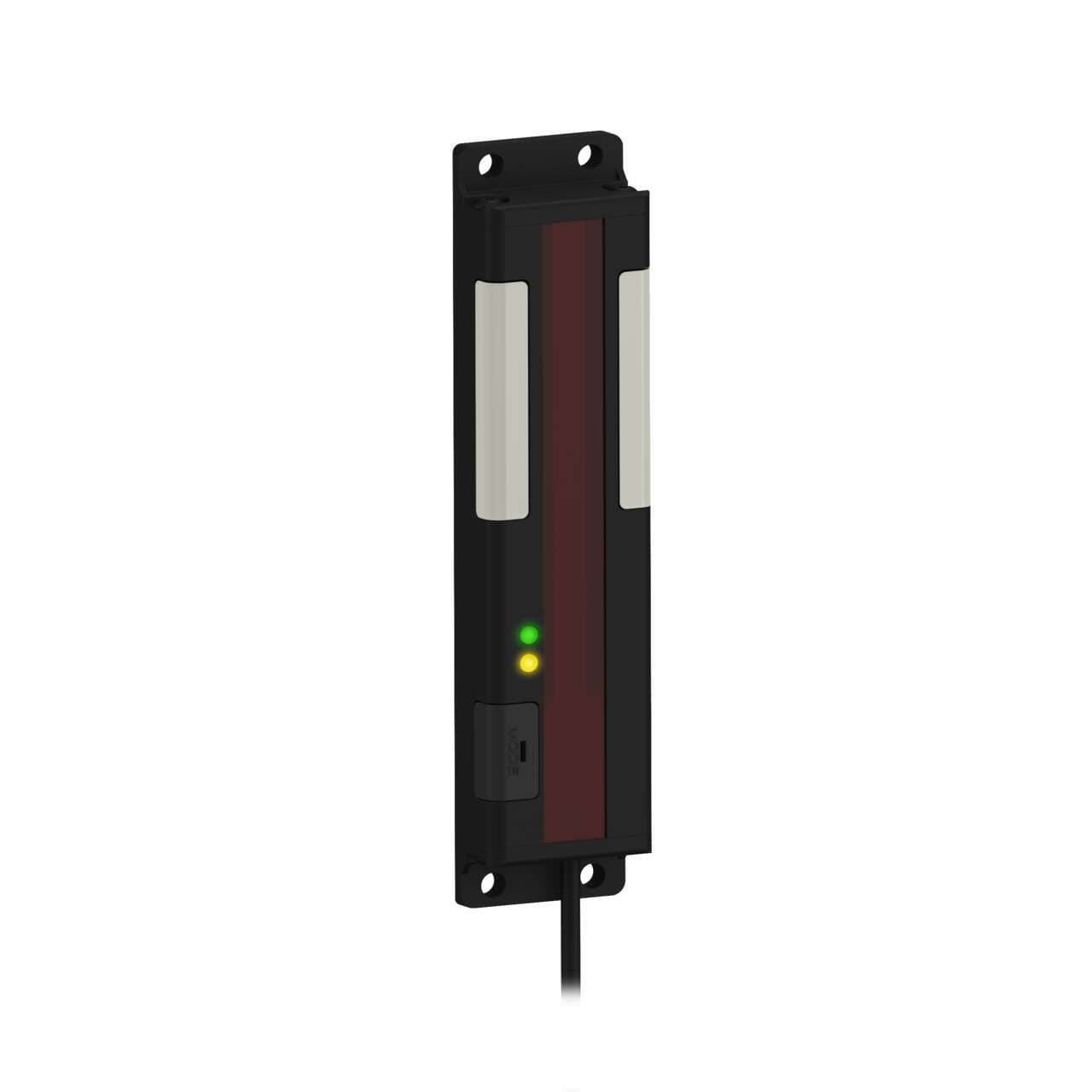

Banner Engineering PVA100P6EQ-54782 is a photo-electric array sensor designed for a variety of applications. This emitter-alone unit operates within an ambient air temperature of up to +50°C and features a robust design with an armoured cable sheath. It comes pre-wired with a 2m pigtail that terminates with a 4-pin M12 connector, facilitating easy installation. The sensor's dimensions include a 100mm array length, a net height of 15mm, a net width of 30mm, and a net depth of 138mm, housed in an aluminium casing with an acrylic window for durability. It offers a sensing distance of up to 2m (2000mm) with a green light color and a 25mm beam spacing/pitch. The PVA100P6EQ-54782 is equipped with one digital output (PNP transistor) and has a current consumption of 62mA (0.062 A). It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage. The sensor is rated with a degree of protection of IP62 NEMA 2, indicating its capability to withstand certain environmental conditions.
Related documents PVA100P6EQ-54782 Specs
1-year warranty
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
By purchasing this item, you agree to the Terms & Conditions
Quotebeam is NOT an authorized distributor of Banner
Shipping and Delivery Worldwide
calculate costs and time
Secure Payment Processing
with money back guarantee
1 year warranty
on all parts
Responsive Customer Support
we're here to help!
Need more details?
Feel free to chat with us or check our FAQ
Banner Disclaimer:
The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Banner Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Banner, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
