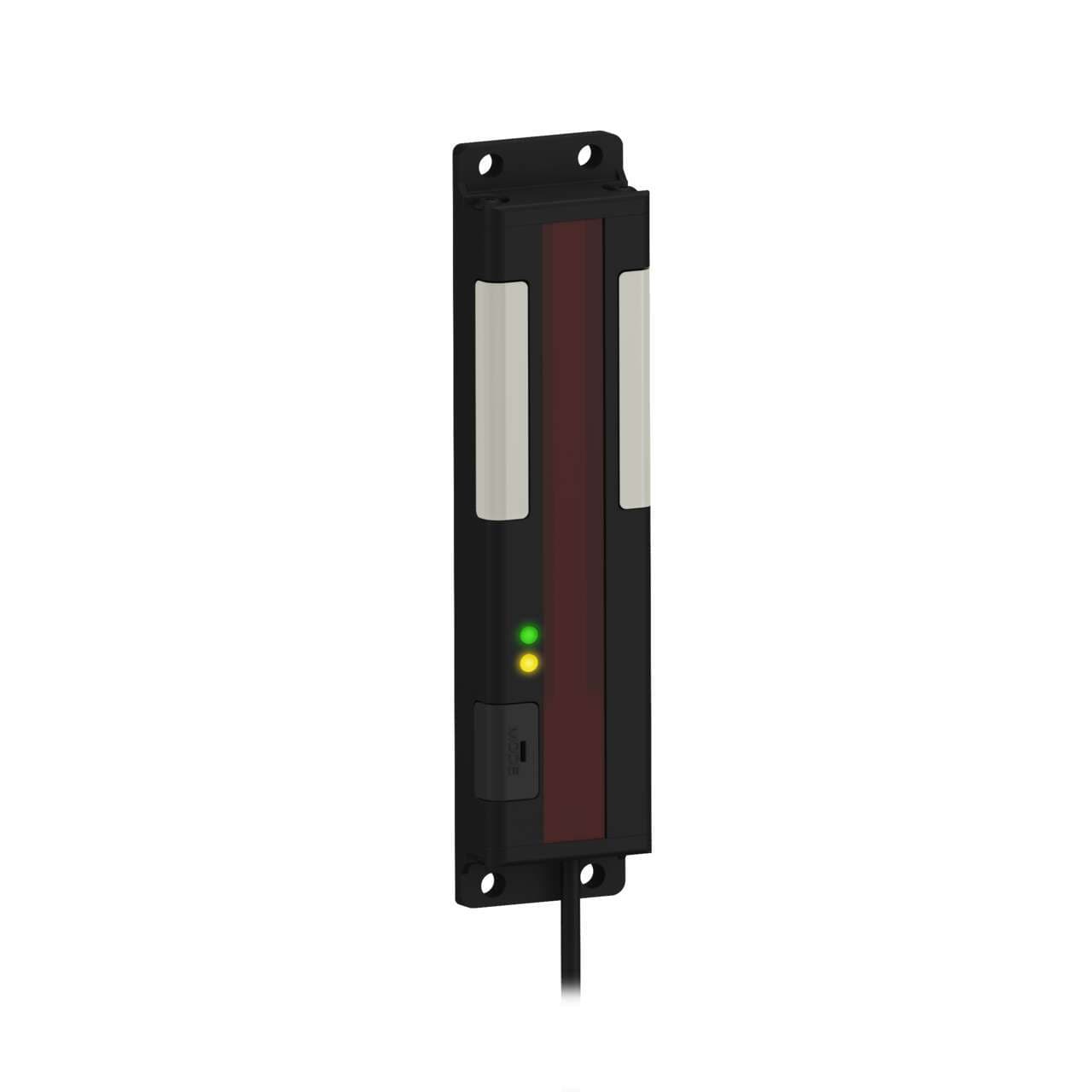

PVA100N6EQ Banner Optical Sensors
Part#:PVA100N6EQ
Manufacturer:Banner
Alt. Part#:51929
Product Lifecycle:Active
Get a quick Quote!
PVA Series: 100 mm Array - Emitter; Range: 2 m; Input: 12-30 V dc; Output: Not Applicable; M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the PVA100N6EQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight217.72416 g
- Country Of OriginMX
- Product series / family name PVA
- Digital outputs 4 x digital outputs (12-30Vdc; NPN)
- Material Acrylic Clear (window) Aluminum (housing)
- Technology used in component LED
- Light Color Green
- Length (mm) (array) 100 mm
- Primary brand Banner Engineering
- Functions Flat-mount array optical sensor for error-proofing of bin handpicking operations - through-beam sensing emitter only
- Frame color Black
- Compliant with standard(s) CE cULus Listed
- Sensing distance 2m / 2000 mm
- Connection type Pre-wired (pigtail) 4-pin M12 connector
- Visual position indicator green LED (power ON) red LED (frequency selected)
- Current consumption 62mA / 0.062 A
- Supply voltage (DC) 12-30Vdc (12Vdc-24Vdc nom.)
- Main function Sensor (Array)
- Mounting mode Surface Pole
- Degree of protection IP62 NEMA 2
- Ambient air temperature for operation 0...+50 °C
- Order code / Manufacturer SKU 51929
- Net Height (mm) (sensing height) 6.5" / 100 mm
- Maximum temperature 50 °C
- Supply voltage (DC) 12-30 V
- Length (m) (cable) 2 m
- Distance (beam spacing) 25mm
- Housing Style Flat Mount - Array
- Product Size (mm) Other
- Maximum Sensing Distance (mm) 2000
- Primary Window Material Acrylic Clear
- Actuation Yes
- Color Technology Standard LED
- Quick Disconnect Type M12 (Euro)
- Physical Dimensions (LxWxH or DxH mm) 137.8 x 30.0 x 15.0
- Sensing Resolution (mm) 35.0
- Power DC
- Number of Colors / Segments 1
- Number of Input Pins/Conductors 4
- Number of Beams 5
- IO Link No
- Sensing Array Length (mm) 100
- Feature: Hazardous Area No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Mounting Thread No Thread
- Sensing Mode (Detailed) Emitter
- Input Type Bimodal (PNP/NPN)
- Max Op. Temperature (°C) 50
- Wireless No
- Cable Length (m) 0.5
- Animation Option 1 Dip-Switch Controlled
- Max Current Color (mA) 62
- Environmental Rating IP62
- Feature: Chemical Resistant No
- Array Length (mm) 100.0
- Primary Housing Material Aluminum
- Color Option 1 Green
- Button Operation Momentary
- Job Light Green
- Activation Function Optical
- Power Source DC
- Max Output Response Time (ms) 20
- Primary Housing Color Black
- Pro-Editor Compatible (Discrete) No
- Supply Voltage 12-30 V dc
- NEMA Type and UL Type Rating NEMA 2
- Modbus RTU No
- Sensing Mode (General) Opposed
- Connection Pigtail QD
- Beam Spacing (mm) 25.0
- Feature: Audible No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
PVA100N6EQ Description
Banner Engineering PVA100N6EQ is a photo-electric array sensor designed for industrial applications, featuring a receiver alone configuration. It operates within an ambient air temperature of up to +50°C and has a net height of 15 mm. This sensor is pre-wired with a 2m cable that terminates with bare end flying leads, ensuring easy integration into existing systems. The device spans 100mm in array length and is protected by an IP62 NEMA 2 rated aluminium housing with an acrylic window, making it suitable for various environments. It requires a supply voltage of 12Vdc to 30Vdc, with 24Vdc being nominal. The PVA100N6EQ has a rectangular shape, measures 30 mm in width and 138 mm in depth, and offers a sensing distance of up to 2m with a 25mm beam spacing/pitch. It emits green light for detection purposes. The operating modes include NO (Normally Open) and NC (Normally Closed), and it features 1 x digital output (NPN transistor) with a current consumption of 62mA / 0.062 A.
